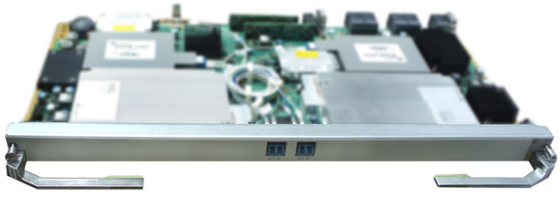

| TNU1N302: | 2 X 40 Gbit/s Line Service Processing Board | Port: | Shenzhen |
|---|
The N302 board supports electrical cross-connections, OTN interfaces, and ESC communication.
The N302 board can work in either line mode or relay mode. Table 1 and Table 2 describe the functions and features of the board.
| Function and Feature | Description | ||||
|---|---|---|---|---|---|
| Basic functions |
NOTE: TNV1N302G01 does not support OTU3e on the WDM side and ODU2e on the backplane side. | ||||
| Cross-connect capabilities | Supports the cross-connection of 64 ODU0 signals, 32 ODU1 signals, 64 ODUflex signals, 8 ODU2/ODU2e signals, or 2 ODU3 signals to/from the cross-connect board. | ||||
| OTN functions |
| ||||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||||
| Tunable wavelength function | Supports tunable wavelength optical modules that provide for:
| ||||
| ESC function | Supported | ||||
| PRBS function | Supports the PRBS function on the WDM side. | ||||
| LPT function | Not supported | ||||
| FEC coding | TNV1N302T01:
TNV1N302G01:
TNU1N302T01:
NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||||
| Alarms and performance events monitoring |
| ||||
| Regeneration board | The WDM-side signals from one TNV1N302T01 board can be regenerated by another TNV1N302T01/TN54NS3T01 board. The WDM-side signals from one TNU1N302 board can be regenerated by another TNU1N302/TN55NS3/TN56NS3 board. | ||||
| ALS function | Not supported | ||||
| Test frame | Not supported | ||||
| IEEE 1588v2 | Not supported | ||||
| Physical clock | Not supported | ||||
| Optical-layer ASON | Supported | ||||
| Electrical-layer ASON | Supported | ||||
| Protection scheme |
NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. Only the TNU1N302 supports intra-board 1+1 protection. | ||||
| Loopback | WDM Side Loopback | ODU2 Channel Loopback | ODU1 Channel Loopback | ODU0 Channel Loopback | ODUflex Channel Loopback |
| Supported | Supported | Supported | Supported | Supported | |
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3u IEEE 802.3z IEEE 802.3ae ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2) SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems ETSI TR 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI) SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON) ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC) ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY) ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM) | |||
| Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 | ||||
The TNV1N302G01 board cannot be used as a regeneration board.
| Function and feature | Description | ||
|---|---|---|---|
| Basic function | Electrically regenerates optical signals at an electrical REG station. | ||
| Supported service rate | OTU3: OTN service at a rate of 43.02 Gbit/s OTU3e: OTN service at a rate of 44.57 Gbit/s | ||
| OTN functions |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | Supports tunable wavelength optical modules that provide for:
| ||
| ESC function | Supported | ||
| PRBS function | Not supported | ||
| FEC coding | TNV1N302T01:
TNU1N302T01:
NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| ALS function | Not supported | ||
| Test frame | Not supported | ||
| IEEE 1588v2 | Not supported | ||
| Physical clock | Not supported | ||
| Optical-layer ASON | Supported | ||
| Electrical-layer ASON | Not supported | ||
| Protection scheme | Not supported | ||
| Loopback | Not supported | ||
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | - | |
| Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.694.1 | ||
TNV1N302T01: 3.6 kg (7.9 lb.)
TNV1N302G01: 3.3 kg (7.3 lb.)
TNU1N302: 5.5 kg (12.1 lb.)
| Board | WDM-Side Optical Module | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|---|
| TNV1N302T01 | 800 ps/nm-C Band-Tunable Wavelength-DQPSK-PIN | 148 | 163 |
| TNV1N302G01 | 40 Gbit/s Multirate-2 km | 130 | 145 |
| TNU1N302 | 60000 ps/nm-C Band-Tunable Wavelength-ePDM-BPSK | 195 | 231 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | |||
