Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNV1T402 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

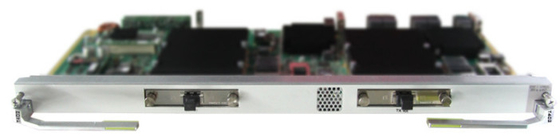

| TNV1T402: | 2 X 100 Gbit/s Tributary Service Processing Board | Port: | Shenzhen |
|---|
The T402 board supports electrical cross-connections, OTN interfaces, and ESC communication.
Table 1 describes the functions and features of the T402.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic functions | Supports the following service conversions:
| ||
| Client-side service type | 100GE: Ethernet service at a rate of 103.125 Gbit/s OTU4: OTN service at a rate of 111.81 Gbit/s NOTE: The TNV1T402C11 board only supports 100GE services on the client side. When 100GE services are received on the client side and mapped into ODUflex, the client equipment must support flow control response. | ||
| Cross-connect capabilities | Supports backplane cross-connections of two ODU4/ODUflex signals from/to the cross-connect board. NOTE: Only the TNV3T402 board supports ODUflex when receiving 100GE (MAC Transparent Mapping) services on the client side. | ||
| OTN functions |
| ||
| ESC function | Supported when the client-side service type is OTU4. NOTE: Only the TNV1T402C01 and TNV3T402 board supports the ESC function. | ||
| PRBS test function | Supported NOTE: When a TNV3T402 board receives OTU4 services, the PRBS test function is supported in both the optical port direction and the backplane direction. When the board receives 100GE services, the PRBS test function is supported only in the backplane direction. Other T402 boards support the PRBS test function only in the optical port direction and only when OTU4 services are received. | ||
| LPT function | Not supported | ||
| FEC coding | Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU4. | ||
| Alarms and performance events monitoring |
| ||
| ALS function | When the client-side service type is 100GE, the board supports the ALS function. | ||
| Test frame | When the client-side service type is 100GE, the board supports test frame. | ||
| Latency measurement | The board supports latency measurement. The bidirectional latency at the ODUk layer between two tributary boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. NOTE: This function is not supported when the client-side service type is OTU4. | ||
| IEEE 1588v2 | Only the TNV3T402 board supports this function when receiving 100GE(GFP-F) services on the client side. | ||
| ITU-T G.8275.1 | Supported only by the TNV3T402 board. | ||
| Physical clock | Bit Transparent Mapping ODU4 | Mac Transparent Mapping ODU4 | |
| Supports synchronous Ethernet transparent transmission | Supports synchronous Ethernet processing. | ||
| Electrical-layer ASON | Supported | ||
| Protection scheme |
NOTE: Supports the tributary SNCP protection, only when the client side service type is OTU4. When the client-side uses 100GBASE-SR10-100m-CXP optical module, the TNV1T402C11 board does not support client-side 1+1 protection. When the client-side uses 100GBASE-SR10-100m-CFP2 optical module, the TNV3T402 board does not support client-side 1+1 protection. | ||
| Loopback | Client side | Inloop | Supported |
| Outloop | |||
| ODUk Inloop | Supported only by the TNV3T402 board. NOTE: The board supports ODUk inloop and ODUk outloop only when non-OTN services are received and the port working mode is non-convergence. If the port working mode is set to ODUflex non-convergence mode (Any->ODUflex), the board supports ODUk inloop and ODUk outloop only when bidirectional cross-connections are configured. | ||
| ODUk Outloop | |||
Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3ba | |
Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 | ||
TNV1T402C01: 3.5 kg (7.7 lb.)
TNV1T402C11: 2.7 kg (5.9 lb.)
TNV3T402C21: 2.5 kg (5.5125 lb.)
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TNV1T402C01 | 145 | 160 |
| TNV1T402C11 | 120 | 132 |
| TNV3T402 | 90 | 94 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
