Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNV3T220 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

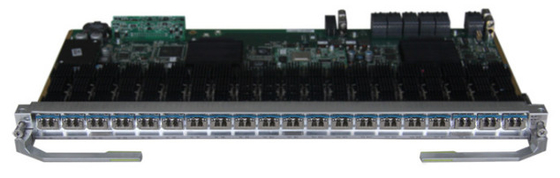

| TNV3T220: | 20 X 10 Gbit/s Tributary Service Processing Board | Port: | Shenzhen |
|---|
V3T210/V3T220/V3T230 board supports electrical cross-connections, OTN interfaces, and ESC communication.
Table 1 describes the functions and features of the V3T210/V3T220/V3T230 board.
| Function and Feature | Description | |||
|---|---|---|---|---|
| Basic function | Supports the following service conversions:
NOTE: In ODU1 convergence mode (n*Any->ODU1), the board supports GE service mapping using the GFP-T procedure. For a T210 board, n is 10. For a T220 board, n is 20. For a T230 board, n is 30. | |||
| Service encryption | Supports setting the encryption function by port. NOTE: When working in ODU1 convergence mode, these boards do not support encryption. | |||
| Client-side service type |
NOTE: When 10GE LAN services are received on the client side and mapped into ODUflex, the client equipment must support flow control response. | |||
| Cross-connect capabilities | T210: Supports backplane cross-connections of 10 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board. T220: Supports backplane cross-connections of 20 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board. T230: Supports backplane cross-connections of 30 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board. For details, see Application Overview. | |||
| OTN function |
| |||
| ESC function | Supported when the client-side service type is OTU1/OTU2/OTU2e. | |||
| PRBS test function | Supported. NOTE: A maximum of three ports on a TNV3T210/TNV3T220/TNV3T230 board support PRBS testing. When working in ODU1_ODU0 mode, the board does not support the PRBS test function in the backplane direction. The PRBS function in the optical port direction is supported only when the client-side service type is STM-1, OC–3, STM-4, OC-12, STM-16, OC-48, OTU1, STM-64, OC-192, OTU2 or OTU2e. | |||
| LPT function | Supported when the client-side service type is FE, GE or 10GE LAN. | |||
| FEC coding | Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e). | |||
| Alarms and performance events monitoring |
| |||
| ALS function | Supports the ALS function on the client side when client services are non-OTN services. | |||
| Test frame | Supported NOTE: Supports this function only in ODU1 convergence mode when receiving FE services on the client side. Supports this function when receiving GE (GFP-T) services on the client side. Supports this function when receiving 10GE LAN services on the client side and Port Mapping is set to MAC Transparent Mapping (10.7G). | |||
| Electrical-layer ASON | Supported | |||
| Latency measurement | The board supports latency measurement. The bidirectional latency at the ODUk layer between two tributary boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. NOTE: This function is not supported when the client-side service type is OTU1/OTU2/OTU2e. | |||
| IEEE 1588v2 | Supports TC mode, TC+OC mode, BC mode and OC mode. NOTE: Supports this function when receiving GE (GFP-T) services on the client side. Supports this function when receiving 10GE LAN services on the client side and Port Mapping is set to MAC Transparent Mapping (10.7G). TNV3T220/TNV3T230: Only ports 1-15 support IEEE 1588v2. The port equipped with an electrical module does not support IEEE 1588v2. | |||
| ITU-T G.8275.1 | Supported | |||
| Physical clock | GE(TTT-GMP) | 10GE LAN, Bit Transparent Mapping (11.1 G) | GE(GFP-T) | 10GE LAN, MAC Transparent Mapping (10.7 G) |
| Supports synchronous Ethernet transparent transmission | Supports synchronous Ethernet processing | |||
| Protection scheme |
NOTE: When OTU1 services are received on the client side of a TNV3T210, TNV3T220, or TNV3T230 board, client 1+1 protection is only supported in ODU1 non-convergence mode. The board supports tributary SNCP protection only when the client-side service type is OTN, SDH or SONET. Support tributary SNCP for ODU0 only when working in ODU1_ODU0 (OTU1->ODU1->ODU0) mode. | |||
| Port MTU | The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes. | |||
| Ethernet service mapping mode |
| |||
| Loopback | Channel loopback | Inloop | Supported NOTE: ODU0 channel loopbacks are supported only when the port working mode is the ODU1_ODU0 mode (OTU1->ODU1->ODU0). | |
| Outloop | ||||
| Client side | Inloop | Supported NOTE: When the board works in ODU1 convergence mode, you must configure intra-board cross-connections before loopbacks. Otherwise, the loopbacks become abnormal. NOTE: The board supports ODUk inloop and ODUk outloop only when non-OTN services are received and the port working mode is non-convergence. If the port working mode is set to ODUflex non-convergence mode (Any->ODUflex), the board supports ODUk inloop and ODUk outloop only when bidirectional cross-connections are configured. | ||
| Outloop | ||||
| ODUk Inloop | ||||
| ODUk Outloop | ||||
Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3u IEEE 802.3z ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2) SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems ETSI TR 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI) SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON) ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC) ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY) ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM) | ||
Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 | |||
Weight:
TNV3T210: 1.2 kg (2.6 lb.)
TNV3T220: 1.3 kg (2.9 lb.)
TNV3T230: 1.5 kg (3.3 lb.)
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TNV3T210 | 60 | 66 |
| TNV3T220 | 82 | 92 |
| TNV3T230 | 133 | 146 |
| a:The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
| Delivery Options | Estimated Delivery Time |
|---|---|
| DHL | 3-5 business days |
| Fedex | 3-5 business days |
| By Sea | 10-20 business days |
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.
100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.
Free Technical Support:
Our FREE Huawei Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed Huawei product: 1 Year
The Support Contacts:
If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
