Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNV1T130 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

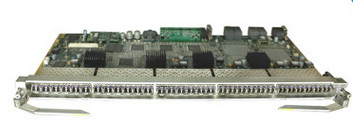

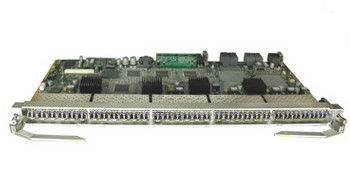

| TNV1T130: | 30 X 2.5 Gbit/s Tributary Service Processing Board | Port: | Shenzhen |
|---|
The T130 board supports electrical cross-connections, OTN interfaces, and ESC communication.
Table 1 describes the functions and features of the T130 board.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function | Supports the following service conversions:
| ||
| Client-side service type | FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals. OTU1: OTN service at a rate of 2.67 Gbit/s STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s STM-16/OC-48: SDH/SONET service at a rate of 2488.32Mbit/s FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FC400: SAN service at a rate of 4.25 Gbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s FICON4G: SAN service at a rate of 4.25 Gbit/s HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s SDI: Serial digital interface at a rate of 270 Mbit/s 3G-SDI: Video service at a rate of 2.97 Gbit/s 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s DVB-ASI: Video service at a rate of 270 Mbit/s ESCON: SAN service at a rate of 200 Mbit/s FDDI: SAN service at a rate of 125 Mbit/s NOTE: The board supports GE optical signals and electrical signals. | ||
| Cross-connect capabilities | Supports backplane cross-connections of a maximum of 60 ODU0 signals, 30 ODU1 signals, or 20 ODUflex signals from/to the cross-connect board. NOTE: Only the 3G-SDI/3G-SDIRBR/FC400/FICON4G services can be mapped into ODUflex signals. | ||
| OTN function |
| ||
| ESC function | Supported when the client-side service type is OTU1. | ||
| PRBS test function | Supports the PRBS function on the client side. NOTE: The PRBS function on the client side is supported only when the client-side service type is STM-1/OC-3, STM-4/OC-12, STM-16/OC-48, or OTU1. | ||
| LPT function | Supported when the client-side service type is FE or GE. | ||
| FEC coding | Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1. | ||
| Alarms and performance events monitoring |
| ||
| ALS function | Supports the ALS function on the client side when client services are non-OTN services. | ||
| Test frame | Supported NOTE: The board supports the test frame function only when Service Type is GE(GFP-T). | ||
| Electrical-layer ASON | Supported | ||
| Latency measurement | The board supports latency measurement. The bidirectional latency at the ODUk layer between two tributary boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. NOTE: This function is not supported when the client-side service type is OTU1. | ||
| IEEE 1588v2 | Supports the TC, TC+OC, BC, and OC modes only when the client-side service type is GE(GFP-T). NOTE:
| ||
| Physical clock | GE(GFP-T) | GE(TTT-GMP) | |
| Supports synchronous Ethernet processing | Supports synchronous Ethernet transparent transmission | ||
| Protection scheme |
NOTE: When the client-side service type is OTU1, the board does not support client 1+1 protection. When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. Supports tributary SNCP protection only when the client-side service type is OTU1, STM-16, or OC-48. | ||
| Ethernet service mapping mode | Supports GE mapping in GE(TTT-GMP) and GE(GFP-T) modes. | ||
| Loopback | Channel loopback | Inloop | Supported NOTE: ODU0 channel loopbacks are supported only when the port working mode is the ODU1_ODU0 mode (OTU1->ODU1->ODU0). |
| Outloop | |||
| Client side | Inloop | Supported NOTE: When the board works in ODU1 convergence mode, you must configure intra-board cross-connections before loopbacks. Otherwise, the loopbacks become abnormal. | |
| Outloop | |||
Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3u IEEE 802.3z ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2) SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems ETSI TR 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI) SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON) ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC) ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY) ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM) | |
Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 | ||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TNV1T130 | 145.6 | 160.2 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
