Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OSN 9800 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Type: | OSN 9800 | Port: | HONGKONG Port & Shenzhen Port |
|---|

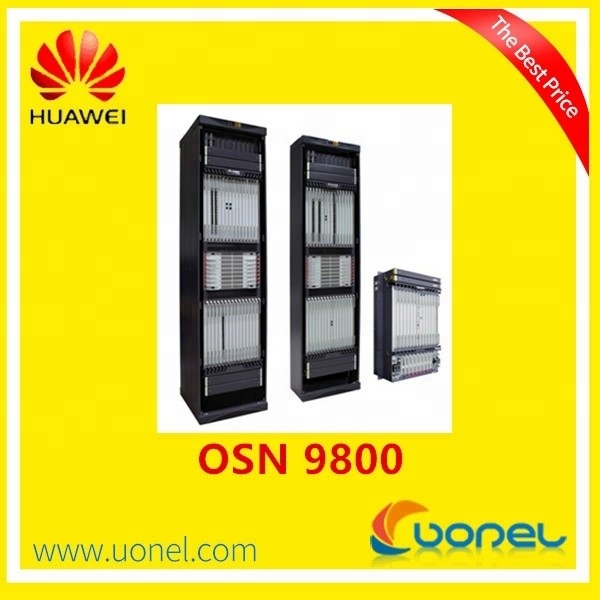

Flexible, large-capacity 10/40/100 GE Optical Switching and Networking (OSN) platform for building high-performance backbone and Metropolitan Area Networks. Total capacity up to 25.6 Tbit/s per fully configured system, scalable to over 100 Tbit/s with clustering. 400 GE per-slot capacity supports 100 GE transmission rates with ample capacity for long-haul transmission needs.
Integrated optical and electrical layer Automatically Switched Optical Network (ASON) support, Optical Transport Network (OTN), packet, and Generalized MPLS features are combined with energy-efficient electronics and advanced, dynamic cooling features to reduce OpEx
OptiX OSN 9800 enables you to create reliable, large backbone and metropolitan networks with 40 to 100 GE transmission speeds over long distances.
Ultra-large capacity OTN platform with high bandwidth, resilient 25.6 Tbit/s cross-connect capacity — scalable for cross-connect capacity up to 100 Tbit/s
Industry-leading 400 GE per slot capacity addresses 100G and future transmission requirements
Unified switching matrix based on exclusive Tbit/s switching chip implements universal OTN/VC/packet access, switching, and transmission
T-SDN design enables virtual transport services for migration of traditional WDM networks to IP-based cloud computing
| Specifications | OptiX OSN 9800 U16 | OptiX OSN 9800 U32 | OptiX OSN 9800 U64 |
| Dimensions (H x W x D) | 847 mm x 442 mm x 295 mm | 1,900 mm x 498 mm x 295 mm | 2,200 mm x 600 mm x 600 mm (with cabinet) |
| Number of Service Slots | 14 | 32 | 64 |
| Switching Capability | 5.6 Tbit/s universal switching | 12.8 Tbit/s universal switching | 25.6 Tbit/s universal switching |
| Channel Spacing | 50/100 GHz fixed grid for 40/80 wavelengths | ||
| 37.5 GHz to 400 GHz flex grid | |||
| Rate per Channel (maximum) | 100 GE, 200 GE, 400 GE, 1 TE, 2 TE | ||
| Wavelength Range | DWDM: 1,529.16 nm to 1,560.61 nm (C band, ITU-T G.694.1) | ||
| Power Supply | –48 V DC/–60 V DC | ||
