Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN13VA1 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TN13VA1: | 1-channel Variable Optical Attenuator Unit |
|---|

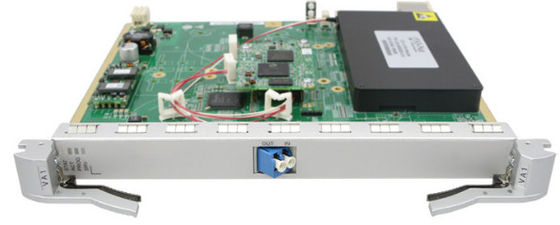

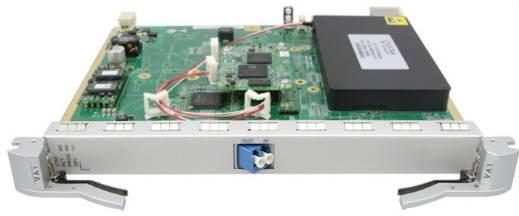

The VA1 board adjusts optical power and provides power-off protection.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function | Queries the attenuation and adjusts the optical power of one optical signal according to the control command sent by the SCC. |
| Power-off protection | Supports the power-off protection to avoid the damages to the corresponding optical receiver due to high optical power when the power supply recovers. |
| Attenuation range | The variable attenuation range is between 1.5 dB and 21.5 dB. The resolution is 0.1 dB. NOTE: The maximum inherent insertion loss of the VA1 is 1.5 dB. |
| Optical-layer ASON | Supported |
Specifications include optical specifications, dimensions, weight, and power consumption.
Table 1 lists the optical specifications of the TN11VA1 board.
| Item | Unit | Value | |
|---|---|---|---|
| IN-OUT | Inherent insertion loss | dB | <=1.5 |
| Dynamic attenuation range | dB | 20 | |
| Adjustment accuracy | dB | 1 | |
Table 2 lists the optical specifications of the TN12VA1/TN13VA1 board.
| Item | Unit | Value | |
|---|---|---|---|
| IN-OUT | Inherent insertion loss | dB | <=1.5 |
| Dynamic attenuation range | dB | 20 | |
| Adjustment accuracy | dB | 1 (attenuation<=10dB) 1.5 (attenuation<=15dB) 1.8 (attenuation>15dB) | |
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11VA1/TN12VA1 | 6.5 | 7.2 |
| TN13VA1 | 6.0 | 6.6 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
