Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN11QCP01 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Type: | Fiber Identifier | TN11QCP01: | Supports The Single-mode Optical Module. |
|---|---|---|---|
| Port: | Shenzhen |

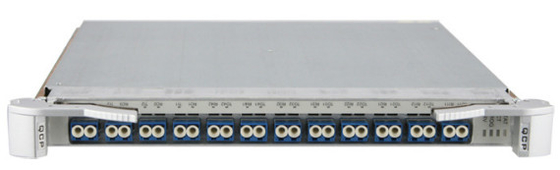

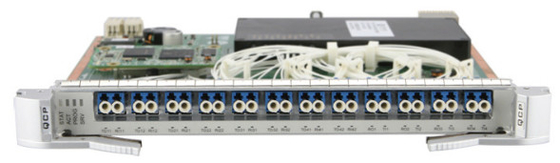

The QCP board provides intra-board 1+1 protection and client 1+1 protection.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function |
|
| Protection mechanism | Dual-fed and selective receiving. (At the transmit end, the protected signal is dually fed to the working and protection paths. At the receive end, the working or protection signal is selected if it has the higher power level.) |
| Optical-layer ASON | Supported |
Specifications include optical specifications, dimensions, weight, and power consumption.
| Interface | Item | Unit | Value | |
|---|---|---|---|---|
| TIx-TOx1/TOx2(x=1 to 4) | Insertion loss at the transmit end | Single-mode | dB | <=4 |
| RIx1/RIx2-ROx(x=1 to 4) | Insertion loss at the receive end | Single-mode | dB | <=1.5 |
| Range of the input optical power | Single-mode | dBm | -35 to 20 | |
| Operating wavelength range | Single-mode | nm | 1270 to 1350, 1528 to 1567 | |
| Multi-mode | - | |||
| Switching threshold of optical power difference | dB | 5 | ||
| Range of the alarm threshold for the optical power difference | dB | 3 to 8 | ||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11QCP | 6.2 | 6.8 |
| a:The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
