Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN12OLP01 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TN12OLP01: | Supports Single-mode Optical Module | Port: | Shenzhen |
|---|

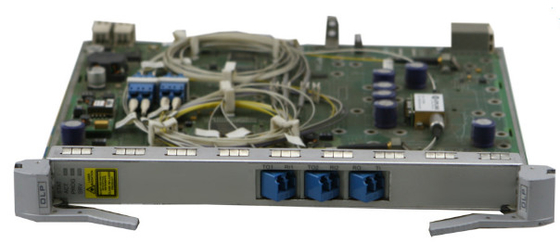

The OLP board provides optical line protection, intra-board 1+1 protection and client-side 1+1 protection.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function | Provides the optical line protection to ensure the normal receiving of signals when the line fiber fails. Provides intra-board 1+1 protection to protect the services of the OTU that has no dual-fed and selective receiving function. Provides client-side 1+1 protection, making use of a working OTU and a protection OTU to protect the client-side services. |
| Protection mechanism | Dual-fed and selective receiving. (At the transmit end, the protected signal is dually fed to the working and protection paths. At the receive end, the working or protection signal is selected if it has the higher power level.) |
| Optical-layer ASON | Supported |
Specifications include optical specifications, dimensions, weight, and power consumption.
| Interface | Item | Unit | Value | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| TN11OLP01 | TN11OLP02 | TN12OLP01 TN12OLP02a | TN12OLP03 TN12OLP06a | TN12OLP04 TN12OLP07a | TN13OLP03a | TN13OLP04a | ||||
TI-TO1 TI-TO2 | Insertion loss at the transmit end | single mode | dB | <=4 | - | <=4 | <=4 | <=4 | <=4 | <=4 |
| multimode | dB | - | <=4.5 | - | - | - | - | - | ||
RI1-RO RI2-RO | Insertion loss at the receive end | single mode | dB | <=1.5 | - | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 |
| multimode | dB | - | <=2 | - | - | - | - | - | ||
| Range of the input optical power | single mode | dBm | -35 to 7 | - | -35 to 7 | -30 to 23 | -32 to 23 | -35 to 23 | -32 to 23 | |
| multimode | dBm | - | -35 to 0 | - | - | - | - | - | ||
| Operating wavelength range | single mode | nm | 1270 to 1350, 1528 to 1567 | - | 1270 to 1350, 1528 to 1567 | 1270 to 1350, 1528 to 1567 | 1528 to 1567 | 1270 to 1350, 1528 to 1567 | 1528 to 1567 | |
| multimode | nm | - | 830 to 870 | - | - | - | - | - | ||
| Switching threshold of optical power difference | dB | 5 | 5 | 5 | 5 | 5 | 5 | 5 | ||
| Range of the alarm threshold for the optical power difference | dB | 3 to 8 | 3 to 8 | 3 to 8 | 3 to 8 | 3 to 8 | 3 to 8 | 3 to 8 | ||
NOTE:
| ||||||||||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11OLP | 6.0 | 6.6 |
| TN12OLP | 4.0 | 4.5 |
| TN13OLP03 | 7.0 | 7.7 |
| TN13OLP04 | 6.9 | 7.6 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
