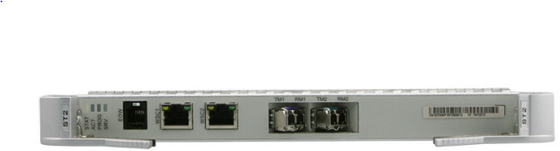

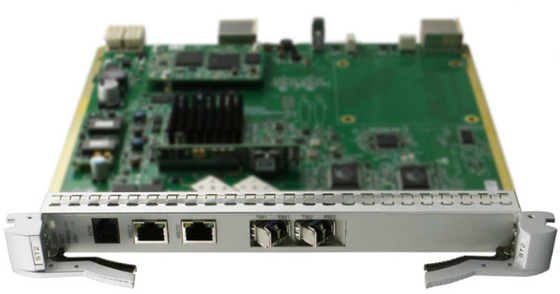

| TN11ST2: | Bidirectional Optical Supervisory Channel And Timing Transmission Unit |
|---|
The ST2 board is mainly used to process and regenerate optical supervisory signals. In addition, the ST2 board supports the IEEE 1588v2 function. In addition, the TN12ST2 board supports line fiber quality monitoring.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function | Receives, processes, and transmits two optical supervisory signals. Supports transparent transmission of two channels of FE electrical signals. Supports IEEE 1588v2 function. Supports physical clock function. Supports a maximum of 40.5 dB transmission. NOTE: When the ST2 board is used in an OptiX OSN 8800 universal platform subrack, the board can transparently transmit IEEE 1588v2 clock and physical clock signals, but the board cannot process IEEE 1588v2 clock and physical clock signals. |
| Technical features | The OSC has no limitation on the distance between two optical line amplifiers. The failure of an optical line amplifier does not affect the performance of the OSC. The ST2 board is independent of the SCC. When the SCC is not properly installed, the ST2 board can still ensure the pass-through of ECC with the two optical interfaces and monitor other stations. |
| Regeneration function | The ST2 board transmits signals from section to section. It also has the 3R function. In each regenerating station that has optical amplifiers, information can be correctly received and new supervisory signals are added. |
| Operating wavelength | When the ST2 board works with the SFIU board, the signal wavelengths of supervisory channel for RM1/TM1 is 1511 nm, and the signal wavelengths of supervisory channel for RM2/TM2 is 1491 nm. When the ST2 board works with the FIU board, the supervisory channel signal wavelength is 1511 nm. |
| Loopback | Supports outloops. |
| Optical-layer ASON | Supported |
| Line fiber quality monitoring | The line fiber quality monitoring function can be used on the NMS, and the NMS will display monitoring figures and data. The online and offline applications of line fiber quality monitoring are supported. For details, see the Fiber Doctor System in the Feature Description. The Fiber Doctor Management System Software Fee License needs to be purchased for this function. |
| eSFP | The board supports pluggable optical modules that use 1511 nm and 1491 nm wavelengths. |
Specifications include optical specifications, dimensions, weight, and power consumption.
Table 1 and Table 2 list the optical specifications of the ST2.
| Item | Unit | Value | |
|---|---|---|---|
| 150 km OSC Module | 80 km OSC Module | ||
| Signal rate | Mbit/s | 155.52 | 155.52 |
| Target distance | - | 150 km (62 mi.) | 80 km (49.7 mi.) |
| Operating wavelength range | nm | 1504.5 to 1517.5 1484.5 to 1497.5 | 1504.5 to 1517.5 1484.5 to 1497.5 |
| Launched optical power | dBm | 0.5 to 5 | -4 to 1 |
| Receiver sensitivity | dBm | ≤ -41 | ≤ -34 |
| Receiver overload | dBm | -10 | -10 |
| Item | Unit | Value | |
|---|---|---|---|
| 150 km eOTDR OSC Module | 80 km eOTDR OSC Module | ||
| Signal rate | Mbit/s | 155.52 | 155.52 |
| Target distance | - | 150 km (62 mi.) | 80 km (49.7 mi.) |
| Operating wavelength range | nm | 1504.5 to 1517.5 1484.5 to 1497.5 | 1504.5 to 1517.5 1484.5 to 1497.5 |
| Launched optical power | dBm | 0.5 to 5 | -2 to 3 |
| Receiver sensitivity | dBm | ≤ -42 | ≤ -35 |
| Receiver overload | dBm | -10 | -10 |
| OTDR Pulse-Width | ns | 100, 200, 400, 800, 4000, 10000, 20000 | |
TN11ST2:0.95 kg (2.09 lb.)
TN12ST2:1.1 kg (2.42 lb.)
TN13ST2:1 kg (2.2 lb.)
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11ST2 | 17.5 | 19.5 |
| TN12ST2 | 15.0 | 16.5 |
| TN13ST2 | 14.4 | 16.0 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
