Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN11AUX |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

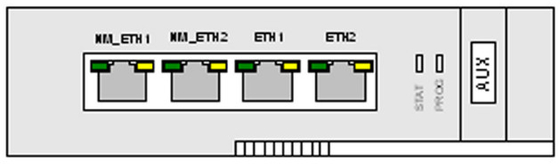

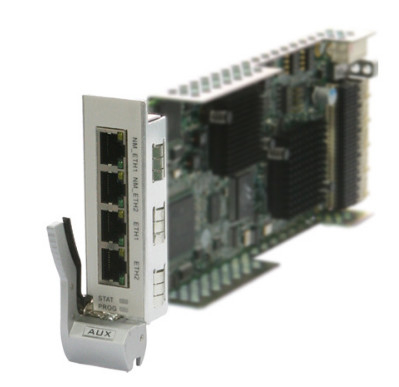

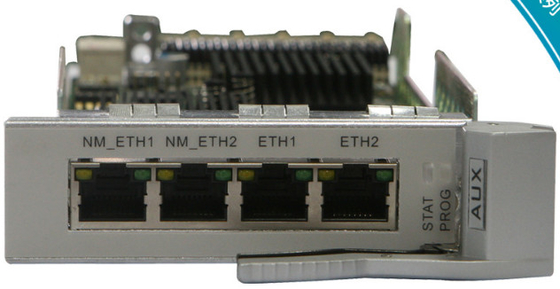

| TN11AUX: | System Auxiliary Interface Board |
|---|
This section describes the functions and features of AUX boards.
For detailed functions and features of the TN11AUX/TN12AUX board, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function | Provides the system with various auxiliary interfaces and management interfaces. |
| Interface | Provides the Ethernet communications interface and management interface. Provides the common and the emergent inter-subrack communications interfaces |
| Setting of subrack ID | Supported. |
For detailed functions and features of the TN16AUX board, refer to Table 2.
| Function and Feature | Description |
|---|---|
| Basic function | Implements communication between boards or subracks and inter-sburack management. Supports 1+1 protection. The TN16AUX collects overhead information about other boards and sends the information to the TN16XCH/TN16SCC/TN16UXCM. After processing overhead information, the TN16XCH/TN16SCC/TN16UXCM sends the processed information to the TN16AUX. Then, the TN16AUX sends the information to the other boards. NOTE: In an OptiX OSN 8800 T16 subrack, two TN16AUX boards must be configured if the IEEE 1588v2 function is required. In an OptiX OSN 8800 T16 electrical subrack, two TN16AUX boards must be configured. |
| Interface | Does not provide external interfaces. |
For detailed functions and features of the TN21/TN22AUX board, refer to Table 3.
| Function and Feature | Description |
|---|---|
| Basic function | Provides the system with backup power supplies as well as various auxiliary and management interfaces. |
| Interface | Provides the Ethernet communications interface and management interface. Provides the OAM interface for remote maintenance. Provides the alarm channel for chassis indicators. |
| Power supply backup | Provides the entire system with the 3.3 V integrated power supply backup. |
| Alarm function | Provides alarms on the failure of 3.3 V integrated backup power supply, including over-voltage and under-voltage alarms. |
For detailed functions and features of the TN51AUX board, refer to Table 4.
| Function and Feature | Description |
|---|---|
| Basic function | Implements communications between boards or subracks. |
| Interface | Does not provide external interfaces. |
For detailed functions and features of the TN52AUX board, refer to Table 5.
| Function and Feature | Description |
|---|---|
| Basic function | Implements communications between boards or subracks, and supports 1+1 protection. NOTE: The TN52AUX board supports 1+1 protection only when it is used in an enhanced OptiX OSN 8800 T64 or an enhanced OptiX OSN 8800 T32 subrack. |
| Interface | Does not provide external interfaces. |
Specifications include dimensions, weight, and power consumption.
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11AUX | 12.0 | 17.0 |
| TN12AUX | 9.0 | 13.0 |
| TN16AUX | 16.5 | 19.2 |
| TN21AUX | 11.7 | 13.0 |
| TN22AUX | 15.0 | 17.0 |
| TN51AUX | 17.5 | 19.0 |
| TN52AUX | 15.0 | 20.0 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
