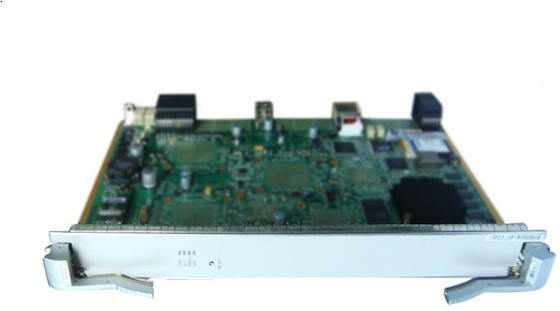

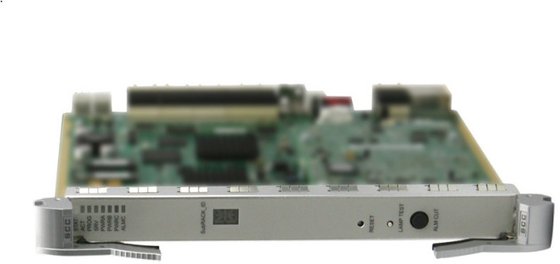

OptiX OSN 8800 TNK2SCC system control and communication board-- OSN 8800

Name: OptiX OSN 8800 TNK2SCC system control and communication board-- OSN 8800
Brand: Huawei
SKU: TNK2SCC
Availability: InStock
ISBN: 14070985

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	TNK2SCC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

TNK2SCC:	System Control And Communication Board

Functions and Features

The SCC board is used for DCC communication, subrack cascading, power supply backup and clock.

Table 1 shows the detailed functions and features of the TN11SCC/TN51SCC/TN52SCC/TNK2SCC board.

Table 2 shows the detailed functions and features of the TN16SCC.

Table 3 shows the detailed functions and features of the TN22SCC/TN23SCC board.

Table 1 Functions and features of the TN11SCC/TN51SCC/TN52SCC/TNK2SCC board

Function and Feature	Description
Basic function	Accomplishes the service grooming, configuration management and alarm output of a subrack. Supports the backup of the NE data. When the NE data changes, the real-time database backup function immediately saves the changed configuration data into the storage medium to ensure that no configuration data is lost after the NE is reset (cold) or powered off. This improves the reliability of the NE. Supports the function of the CF card to back up the database. The NE data (except NE IP, NE ID, Gateway ID, and Node ID) and the board software are backed up to the CF card. Backing up data to the CF means that you do not need to reconfigure the NE after replacing the SCC.
DCN communication	Supports interconnection and communication between NEs through IP over DCC, OSI over DCC, or HWECC.
Active/Standby backup	Supports active/standby backup: There are two SCCs in the system that can provide 1+1 hot backup. If the active board fails, the standby board automatically becomes active.
Clock function	Provides clock source for the system communications.
Subrack cascading	Supports subrack cascading. The SCC accomplishes different functions based on the mode (master or slave) of the subrack in which it is installed. The SCC in a slave subrack processes the overhead bytes, handles alarms and manages the configuration inside the subrack. The SCC in a master subrack performs the same functions as the SCC in the slave subrack, and also processes overhead bytes and handles the alarms of all its slave subracks. The SCC in the master subrack connects to the network management system (NM). The configuration commands are issued to the SCC of a slave subrack through the SCC in the master subrack.
Optical-layer ASON	Supported
Electrical-layer ASON	Supported

Table 2 Functions and features of the TN16SCC board

Function and Feature	Description
Basic function	Accomplishes the service grooming, configuration management and alarm output of a subrack. Supports the backup of the NE data. When the NE data changes, the real-time database backup function immediately saves the changed configuration data into the storage medium to ensure that no configuration data is lost after the NE is reset (cold) or powered off. This improves the reliability of the NE. Supports the function of the CF card to back up database. The NE date (except NE IP, NE ID, Gateway ID and Node ID) and the board software are backed up to the CF card, so that the NE needs not to be re-configured after the replacement of the SCC.
DCN communication	Supports interconnection and communication between NEs through IP over DCC, OSI over DCC, or HWECCwhen used with the TN16AUX.
Active/Standby backup	Supports active/standby backup: There are two SCCs in the system that can provide 1+1 hot backup. If the active board fails, the standby board automatically becomes active.
Clock function	Basic function: Locks the reference clock source. Provides the system with ITU-T clock signals that comply with G.813- and ITU-T G.823 and frame signals. Synchronizes the time of an NE with the time of the upstream system. Clock source selection function: Traces the external clock source, service clock source, or local clock source, to provide the synchronization clock source for itself and the system. Time synchronization function: Synchronizes the time of an NE with the time of the upstream NE.
Subrack cascading	Supports subrack cascading. The SCC accomplishes different functions based on the mode (master or slave) of the subrack in which it is installed. The SCC in a slave subrack processes the overhead bytes, handles alarms and manages the configuration inside the subrack. The SCC in a master subrack performs the same functions as the SCC in the slave subrack, and also processes overhead bytes and handles the alarms of all its slave subracks. The SCC in the master subrack connects to the network management system (NM). The configuration commands are issued to the SCC of a slave subrack through the SCC in the master subrack.
Optical-layer ASON	Supported

Table 3 Functions and features of the TN22SCC/TN23SCC board

Function and Feature	Description
Basic function	Accomplishes the service grooming, configuration management and alarm output of a chassis.
DCN communication	Supports interconnection and communication between NEs through IP over DCC, OSI over DCC, or HWECC.
Active/standby backup	Supported: In DC-powered systems, the two SCCs are used to provide 1+1 hot backup. If the active SCC fails, the standby SCC becomes active automatically. NOTE: Active/standby backup configuration is not supported in AC-powered systems.
Clock function	Provides clock source for the system communications.
Optical-layer ASON	Not supported
Electrical-layer ASON	Not supported

SCC Specifications

Specifications include dimensions, weight, and power consumption.

Mechanical Specifications

Dimensions of front panel:

TN11SCC: 25.4 mm (W) x 220 mm (D) x 264.6 mm (H) or 1.0 in. (W) x 8.7 in. (D) x 10.4 in. (H)
TN16SCC: 37.6 mm (W) x 220 mm x (D) 350.3 mm (H) or 2.1 in. (W) x 8.7 in. (D) x 13.8 in. (H)
TN22SCC/TN23SCC: 25.4 mm (W) x 220 mm (D) ox 118.9 mm (H) or 1.0 in. (W) x 8.7 in. (D) x 4.7 in. (H)
TN51SCC: 25.4 mm (W) x 220 mm (D) x 264.6 mm (H) or 1.0 in. (W) x 8.7 in. (D) x 10.4 in. (H)
TN52SCC: 25.4 mm (W) x 220 mm (D) x 264.6 mm (H) or 1.0 in. (W) x 8.7 in. (D) x 10.4 in. (H)
TNK2SCC: 76.2 mm (W) x 220 mm (D) x 110.0 mm (H) or 3.0 in. (W) x 8.7 in. (D) x 4.4 in. (H)

Weight:

TN11SCC: 1.2 kg (2.6 lb.)
TN16SCC: 1.3 kg (2.8 lb.)
TN22SCC/TN23SCC: 0.5 kg (1.1 lb.)
TN51SCC: 1.2 kg (2.6 lb.)
TN52SCC: 1.0 kg (2.2 lb.)
TNK2SCC: 0.9 kg (2.0 lb.)

Power Consumption

Board	Typical Power Consumption (W)	Maximum Power Consumption^a (W)
TN11SCC	27.0	30.0
TN16SCC	32.0	35.0
TN22SCC	10.0	13.0
TN23SCC	10.0	13.0
TN51SCC	18.0	20.0
TN52SCC	23.0	25.1
TNK2SCC	26.7	29.3
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.
