Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN52XCH |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

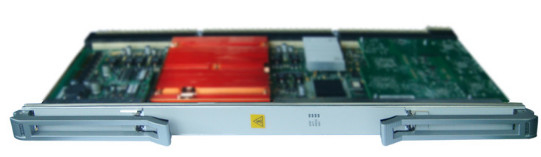

| TN52XCH: | OptiX OSN 8800 T32 Centralized Cross Connect Board |
|---|
The XCH board is mainly used to cross-connect services at the electrical layer.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function | Implements grooming of services. |
| Cross-connect function | Implements non-congestion full cross-connection of 1.28 Tbit/s ODUk (k = 0, 1, 2, 2e, 3 or flex)/VC-4 signals. |
| Protection scheme | Supports cross-connection 1+1 protection and provides 1+1 hot backup. Supports warm backup. |
| Switching mode | Supports the manual switching and auto switching. Supports the non-revertive switching. |
| Electrical-layer ASON | Supported |
Specifications include dimensions, weight, and power consumption.
| Board | Power Consumption at Warm Backup (Room Temperature) (W) | Power Consumption at Warm Backup (High Temperature)a (W) | Typical Power Consumption at Room Temperature (W) | Maximum Power Consumptiona (W) |
|---|---|---|---|---|
| TN52XCH01 | 65 | 72 | 243 - 3.6 x (32 - n) | 267.3 - 3.6 x (32 - n) |
| TN52XCH02 | 43 | 47.3 | 101 - 1.12 x (32 - n) | 111 - 1.12 x (32 - n) |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. NOTE: "n" is equal to the total number of tributary, line, and PID boards housed in a subrack. | ||||
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
| Delivery Options | Estimated Delivery Time |
|---|---|
| DHL | 3-5 business days |
| Fedex | 3-5 business days |
| By Sea | 10-20 business days |
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.
100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.
Free Technical Support:
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed product: 1 Year
The Support Contacts:
If your products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.
Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
