Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN11SRAU01 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

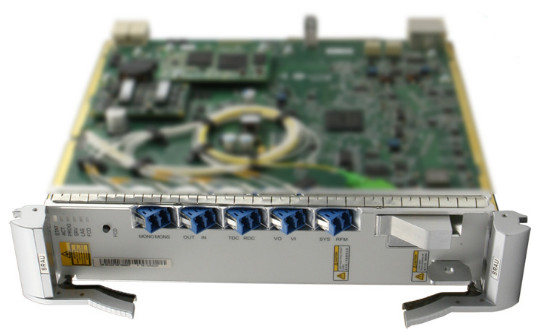

| TN11SRAU01: | Super C-band Backward Raman And Erbium Doped Fiber Optical Amplifier |
|---|
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function |
|
| Gain adjustment | Users can separately configure the gain adjustment point for the Raman amplifier and EDFA using the NMS. The SRAU continuously adjusts the gain continuously based on the input optical power:
|
| Online optical performance monitoring | Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the signal power performance without affecting traffic. |
| Working mode | The Raman amplifier module supports the gain locking, maximum gain, and power locking modes. The EDFA module supports the gain locking and power locking modes. |
| Transient control function | The EDFA inside the board has the transient control function. When channels are added or dropped, the board can suppress the fluctuation of the optical power in the path so as to implement the smooth upgrading and expansion. |
| Alarms and performance events monitoring |
|
| Line fiber quality monitoring function | The line fiber quality monitoring function can be used on the U2000. Monitoring figures and data are displayed on the U2000. For details, see the Fiber Doctor System in the Feature Description. The Fiber Doctor Management System Software Fee License needs to be purchased for this function. |

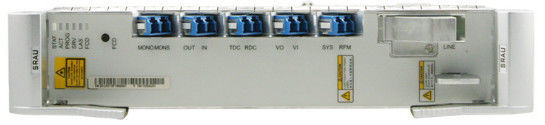

| FCD function | The FCD button and indicator are provided. You can press the FCD button on the front panel to trigger FCD. The detection process and results can be identified by the FCD indicator blinking frequency and indicator status. For details, see Front Panel. |
| Safe turn-on of the Raman laser | When the Raman laser is turned on, the OTDR meter function is automatically enabled to detect fiber connections and therefore ensure that the laser is properly started, avoiding fiber burning due to inappropriate fiber connections. If the Raman laser fails to be turned on, the line fiber quality monitoring function can be used to further identify fault points. |
| Quick shutdown of the Raman laser | The quick shutdown of the Raman laser is supported. When fiber removal or fiber cut occurs within 500 m around the site where the board housing the Raman laser is located, the pump light of the Raman laser can be shut down within 100 ms. |
| Optical-layer ASON | Supported |
| NOTE: When the SRAU board is connected to an ERPC or ROP board, the line fiber quality monitoring, FCD, safe Raman laser turn-on, and quick Raman laser shutdown functions cannot be normally used. In this case, you must disable the safe Raman laser turn-on and quick Raman laser shutdown functions on the NMS. If you have used the line fiber quality monitoring or FCD function, ignore the monitoring or detection results of the function. | |
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11SRAU | 31 | 57 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
