Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN13OAU103 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TN13OAU103: | Gain Range: 24 DB To 36 DB |
|---|

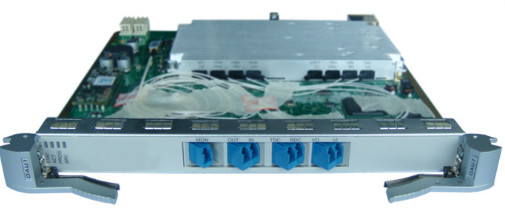

The OAU1 is mainly used for gain adjustment, online optical performance monitoring, gain lock, and transient control.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function |
|
| Gain adjustment | The OAU1 continuously adjusts the gain continuously based on the input optical power:
NOTE: OAU1 Specifications only provides the value of nominal gain. Actual gain includes the noise, and the value is bigger than that of nominal gain. |

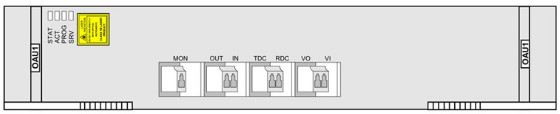

| Online optical performance monitoring | Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic. |
| Gain lock function | The EDFA inside the board has the gain lock function. Adding or dropping one or more channels or optical signal fluctuation does not affect the signal gain of other channels. |
| Working mode | Supports the gain locking and power locking modes.
|
| Transient control function | The EDFA inside the board has the transient control function. When channels are added or dropped, the board can suppress the fluctuation of the optical power in the path so as to implement the smooth upgrading and expansion. |
| Alarms and performance events monitoring |
|
| Optical-layer ASON | Supported NOTE: The TN11OAU1 board does not support the setting of Equalization Based OD for Optical Signal-Wavelength Commissioning. |
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11OAU101 | 18.0 | 24.0 |
| TN11OAU102 | 14.0 | 18.0 |
| TN11OAU103 | 18.0 | 24.0 |
| TN11OAU105 | 22.0 | 29.0 |
| TN12OAU100 | 11.0 | 14.0 |
| TN12OAU101 | 12.0 | 15.0 |
| TN12OAU102 | 10.0 | 13.0 |
| TN12OAU103 | 12.0 | 15.0 |
| TN12OAU105 | 15.0 | 21.0 |
| TN13OAU101 | 12.0 | 15.0 |
| TN13OAU103 | 12.0 | 15.0 |
| TN13OAU105 | 15.0 | 21.0 |
| TN13OAU106 | 12.0 | 15.0 |
| TN13OAU107 | 15.0 | 21.0 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
