Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN11CRPC |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

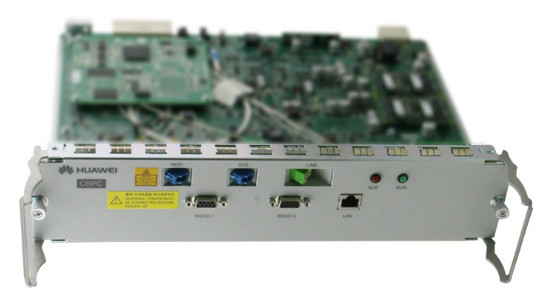

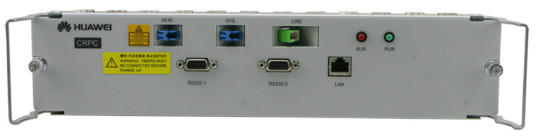

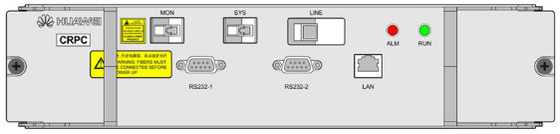

| TN11CRPC: | Case-shape Raman Pump Amplifier Unit For C Band | Port: | Shenzhen |
|---|
The main function and feature supported by the CRPC board is online optical performance monitoring.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function |
|
| Online optical performance monitoring | Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic. |
| Alarms and performance events monitoring | Detects the optical power of the pump laser, temperature control current, pump current, and back facet current. Supports return loss detection. |
| Working mode | Supports the power locking modes. |
| Optical-layer ASON | Supported NOTE: The CRPC board does not support the setting of Equalization Based OD for Optical Signal-Wavelength Commissioning. |
Specifications include optical specifications, weight and power consumption.
| Item | Unit | Value | |
|---|---|---|---|
| CRPC01 | CRPC03 | ||
| Pump wavelength range | nm | 1400-1500 | 1400-1500 |
| Operating wavelength range | nm | 1529-1561 | 1529-1561 |
| Maximum pump power | dBm | 28.5 | 29.5 |
| Channel gain on G.652 fiber | dB | > 10 | > 10 |
| Channel gain on G.653 fiber | dB | N/A | > 16 |
| Channel gain on LEAF fiber | dB | > 12 | N/A |
| Channel gain on TWRS fiber | dB | > 13 | N/A |
| Effective noise figure on G.652 fiber | dB | <= 0 | N/A |
| Effective noise figure on G.653 fiber | dB | N/A | N/A |
| Effective noise figure on LEAF fiber | dB | <= -1 | N/A |
| Effective noise figure on TWRS fiber | dB | <= -1.5 | N/A |
| Polarization dependence loss | dB | <= 0.5 | <= 0.5 |
| Output connector type | - | LSH/APC, LC/PC | LSH/APC, LC/PC |
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11CRPC01 | 110.0 | 121.0 |
| TN11CRPC03 | 70.0 | 77.0 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
