Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN17WSMD4 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

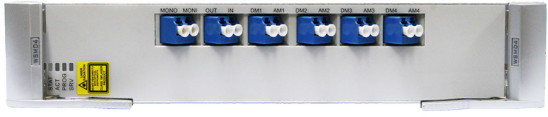

| TN17WSMD4: | 4-Port Wavelength Selective Multiplexing And Demultiplexing Board | Port: | Shenzhen |
|---|
The WSMD4 board is mainly used to broadcast services, dynamically groom wavelengths, monitor online optical performance monitoring, and monitor alarms and performance events.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function | Provides service broadcasting function, and supports the function of configurable multiplexing any wavelengths. Any node on a ring or chain network can broadcast the signals received from the main optical path as four channels of the same signals, and can input any wavelengths added locally to any port. |
| WDM specification | Supports the DWDM specification. |
| Online optical performance monitoring | Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic. |
| Alarm and performance event monitoring | Detects the optical power and reports the alarms and performance events for the board. |
| Optical power adjustment | Provides the function to adjust the optical power of any add wavelengths at the local station. |
| Optical-layer ASON | Supported by the TN11WSMD401, TN12WSMD4, TN13WSMD4 and TN17WSMD4. |
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11WSMD4 | 17 | 18.7 |
| TN12WSMD4 | 12 | 15 |
| TN13WSMD4 | 25 | 27.5 |
| TN17WSMD4 | 17 | 18.7 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
