Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN15WSMD9 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

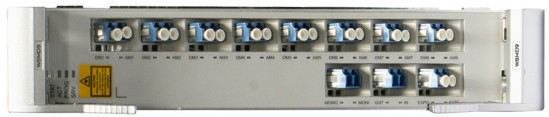

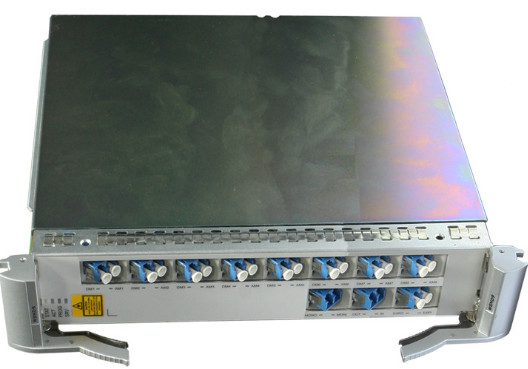

| TN15WSMD9: | 9-Port Wavelength Selective Multiplexing And Demultiplexing Board | Port: | Shenzhen |
|---|
The WSMD9 board supports service broadcast, dynamic wavelength grooming, resizable channel bandwidths, and in-service monitoring of performance parameters, performance events, and alarms.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function | Implements optical-layer service grooming for multiple wavelengths. Wavelength adding: adds any wavelengths from any directions through ports AM1 to AM8 and the EXPI port and outputs the wavelengths through the OUT port. Wavelength dropping: broadcasts the main optical channel signals received through the IN port to ports DM1 to DM8 and the EXPO port. | ||
| WDM specification | Supports the DWDM specification. | ||
| Spectrum application |
| ||
| Online optical performance monitoring | Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic. | ||
| Alarm and performance event monitoring | Detects the optical power and reports the alarms and performance events for the board. | ||
| Optical power adjustment | Provides the function to adjust the optical power of any add wavelengths at the local station. | ||
| Optical-layer ASON | Supported | ||
TN11WSMD9: 3.1 kg (6.8 lb.)
TN12WSMD9: 3.2 kg (7.05 lb.)
TN15WSMD9: 3.2 kg (7.05 lb.)
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11WSMD9 | 25 | 30 |
| TN12WSMD9 | 25 | 27.5 |
| TN15WSMD9 | 25 | 27.5 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
