Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN13FIU01 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TN13FIU01: | Fiber Interface Board | Port: | Shenzhen |
|---|

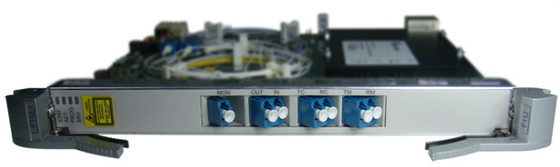

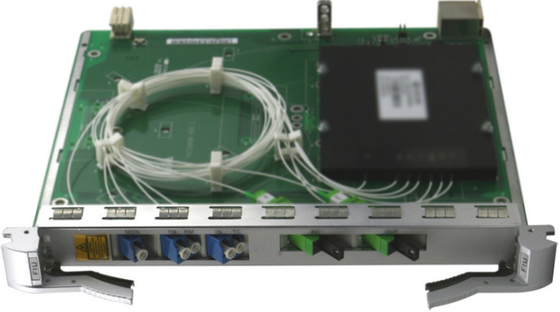

The FIU board multiplexes and demultiplexes signals, and monitors performance of optical signals.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function | Multiplexes and demultiplexes signals transmitted along the main path and optical supervisory channel. |
| Online optical performance monitoring | Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic. |
| Optical-layer ASON | Supported by the TN12FIU/TN13FIU/TN14FIU/TN15FIU/TN16FIU. |
Specifications include optical specifications, dimensions, weight, and power consumption.
| Interface | Item | Unit | Value |
|---|---|---|---|
| - | Operating wavelength range | nm | 1529-1561 |
| - | Operating wavelength range of optical supervisory channel | nm | TN11FIU/TN12FIU/TN13FIU01/TN13FIU02/TN15FIU/TN21FIU:1500-1520 TN13FIU03/TN14FIU/TN16FIU:1480-1520 |
| - | Optical return loss | dB | > 40 |
IN-TM RM-OUT | Insertion loss | dB | ≤ 1.5 |
IN-TC RC-OUT | Insertion loss | dB | ≤ 1 |
IN-TM | Isolation | dB | TN11FIU/TN12FIU/TN13FIU01/TN13FIU02/TN14FIU/TN15FIU/TN21FIU:>40 TN13FIU03/TN16FIU:≥55 |
IN-TC | Isolation | dB | TN11FIU/TN12FIU/TN13FIU01/TN13FIU02/TN14FIU/TN15FIU/TN21FIU: >12 TN13FIU03/TN16FIU: ≥40 |
| - | Polarization dependent loss | dB | < 0.2 |
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona(W) |
|---|---|---|
| TN11FIU/TN12FIU/TN14FIU | 4.2 | 4.6 |
| TN15FIU | 6.0 | 6.6 |
| TN13FIU/TN21FIU | 0.2 | 0.3 |
| TN16FIU | 6.0 | 6.5 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
