Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN55NPO2ES04 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TN55NPO2ES04: | 40km Application Without A DCM Module |
|---|

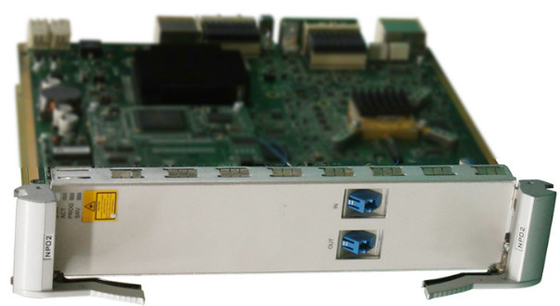

The NPO2E provides functions and features such as OTN interfaces and ESC.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function |
| ||
| Cross-connect capabilities | Supports the cross-connection of 64 channels of ODU0 or 32 channels of ODU1 or eight channels of ODU2/ODU2e signals between the NPO2E board and the cross-connect board. | ||
| OTN function |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| ESC function | Supported | ||
| PRBS test function | Supports the PRBS function on the WDM side. | ||
| LPT function | Not supported | ||
| FEC coding |
NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| IEEE 1588v2 | The NPO2E board supports one channel of IEEE 1588v2 signals. NOTE: The IEEE 1588v2 signal must be transmitted through optical port 1. | ||
| Physical clock | The NPO2E board supports this feature only when ODU0 or ODU1 signals are cross-connected from the backplane. | ||
| Optical-layer ASON | Not supported | ||
| Electrical-layer ASON | Supported | ||
| Protection scheme |
| ||
| Loopback | Channel Loopback | Inloop | Supported |
| Outloop | Supported | ||
| Client side | - | ||
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3u IEEE 802.3z IEEE 802.3ae ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2) SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems ETSI TR 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI) SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON) ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC) ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY) ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM) | |
| Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 | ||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN55NPO2E | 143 | 157.3 |
| TN54PQ2 | 1.1 | 1.2 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
