Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN12PTQX06 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

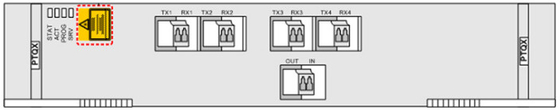

| TN12PTQX06: | 12 X OTU2 PID Board With 4 X 10G Tributary |
|---|
The PTQX provides functions and features such as OTN interfaces, ESC, and ALS.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function | PTQX converts signals as follows:
| ||
| Client-side service type | 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s | ||
| OTN function |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| ESC function | Supported | ||
| PRBS test | Supports the PRBS function on the client and WDM sides. NOTE: The PRBS function on the client side is supported only when the client-side service type is STM-64/OC-192, OTU2 or OTU2e. | ||
| LPT function | The board supports the LPT function only when the client-side service type is 10GE LAN. | ||
| FEC coding |
NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| ALS function | Supports the ALS function on the client side. | ||
| Optical-layer ASON | Not supported | ||
| Electrical-layer ASON | Not supported | ||
| Protection scheme |
| ||
| Ethernet service mapping mode |
| ||
| Ethernet port working mode |
| ||
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3ae ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic | |
| Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 | ||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN12PTQX | 93.6 | 107.6 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
