Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN54PND2 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

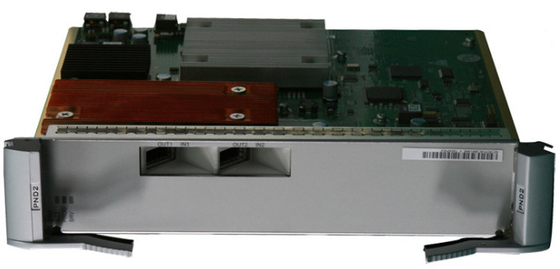

| TN54PND2: | 2 X 10G Bit/s Packet Line Board |
|---|
The PND2 board supports functions and features such as Layer 2 switching, QinQ, and Multiprotocol Label Switching (MPLS), OTN interfaces.
Table 1 describes the OTN functions and features of the PND2 board, Table 2 describes the ethernet service functions and specifications.
| Function | Description | ||
|---|---|---|---|
| Basic function | Converts packets with total bandwidth of 20 Gbit/s from the cross-connect board into two 10GE LAN electrical signals. Then the board converts the two 10GE LAN electrical signals into two standard OTU2 optical signals compliant with WDM system requirements. | ||
| OTN function |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | Supports tunable wavelength optical modules that provide for:
| ||
| ESC | Supported | ||
| PRBS function | Supports the PRBS function on the WDM side. | ||
| FEC encoding |
| ||
| Alarm and performance event monitoring |
| ||
| Loopback | Supported on the WDM side | ||
| Physical clock | Supported | ||
| IEEE 1588v2 | Not supported | ||
| Optical-layer ASON | Supported | ||
| Electrical-layer ASON | Not supported | ||
| Function | Description | ||
|---|---|---|---|
| Protection scheme | Tunnel APS | Supports the 1+1 and 1:1 protection modes defined in ITU-T G.8131(draft), RFC 6372. | |
| PW APS | Supports the 1+1 and 1:1 protection modes defined in in ITU-T G.8131(draft), RFC 6372. | ||
| LAG | Supported. Comply with IEEE 802.1ax. | ||
| MC-LAG | Supported. Comply with IEEE 802.1ax. | ||
| MSTP | Supported. Comply with IEEE 802.1q. | ||
| LPT | Supports point-to-point LPT or point-to-multipoint LPT compliant with proprietary protocols. | ||
| QoS | Diffserv | Supported, compliant with RFC 2474 and RFC 2475. | |
| Traffic classification | Complex traffic classification. The ACL rules are customized based on packet information. | ||
| Traffic policing | Committed access rate (CAR), two rate three color marker (trTCM) compliant with RFC 4115. | ||
| Congestion management | Class of service (CoS), supporting SP/WRR scheduling algorithms. | ||
| Congestion avoidance | WRED, tail dropping. | ||
| Traffic shaping | Port-based traffic shaping, queue-based traffic shaping. | ||
| IGMP Snooping | Supported | ||
| Maintenance | Ethernet OAM | Supported, compliant with IEEE 802.1ag, ITU-T Y.1731/G.8013 and ITU-T Y.1730 | |
| Ethernet port OAM | Supported, compliant with IEEE 802.3ah | ||
| MPLS-TP OAM | Supported, compliant with ITU-T G.8113.1 | ||
| RMON | Supported | ||
| Port mirroring | Supported | ||
| Synchronous Ethernet | Not supported | ||
| IEEE 1588v2 | Not supported | ||
| Inband DCN | Not supported | ||
| Ethernet data frame format | IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p | ||
| MFL | The MFL value ranges from 1518 to 9600, in bytes. The length of a permitted packet must be no less than 64 bytes and no greater than the specified MFL. | ||
| Service type | E-Line (VPWS), E-LAN (VPLS) | ||
| Service bearing medium | Port, QinQ link, PW | ||
| E-Line | PW-based service models | Port<->PW | |
| CVLAN<->PW | |||
| SVLAN<->PW | |||
| CVLAN + CVLAN Pri<->PW | |||
| SVLAN + SVLAN Pri<->PW | |||
| QinQ link-based service models | Port<->QinQ | ||
| CVLAN<->QinQ | |||
| Port-based service models | Port<->Port | ||
| CVLAN<->Port | |||
| SVLAN<->Port | |||
| UNI-UNI service models | Port<->Port | ||
| CVLAN<->CVLAN, VLAN translation supported | |||
| SVLAN<->SVLAN, VLAN translation supported | |||
| E-LAN | Bridge type | IEEE 802.1d, IEEE 802.1q | |
| Bridge learning mode | SVL | ||
| VSI tag type | C-Aware, S-Aware, T-Aware | ||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN54PND2 | 100 | 108 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
