Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN15LSXLT01 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TN15LSXLT01: | 60000 Ps/nm-C Band-Tunable Wavelength-ePDM-BPSK-PIN |
|---|

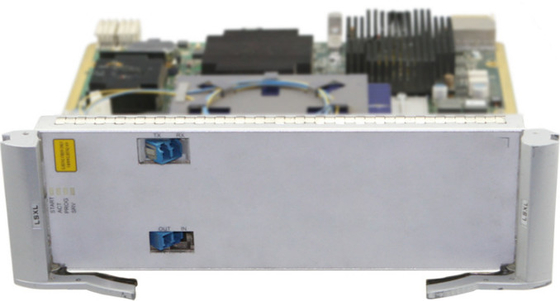

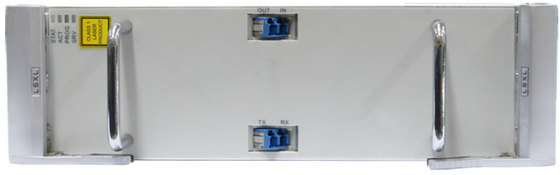

The LSXL board is mainly used to achieve wavelength tunable and to provide OTN interfaces and ESC.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function | LSXL converts signals as follows: 1x STM-256/OC-768/OTU3<->1x OTU3 | ||
| Client-side service type | STM-256/OC-768: SDH/SONET service at a rate of 39.81 Gbit/s OTU3: OTN service at a rate of 43.02 Gbit/s NOTE: Only TN12LSXL/TN15LSXL support OTU3 services. | ||
| OTN function |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function |
| ||
| ESC function | Supported NOTE: When being provisioned with the OTU3 service on the client side, the TN12LSXL board supports ESC transparent transmission, but not ESC processing. | ||
| PRBS test function |
NOTE: The PRBS function of TN12LSXL on the client side is supported only when the client-side service type is STM-256/OC-768. | ||
| LPT function | Not supported | ||
| FEC coding | TN11LSXL/TN12LSXL:
TN15LSXL:
NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| Regeneration board | The WDM-side signals of the TN11LSXL board can be regenerated by a TN11LSXLR board. The WDM-side signals of the TN12LSXL board can be regenerated by a TN12LSXLR board. The WDM-side signals of the TN15LSXL board can be regenerated by a TN55NS3/TN56NS3 board. | ||
| ALS function | Supports the ALS function on the client side when client services are non-OTN services. | ||
| Test frame | Not supported | ||
| Latency measurement | Not supported | ||
| Optical-layer ASON | Supported by the TN12LSXL/TN15LSXL. | ||
| Electrical-layer ASON | Not supported | ||
| Protection scheme | TN11LSXL:
TN12LSXL:
TN15LSXL:
| ||
| Loopback | Client side | Inloop |
|
| Outloop | |||
| WDM side | Inloop | Supported | |
| Outloop | Supported | ||
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic | |
| Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.694.1 ITU-T G.8261 ITU-T G.8262 | ||
| Board | WDM-Side Optical Module | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|---|
| TN11LSXL | 400 ps/nm-C Band-Tunable Wavelength-(D)RZ-PIN | 103.0 | 110.0 |
| 500 ps/nm-C Band-Tunable Wavelength-ODB-PIN | 98.0 | 101.0 | |
| TN12LSXL | 500 ps/nm-C Band-Tunable Wavelength-ODB-PIN | 74.0 | 81.0 |
| 500 ps/nm-C Band-Tunable Wavelength-DQPSK-PIN | 84.0 | 94.0 | |
| TN15LSXL | 60000 ps/nm-C Band-Tunable Wavelength-ePDM-BPSK-PIN | 140.0 | 155.0 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | |||
