Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN55TSC |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

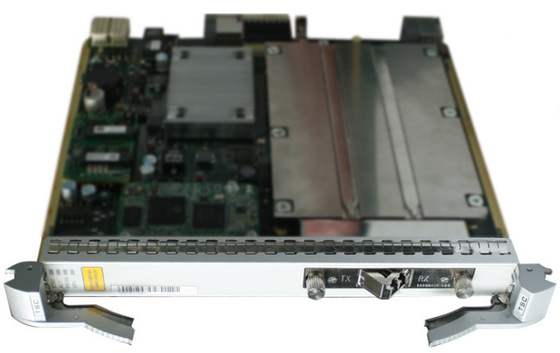

| TN55TSC: | 100G Tributary Service Processing Board | Port: | Shenzhen |
|---|
The TSC board is mainly used to achieve cross-connection at the electrical layer.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function | TSC converts signals as follows: 1 x 100GE/OTU4<->1 x ODU4 | ||
| Client-side service type | 100GE: Ethernet service at a rate of 103.125 Gbit/s OTU4: OTN service at a rate of 111.81 Gbit/s | ||
| Cross-connect capabilities | Supports the cross-connection of one channel of ODU4 signals between the TSC and the cross-connect board. | ||
| OTN function |
| ||
| ESC function | Supported when the client side service type is OTU4. | ||
| PRBS function | Supports the PRBS function on the client side, only when the client side service type is OTU4. | ||
| LPT function | Not supported | ||
| FEC coding | Supports forward error correction (FEC) on the client side that complies with ITU-T G.709, only when the service type is OTU4. | ||
| Alarm and performance event monitoring |
| ||
| ALS function | Supports the ALS function on the client side when client services are non-OTN services. | ||
| Test frame | Supported only when the client-side service type is 100GE. | ||
| Latency measurement | Not supported | ||
| IEEE 1588v2 | Not supported | ||
| Physical clock | When receiving 100GE/OTU4 services on the client side, the board supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing | ||
| Electrical-layer ASON | Supported | ||
| Protection scheme |
NOTE: Supports the tributary SNCP protection, only when the client side service type is OTU4. | ||
| Loopback | Client side | Inloop | Supported |
| Outloop | Supported | ||
| Channel Loopback | Not supported | ||
Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3ba | |
Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 ITU-T G.8261 ITU-T G.8262 | ||
Specifications include optical specifications, dimensions, weight, and power consumption.
| Board | Client-Side Fixed Optical Module | Client-Side Pluggable Optical Module |
|---|---|---|
| TN54TSC | N/A | 100G BASE-LR4-10 km-CFP 100G BASE-10×10G-10 km-CFP (100G BASE-4×25G)/(OTU4-4×28G)-10 km-CFP |
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN54TSC | 65.0 | 80.0 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
