Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN53TQX |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

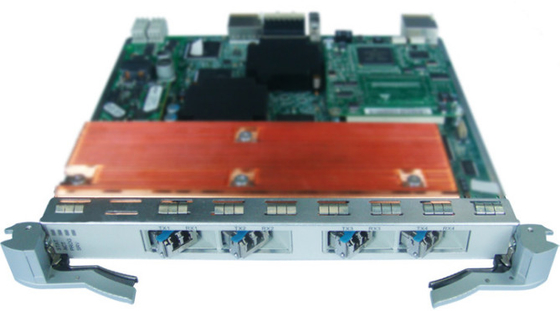

| TN53TQX: | 4 X 10G Tributary Service Processing Board |
|---|
The TQX board enables cross-connections at the electrical layer.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function | TQX converts signals as follows:
| ||
| Client-side service type | STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s NOTE: Only the TN53TQX/TN55TQX supports FC800 and FC1200 services. Only the TN52TQX/TN53TQX/TN55TQX supports OTU2 and OTU2e services. The processing of the 10GE WAN service and the STM-64 service is the same. Therefore, For the TN11TQX/ TN52TQX, when the 10GE WAN service is transmitted, you can configure it as the STM-64 service on the U2000. | ||
| Cross-connect capabilities | Supports the cross-connection of four ODU2/ODU2e/ODUflex signals between the TQX and the cross-connect board through the backplane. NOTE: The cross-connection of ODUflex signals is supported only by the TN55TQX board. | ||
| OTN function |
| ||
| ESC function | Supported by the TN52TQX/TN53TQX/TN55TQX when the client-side service type is OTU2 or OTU2e. | ||
| FEC coding | Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the service type is OTU2/OTU2e. | ||
| Alarm and performance event monitoring |
| ||
| ALS function | Supports the ALS function on the client side when client services are non-OTN services. | ||
| PRBS test function | Supports the PRBS function on the client side. NOTE: The PRBS function on the client side is supported only when the client-side service type is STM-64/OC-192, OTU2 or OTU2e. | ||
| LPT function | The board supports the LPT function only when the client-side service type is 10GE LAN. | ||
| Test frame | Supports the test frame function when the client-side service type is 10GE LAN and the Port mapping is MAC Transparent Mapping (10.7 G). | ||
| Latency measurement | The TN53TQX/TN55TQX (standard mode) board supports latency measurement. The bidirectional latency at the ODUk layer between two tributary boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. NOTE: This function is not supported when the client-side service type is OTU2/OTU2e. | ||
| IEEE 1588v2 | The TN55TQX board supports the TC, TC+OC, BC, and OC modes when the client-side service type is 10GE LAN and the Port Mapping is MAC Transparent Mapping (10.7 G). | ||
| Physical clock | TN55TQX:
TN52TQX/TN53TQX: When the board receives 10GE LAN services and the port mapping is Bit Transparent Mapping (11.1 G) on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing. | ||
| Electrical-layer ASON | Supported by the TN52TQX/TN53TQX/TN55TQX | ||
| Protection scheme |
NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. NOTE: When the board receives OTN services, SDH/SONET services, and 10GE WAN services the board supports tributary SNCP protection. | ||
| Ethernet service mapping mode |
| ||
| Port MTU | The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes. NOTE: when Port Mapping is set to Bit Transparent Mapping(11.1G), Maximum Packet Length is unavailable on the U2000. | ||
| Loopback | WDM side | - | |
| Client side | Inloop | Supported | |
| Outloop | Supported | ||
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3ae ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic | |
| Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 | ||
Specifications include optical specifications, dimensions, weight, and power consumption.
| Board | Client-Side Fixed Optical Module | Client-Side Pluggable Optical Module |
|---|---|---|
| TN11TQX/TN52TQX | N/A | 10 Gbit/s Multirate-10 km-XFP 10 Gbit/s Multirate-40 km-XFP 10 Gbit/s Multirate-80 km-XFP 10 Gbit/s Single Rate-0.3 km-XFP |
| TN53TQX | N/A | 10 Gbit/s Multirate-10 km-XFP 10 Gbit/s Multirate-40 km-XFP 10 Gbit/s Multirate-80 km-XFP 10 Gbit/s Single Rate-0.3 km-XFP 800-SM-LC-L-10 km-XFP |
| TN55TQX | N/A | 10 Gbit/s Multirate-10 km-XFP 10 Gbit/s Multirate-40 km-XFP 10 Gbit/s Multirate-80 km-XFP 10 Gbit/s Single Rate-0.3 km-XFP 800-SM-LC-L-10 km-XFP 10 Gbit/s Multirate-TX1330/RX1270nm-10km-XFP 10 Gbit/s Multirate-TX1270/RX1330nm-10km-XFP 10 Gbit/s Multirate (CWDM)-1120ps-XFP 10 Gbit/s Multirate (CWDM:1571)-1260ps-XFP 10 Gbit/s Multirate (CWDM:1591/1611)-1260ps-XFP |
TN11TQX: 1.5 kg (3.3 lb.)
TN52TQX: 1.6 kg (3.5 lb.)
TN53TQX: 1.6 kg (3.5 lb.)
TN55TQX: 1.6 kg (3.5 lb.)
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11TQX | 65.0 | 71.2 |
| TN52TQX | 91.5 | 100 |
| TN53TQX | 45 | 50 |
| TN55TQX | 45 | 50 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
