Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN55TOX01 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

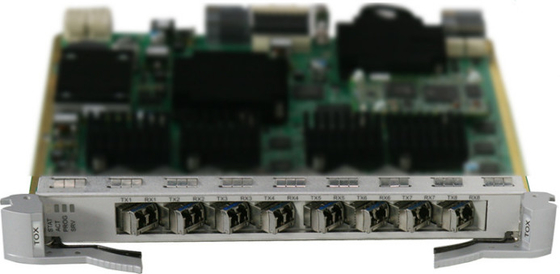

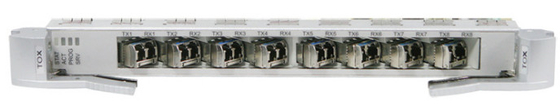

| TN55TOX01: | 8 X 10G Tributary Service Processing Board |
|---|
The TOX board enables cross-connections at the electrical layer.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function | TOX converts signals as follows:
| ||
| Client-side service type | STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s NOTE: Only the TN56TOX supports FC800 and FC1200 services. | ||
| Cross-connect capabilities | Supports the cross-connection of eight ODU2/ODU2e/ODUflex signals between the TOX and the cross-connect board through the backplane. NOTE: The cross-connection of ODUflex signals is supported only by the TN56TOX board. | ||
| OTN function |
| ||
| ESC function | Supported by the TOX when the client-side service type is OTU2 or OTU2e. | ||
| FEC coding | Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the service type is OTU2/OTU2e. | ||
| Alarm and performance event monitoring |
| ||
| ALS function | Supports the ALS function on the client side when client services are non-OTN services. | ||
| PRBS function | Supports the PRBS function on the client side. NOTE: The PRBS function on the client side is supported only when the client-side service type is STM-64, OC-192, OTU2 or OTU2e. | ||
| LPT function | The board supports the LPT function only when the client-side service type is 10GE LAN. | ||
| Test frame | Supports the test frame function when the client-side service type is 10GE LAN and the Port mapping is MAC Transparent Mapping (10.7 G). | ||
| Latency measurement | The board supports latency measurement. The bidirectional latency at the ODUk layer between two tributary boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. NOTE: This function is not supported when the client-side service type is OTU2/OTU2e. | ||
| IEEE 1588v2 | The TOX board supports the TC, TC+OC, BC, and OC modes when the client-side service type is 10GE LAN and the Port Mapping is MAC Transparent Mapping (10.7 G). NOTE:
| ||
| Physical clock |
| ||
| Electrical-layer ASON | Supported | ||
| Ethernet service mapping mode | Bit Transparent Mapping(11.1G), MAC Transparent Mapping(10.7G) | ||
| Port MTU | The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes. NOTE: when Port Mapping is set to Bit Transparent Mapping(11.1G), Maximum Packet Length is unavailable on the U2000. | ||
| Protection scheme |
NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. NOTE: When the board receives OTN services, SDH/SONET services, and 10GE WAN services the board supports tributary SNCP protection. | ||
| Loopback | WDM side | - | |
| Client side | Inloop | Supported | |
| Outloop | Supported | ||
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3ae ITU-T G.707 ITU-T G.782 ITU-T G.783 NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic | |
| Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 | ||
Specifications include optical specifications, dimensions, weight, and power consumption.
| Board | Client-Side Fixed Optical Module | Client-Side Pluggable Optical Module |
|---|---|---|
| TN55TOX | N/A | 10 Gbit/s Multirate-10 km-SFP+ 10 Gbit/s Multirate-40 km-SFP+ 10G BASE-SR-0.3 km-SFP+ 10G BASE-LR-10 km-SFP+ 10G BASE-ER/EW-40 km-SFP+ 10G BASE-ZR-80 km-SFP+ |
| TN56TOX | N/A | 10 Gbit/s Multirate-10 km-SFP+ 10 Gbit/s Multirate-40 km-SFP+ 10 Gbit/s Multirate-80 km-SFP+ 10GBASE-ZR-80km-SFP+ 10GBASE-ER/EW-40km-SFP+ 10GBASE-SR-0.3km-SFP+ 10GBASE-LR-10km-SFP+ 11.3 Gbit/s Multirate-TX1270/RX1330nm-10km-SFP+ 11.3 Gbit/s Multirate-TX1330/RX1270nm-10km-SFP+ |
| Parameter | Unit | Value | ||
|---|---|---|---|---|
| Optical Module Type | 10 Gbit/s Multirate-10 km-SFP+ | 10 Gbit/s Multirate-40 km-SFP+ | 10 Gbit/s Multirate-80 km-SFP+ | |
| Optical interface service rate | Gbit/s | 8.5 to 11.1 | 9.956 to 11.1 | 8.5 to 11.3 |
| Line code format | - | SLM | SLM | SLM |
| Optical source type | - | NRZ | NRZ | NRZ |
| Target transmission distance | km | 10 | 40 | 80 |
| Transmitter parameter specifications at point S | ||||
| Operating wavelength range | nm | 1260 to 1355 | 1530 to 1565 | 1530 to 1565 |
| Maximum mean launched power | dBm | -1 | 2 | 4 |
| Minimum mean launched power | dBm | -6 | -1 | 0 |
| Minimum extinction ratio | dB | 6 | 8.2 | 9 |
| Eye pattern mask | - | IEEE802.3z-compliant | ||
| Receiver parameter specifications at point R | ||||
| Receiver type | - | PIN | PIN | PIN |
| Operating wavelength range | nm | 1260 to 1355 | 1260 to 1605 | 1260 to 1565 |
| Receiver sensitivity | dBm | -14.4 | -14(11.1G) -15.8(10.3125G) | -24 |
| Minimum receiver overload | dBm | 0.5 | -1 | -7 |
| reflectance | dB | -12 | -27 | -27 |
| Parameter | Unit | Value | |||
|---|---|---|---|---|---|
| Optical Module Type | 10G BASE-SR-0.3 km-SFP+ | 10G BASE-LR-10 km-SFP+ | 10G BASE-ER/EW-40 km-SFP+ | 10G BASE-ZR-80 km-SFP+ | |
| Optical interface service rate | Gbit/s | 10.3125 | 10.3125 | 10.3125 | 10.3125 |
| Optical source type | - | MLM | SLM | SLM | SLM |
| Line code format | - | NRZ | NRZ | NRZ | NRZ |
| Target transmission distance | - | 0.3 km (0.2 mi.) | 10 km (6.2 mi.) | 40 km (24.8 mi.) | 80 km (49.7 mi.) |
| Transmitter parameter specifications at point S | |||||
| Operating wavelength range | nm | 840 to 860 | 1260 to 1355 | 1530 to 1565 | 1530 to 1565 |
| Maximum mean launched power | dBm | -1 | 0.5 | 4 | 4 |
| Minimum mean launched power | dBm | -7.3 | -8.2 | -4.7 | 0 |
| Minimum extinction ratio | dB | 3 | 3.5 | 3 | 9 |
| Output optical power in case of laser shutdown | dBm | ≤-30 | ≤-30 | ≤-30 | ≤-30 |
| Eye pattern mask | - | IEEE802.3z –compliant | |||
| Receiver parameter specifications at point R | |||||
| Receiver type | - | PIN | PIN | PIN | PIN |
| Operating wavelength range | nm | 840 to 860 | 1260 to 1355 | 1530 to 1565 | 1530 to 1565 |
| Receiver sensitivity | dBm | -11.1 (OMA) | -12.6 (OMA) | -14.1 (OMA) | -24 |
| Minimum receiver overload | dBm | -1 | 0.5 | -1 | -7 |
| Maximum reflectance | dB | -12 | -12 | -26 | -27 |
TN55TOX: 1.42 kg (3.13 lb.)
TN56TOX: 1.1 kg (2.43 lb.)
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN55TOX | 75.3 | 80.6 |
| TN56TOX | 46 | 51 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
