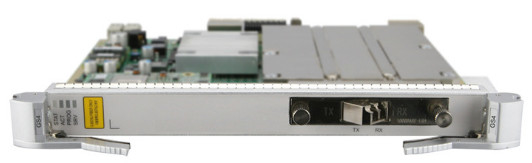

OptiX OSN 8800 TN54GS401 100G General Service Processing Board-- OSN8800

Name: OptiX OSN 8800 TN54GS401 100G General Service Processing Board-- OSN8800
Brand: Huawei
SKU: TN54GS401
Availability: InStock
ISBN: 14070611

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	TN54GS401

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

TN54GS401:	(100G BASE-4x25G)/(OTU4-4x28G)-10 Km-CFP

Functions and Features

The GS4 board achieves cross-connection at the electrical layer, and to provide OTN interfaces and ESC.

For detailed functions and features, refer to Table 1.

Table 1 Functions and features of the GS4 board

Function and feature	Description
Basic function	GS4 converts signals as follows: 80xODU0/80xODUflex/40xODU1/10xODU2/10xODU2e/2xODU3/1xODU4<->1xOTU4 Supports mixed transmission of ODU0, ODU1, ODUflex, ODU2, ODU2e, and ODU3 signals.
Line-side service type	OTU4: OTN service at a rate of 111.81 Gbit/s
Cross-connect capabilities	Supports the cross-connection of 80 channels of ODU0/ODUflex signals or 40 channels of ODU1 signals or ten channels of ODU2/ODU2e signals or two channels of ODU3 signals or one channel of ODU4 signals between the GS4 and the cross-connect board.
OTN function	Supports the OTU4 interface on the line side. Supports the OTN frame format and overhead processing by referring to the ITU-T G.709. OTU4 layer: supports the SM function. ODUk (k=0, 1, 2/2e, 3, 4, flex) layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
ESC function	Supported
PRBS function	Supports the PRBS function on the line side.
LPT function	Not supported
FEC coding	FEC NOTE: Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
ALS function	Not supported
Latency measurement	Supported
Test frame	Not supported
IEEE 1588v2	Not supported
Physical clock	Not supported
Optical-layer ASON	Not supported
Electrical-layer ASON	Supported
Protection scheme	Supports ODUk SNCP. Supports tributary SNCP protection. Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board). NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
Loopback	Line-side Loopback		ODU0 Channel Loopback	ODU1 Channel Loopback	ODU2 Channel Loopback	ODU3 Channel Loopback	ODUflex Channel Loopback
Loopback	Supported		Supported	Supported	Supported	Supported	Supported
Protocols or standards compliance	Protocols or standards for transparent transmission (non-performance monitoring)	IEEE 802.3u IEEE 802.3z IEEE 802.3ae IEEE 802.3ba ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2) SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems ETSI TR 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI) SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface SMPTE 297-2006 Serial Digital Fiber Transmission System for SMPTE 259M, SMPTE 344M, SMPTE 292 and SMPTE 424M Signals NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON) ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC) ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY) ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM)
Protocols or standards compliance	Protocols or standards for service processing (performance monitoring)	ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1

GS4 Specifications

Specifications include optical specifications, dimensions, weight, and power consumption.

Board	Line-Side Fixed Optical Module	Line-Side Pluggable Optical Module
TN54GS4	N/A	(100G BASE-4×25G)/(OTU4-4×28G)-10 km-CFP^a
a: The GS4 board receives and transmits only OTU4 services.

NOTE:

Margins exist between the default input power low threshold and the receiver sensitivity and between the default input power high threshold and the overload point. These margins ensure that the system can report an input power low or high alarm before the actual input power reaches the receiver sensitivity or overload point.

Line-Side Pluggable Optical Module

NOTE:

The GS4 board receives and transmits only OTU4 services.

Table 1 Line-side pluggable optical module specifications (100GE/OTU4 services)

Parameter	Unit	Value
Optical Module Type	Unit	(100G BASE-4×25G)/(OTU4-4×28G)-10 km-CFP
Line code format	-	NRZ
Optical source type	-	SLM
Target transmission distance	-	10 km (6.2 mi.)
Transmitter parameter specifications at point S
Signaling Speed per Lane	Gbit/s	100GE: 25.78125 OTU4: 27.952493
Signaling Speed Accuracy	ppm	100GE: -100 to 100 OTU4: -20 to 20
Minimum Lane Center Wavelength	nm	1294.53
		1299.02
		1303.54
		1308.09
Maximum Lane Center Wavelength	nm	1296.59
		1301.09
		1305.63
		1310.19
Total Average Launch Power (Min)	dBm	100GE: 1.7 OTU4: 3.5
Total Average Launch Power (Max)	dBm	100GE: 10.5 OTU4: 8.9
Average Launch Power per Lane (Min)	dBm	100GE: -4.3 OTU4: -2.5
Average Launch Power per Lane (Max)	dBm	100GE: 4.5 OTU4: 2.9
Transmit OMA per Lane (Min)	dBm	-1.3 (Only for 100GE)
Transmit OMA per Lane (Max)	dBm	4.5 (Only for 100GE)
Eye pattern mask	-	100GE: IEEE 802.3ba - compliant OTU4: ITU-T G.959 - compliant
Optical Extinction Ratio (Min)	dB	100GE: 4 OTU4: 7
Side Mode Suppression Ratio (Min)	dB	30
Receiver parameter specifications at point R
Receiver type	-	PIN
Signaling Speed per Lane	Gbit/s	100GE: 25.78125 OTU4: 27.952493
Signaling Speed Accuracy	ppm	100GE: -100 to 100 OTU4: -20 to 20
Minimum Lane Center Wavelength	nm	1294.53
		1299.02
		1303.54
		1308.09
Maximum Lane Center Wavelength	nm	1296.59
		1301.09
		1305.63
		1310.19
Receiver Power per Lane (Min)	dBm	100GE: -10.6 OTU4: -8.8
Receiver Power per Lane (Max)	dBm	100GE: 4.5 OTU4: 2.9
Minimum receiver overload (OMA) per Lane	dBm	4.5 (Only for 100GE)
Receiver sensitivity (OMA) per Lane	dBm	-8.6 (Only for 100GE)
Receiver equivalent sensitivity per Lane	dBm	-10.3 (Only for OTU4)
Minimum receiver overload per Lane	dBm	2.9 (Only for OTU4)
Maximum reflectance	dB	-26

NOTE:

The OMA values are designed to ensure normal equipment operation. They are not provided for equipment commissioning. In practical, equipment commissioning is performed based on the average receiver power per lane and total average launched power. It is recommended that the total average launched power be used as the reference for equipment commissioning. The method of commissioning the optical power for a GS4 board is similar to that of commissioning the optical power for a tributary board. For details, see Commissioning Optical Power of Tributary Board in the Commissioning.

Mechanical Specifications

Dimensions of front panel (H x W x D): 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight: 1.5 kg (3.3 lb.)

Power Consumption

Board	Line-Side Pluggable Optical Module	Typical Power Consumption (W)	Maximum Power Consumption^a (W)
TN54GS4	(100G BASE-4×25G)/(OTU4-4×28G)-10 km-CFP	55	60
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.
