Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN57NS4T61 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TN57NS4T61: | 150000 Ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, WDCM)-PIN |
|---|

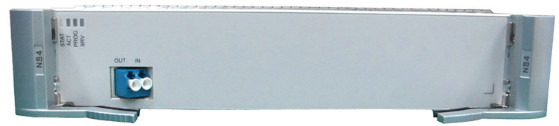

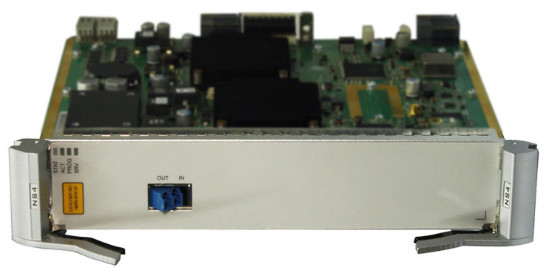

The NS4 board achieves cross-connection at the electrical layer, and to provide OTN interfaces and ESC.
For detailed functions and features, refer to Table 1 and Table 2.
| Function and feature | Description | ||||||
|---|---|---|---|---|---|---|---|
| Basic function | NS4 converts signals as follows: 80xODU0/80xODUflex/40xODU1/10xODU2/10xODU2e/2xODU3/1xODU4<->1xOTU4 Supports mixed transmission of ODU0, ODU1, ODUflex, ODU2, ODU2e, and ODU3 signals. | ||||||
| Cross-connect capabilities | Supports the cross-connection of 80 channels of ODU0/ODUflex signals or 40 channels of ODU1 signals or ten channels of ODU2/ODU2e signals or two channels of ODU3 signals or one channel of ODU4 signals between the NS4 and the cross-connect board. | ||||||
| OTN function |
| ||||||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||||||
| Tunable wavelength function | The board can tune the optical signal output on the WDM side within the range of 80 wavelengths in C-band with the channel spacing of 50 GHz. | ||||||
| ESC function | Supported | ||||||
| PRBS function | Supports the PRBS function on the WDM side. | ||||||
| LPT function | Not supported | ||||||
| FEC coding | TN54NS4: Supports HFEC and SDFEC on the WDM side. TN56NS4: Supports SDFEC on the WDM side. TN57NS4: Supports HFEC and SDFEC2 on the WDM side. TN58NS4: Supports SDFEC2 on the WDM side. NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||||||
| Alarms and performance events monitoring |
| ||||||
| Regeneration board | The WDM-side signals from an NS4 board can be regenerated by another NS4 board or an LTX board of the same type. For example,
| ||||||
| ALS function | Not supported | ||||||
| Latency measurement |
| ||||||
| Test frame | Not supported | ||||||
| IEEE 1588v2 | Not supported | ||||||
| Physical clock | Not supported | ||||||
| Optical-layer ASON | Supported | ||||||
| Electrical-layer ASON | Supported | ||||||
| Protection scheme |
NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection and ODUk SPRing protection. | ||||||
| Loopback | WDM side Loopback | ODU0 Channel Loopback | ODU1 Channel Loopback | ODU2 Channel Loopback | ODU3 Channel Loopback | ODUflex Channel Loopback | |
| Supported | Supported | Supported | Supported | Supported | Supported | ||
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3u IEEE 802.3z IEEE 802.3ae IEEE 802.3ba ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2) SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems ETSI TR 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI) SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface SMPTE 297-2006 Serial Digital Fiber Transmission System for SMPTE 259M, SMPTE 344M, SMPTE 292 and SMPTE 424M Signals NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON) ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC) ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY) ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM) | |||||
| Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 | ||||||
| Function and feature | Description | ||
|---|---|---|---|
| Basic function | The board is used in an electrical REG station in the system to implement electrical regeneration of optical signals. | ||
| Regenerating rate | OTU4: OTN service at a rate of 111.81 Gbit/s | ||
| OTN function |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | The board can tune the optical signal output on the WDM side within the range of 80 wavelengths in C-band with the channel spacing of 50 GHz. | ||
| ESC function | Supported | ||
| PRBS function | Not supported | ||
| FEC coding | TN54NS4: Supports HFEC and SDFEC on the WDM side. TN56NS4: Supports SDFEC on the WDM side. TN57NS4: Supports HFEC and SDFEC2 on the WDM side. TN58NS4: Supports SDFEC2 on the WDM side.NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| ALS function | Not supported | ||
| Test frame | Not supported | ||
| IEEE 1588v2 | Not supported | ||
| Physical clock | Not supported | ||
| Optical-layer ASON | Supported | ||
| Electrical-layer ASON | Not supported | ||
| Protection scheme | Not supported | ||
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | - | |
| Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.694.1 | ||
Specifications include optical specifications, dimensions, weight, and power consumption.
| Board | WDM-Side Fixed Optical Module |
|---|---|
| TN54NS4 | 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(HFEC)-PIN 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC)-PIN |
| TN56NS4 | 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC)-PIN |
| TN57NS4 | 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(HFEC)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM-Enhanced)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM)-PIN 12000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM-Metro)-PIN |
| TN58NS4 | 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 120000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM)-PIN 12000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM-Metro)-PIN 120000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM)-PIN |
TN54NS4/TN56NS4/TN57NS4: 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
TN58NS4: 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
TN54NS4: 2.5 kg (5.5 lb.)
TN56NS4: 2.5 kg (5.5 lb.)
TN57NS4: 2.6 kg (5.7 lb.)
TN58NS4: 1.62 kg (3.57 lb.)
| Board | WDM-Side Module | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|---|
| TN54NS4 (line application) | 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(HFEC)-PIN | 168 | 182 |
| 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC)-PIN | 180 | 200 | |
| TN54NS4 (regeneration application) | 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(HFEC)-PIN | 155 | 167 |
| 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC)-PIN | 167 | 185 | |
| TN56NS4 (line application) | 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC)-PIN | 160 | 170 |
| TN56NS4 (regeneration application) | 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC)-PIN | 160 | 170 |
| TN57NS4 (line application) | 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(HFEC)-PIN | 163.0 | 177.9 |
| 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM-Enhanced)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM)-PIN 12000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM-Metro)-PIN | 171.7 | 188.9 | |
| TN57NS4 (regeneration application) | 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(HFEC)-PIN | 155.0 | 167.0 |
| 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM-Enhanced)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM)-PIN 12000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM-Metro)-PIN | 171.7 | 188.9 | |
| TN58NS4 | 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 120000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM)-PIN 12000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM-Metro)-PIN 120000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM)-PIN | 94 | 101 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | |||
