Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN11DCU05 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TN11DCU05: | 100 KM, 9.0dB LOSS |
|---|

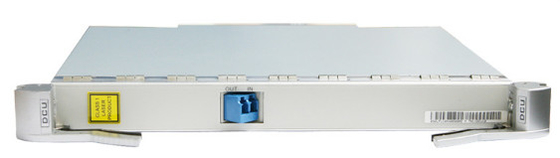

The DCU board compensates for the dispersion that is accumulated in the fiber during transmission and compresses optical signal pulse. This enables the transmitted optical signals to be restored at the output end. In addition, when used together with an optical amplifier board, the DCU board can implement long haul optical transmission.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function | Provides dispersion compensation for different transmission distance. |
| Dispersion compensation method | Compensates for the dispersion accumulated in an optical transmission system, and compresses the optical signal pulse. This enables the transmitted optical signals to be restored at the output end. |
| Long haul transmission with optical regeneration | Implements long haul transmission when used together with an optical amplifier board. |
| Optical-layer ASON | Supported |
The characteristic code for the DCU board contains characters, indicating the type of the fiber that the board works with and the dispersion compensation distance.
The detailed information about the characteristic code is given in Table 1.
| Code | Meaning | Description |
|---|---|---|
| Character before hyphen (-) | Fiber type | Type of the fiber that the DCU board works with |
| Character after hyphen (-) | Dispersion compensation distance | The transmission distance achieved through dispersion compensation |
For example, the characteristic code for the TN11DCU board is G.655LEAF-40. It indicates that the DCU board works with G.655LEAF fibers, and the dispersion compensation distance is 40 km.
Specifications include optical specifications, dimensions, weight, and power consumption.
| Item | Unit | Value | |||||||
|---|---|---|---|---|---|---|---|---|---|
| DCU01 | DCU02 | DCU03 | DCU04 | DCU05 | DCU06 | DCU07 | DCU08 | ||
| Typical dispersion compensation distance | km | 20 | 40 | 60 | 80 | 100 | 120 | 5 | 10 |
| Maximum insertion loss | dB | 3.3 | 4.7 | 6.4 | 8 | 9 | 9.8 | 2.3 | 2.8 |
| Dispersion compensation slope | - | 90%-110% | |||||||
| Polarization mode dispersion | ps | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 0.8 | 0.3 | 0.3 |
| Polarization-dependent loss | dB | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Maximum input power a | dBm | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Operating wavelength range | nm | 1528-1568 | |||||||
| Dispersion compensating fiber type | - | G.652 fiber | |||||||
| a: The maximum input power refers to the maximum input optical power permitted by the optical module on the condition that the optical module is not damaged. | |||||||||
| Item | Unit | Value | |||||
|---|---|---|---|---|---|---|---|
| DCU11 | DCU12 | DCU13 | DCU14 | DCU15 | DCU16 | ||
| Typical dispersion compensation distance | km | 20 | 40 | 60 | 80 | 100 | 120 |
| Maximum insertion loss | dB | 4 | 5 | 5.9 | 6.9 | 7.8 | 8.8 |
| Dispersion compensation slope | - | 90%-110% | |||||
| Polarization mode dispersion | ps | 0.4 | 0.5 | 0.7 | 0.8 | 0.9 | 1.0 |
| Polarization-dependent loss | dB | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Maximum input power a | dBm | 20 | 20 | 20 | 20 | 20 | 20 |
| Operating wavelength range | nm | 1528-1568 | |||||
| Dispersion compensating fiber type | - | G.655 fiber | |||||
| a: The maximum input power refers to the maximum input optical power permitted by the optical module on the condition that the optical module is not damaged. | |||||||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11DCU | 0.2 | 0.3 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
