Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN15OPM8 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

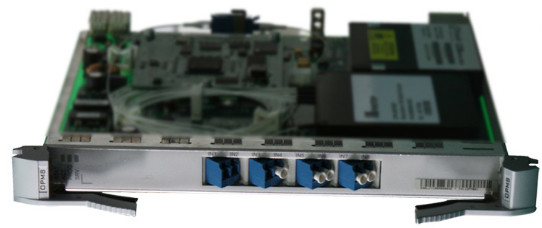

| TN15OPM8: | 8-channel Optical Power Monitor Board | Port: | Shenzhen |
|---|
| Board | Flexible Grid Wavelengths | OSNR Detection |
|---|---|---|
| TN11OPM8 | Not supported | Not supported |
| TN12OPM8 | Not supported | Supports detection of OSNR for 10 Gbit/s, 40 Gbit/s, 100 Gbit/s and 200 Gbit/s signals. |
| TN15OPM8 | Supported | Supports detection of OSNR for 10 Gbit/s, 40 Gbit/s, 100 Gbit/s, and 200 Gbit/s signals. If the Flexible Grid scanning mode is configured, OSNR detection for wavelengths is not supported. |
The OPM8 board is mainly used for optical power monitoring and APE.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function | The OPM8 board provides eight ports, and each port supports optical power monitoring. |
| Monitoring function | Detects optical power of each wavelength and reports to the SCC board. TN12OPM8/TN15OPM8 supports detection of OSNR for 10 Gbit/s, 40 Gbit/s, 100 Gbit/s and 200 Gbit/s signals. OSNR detection for Flexible Grid wavelengths is not supported.The TN12OPM8/TN15OPM8 board can interoperate with the Optical Doctor management system license. The results are reported to the SCC and can be displayed on the U2000. NOTE:
OSNR monitoring is not supported for PID boards. |
| Optical power monitoring for Flexible Grid wavelengths | Supported only by the TN15OPM8 board. |
| APE function | Implements the APE function when the board is used with other required boards. Monitors the optical power of each channel. |
| Optical-layer ASON | Supported |
Specifications include optical specifications, dimensions, weight, and power consumption.
Table 1 lists the optical specifications of the OPM8 board.
| Item | Unit | Value |
|---|---|---|
| Operating wavelength range | nm | 1529-1561 |
| Detect range for single channel optical power | dBm | -30 to -10 |
| Detected accuracy for optical power | dB | ±1.5 |
| Channel spacing | GHz | TN11OPM8/TN12OPM8: 50/100 TN15OPM8: 37.5 to 400 with a step of 12.5 |
| Numbers of optical interface | pcs | 8 |
| Detect accuracy for OSNRa | dB | ±1.5 (OSNR detection range: 13-23) NOTE: This item is valid only for TN12OPM8/TN15OPM8. |
| a: The OSNR detection function is available when the the OD functions are configured (OD V1). The OSNR detection function is available when the Optical Doctor management system license is used and the OD functions are configured (OD V2). | ||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| OPM8 | 12 | 15 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
