Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OSN 9800 U64 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Model: | TNV1T130 | OSN 9800 U64 Dimensions: | 2200x600x600mm(with Cabinet) |
|---|---|---|---|
| OSN 9800 U32 Dimensions: | 1900x498x295mm | OSN 9800 U16 Dimensions: | 847x442x295mm |
| OSN9800 U64 Installation Rack: | ETSI 600mm Rack | OSN9800 U32 Installation Rack: | ETSI 300/600mm Rack |
| OSN9800 U16 Installation Rack: | ETSI/19 Inch Rack | Power Supply: | -48VDC/-60VDC |
| Rate Per Channel (Max.): | 100G, 200G, 400G, 1T, 2T | Service Types Supported: | SDH, SONET, Ethernet, SAN, OTN, Video |
| High Light: | TNV1T130 Huawei T130,T130 Huawei DWDM,TNV1T130 Huawei DWDM |
||
DWDM Transmission Huawei OSN 9800 U64 TNV1T130 Huawei T130
Product Appearance

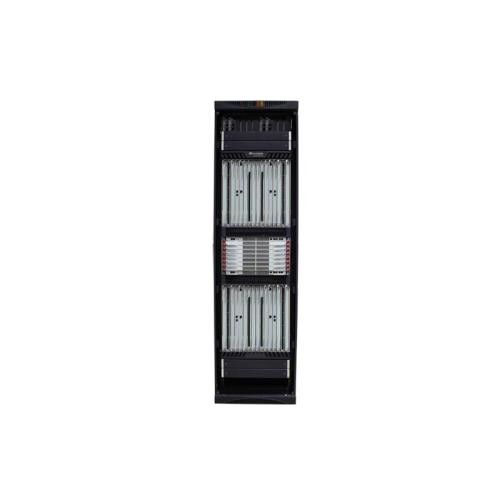

The huawei Optix OSN 9800 U64 U32 U16
Huawei Optix OSN 9800 U64 boards
Product features
The industry's largest capacity MS-OTN platform, with flexible services grooming
* Provides the industry's largest OTN cross-connect capacity. The OptiX OSN 9800 can currently offer 25.6 Tbit/s congestion free cross-connections. In the future, this can be expanded to over 100 Tbit/s by using a cluster solution. The large cross-connect capacity of the OptiX OSN 9800 enables the flexible grooming of massive services.
* Provides large-capacity OTN electrical cross-connections and 20-degree ROADM optical cross-connections, improving network flexibility by enabling wavelength-level and sub wavelength-level grooming and quick service deployment.
* Implements unified access, switching, and transmission of OTN, VC, and packet services using a universal switching matrix based on the industry-leading Tbit/s universal switching chip.
* Improves network flexibility by supporting service switching, grooming, and transmission within a node in any format, including PW, LSP, Ethernet, ODUk, and VC.
* Provides an industry's only 100G universal line board and 100GE tributary board that supports L2 functions, enabling the efficient transmission of IP services.
Optimal 100G/400G transmission technology, meeting future bandwidth requirements
* Uses industry-leading super 100G technology to implement up to 7000 km transmission without electrical regeneration.
* Features the highest integration in the industry. A single slot of the OptiX OSN 9800 U series supports a maximum of four 100G coherent line optical ports, and each subrack can provide up to 256 100GE ports on the client side. This ultra-high integration saves equipment room space and reduces energy consumption.
* Achieves the industry's first commercial use of 200G/400G and supports evolution to 1T/2T in the future.
Open and flexible network based on TSDN
* Supports smooth evolution to flexible optical networks based on TSDN architecture. Implements programmable control on the coding format, FEC type, number of carriers, and spectral width to meet the transmission rate and distance requirements in various application scenarios and to provide optimal network performance.
* Supports various apps and innovative services, and implements intelligent network management and the unified grooming of cross-layer and cross-domain network resources.
Energy-Saving and Easy Maintenance, Improving O&M Efficiency
* Features refined and dynamic energy saving mechanisms, highly integrated ASIC chips. Advanced energy saving technologies, such as intelligent warm backup, are highly efficient and greatly reduce power consumption.
* Provides a unique Optical Doctor (OD) system that monitors online OSNR for any wavelength (10G/40G/100G/200G/400G) at any site. The OD system supports quick deployment and fault isolation, avoids investment in expensive instrument, and reduces maintenance costs.
* Supports the online OTDR function by an OSC board, which measures fiber parameters and rapidly locates fault points and deterioration points on a fiber.
* Provides an advanced bandwidth resource platform, enabling visible, simple, and intelligent O&M. This platform is easy to use, displays the current bandwidth distribution on a visible interface, automatically evaluates bandwidth trends, reports alarms if the bandwidth is insufficient, and supports user-friendly human-computer interaction.
* Uses a unique intelligent power supply pool and the "pay as you grow" mode, supporting visible power supply management on the NMS to achieve on-demand power allocation and expansion.
* Supports the transmission of 2M, IEEE 1588v2, and synchronous Ethernet clocks to fully satisfy the clock precision requirements on 3G, 4G, and future 5G networks.
Product Specification
The Huawei OptiX OSN 9800 Specifications:
