Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | RTN 905, APMB303E0491 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| RTN905 Diamension: | 442mm X220mm X44mm | Maximum Throughput: | > 600Mbps |
|---|---|---|---|
| Working Temperature: | IDU -5℃~+60℃ ; ODU -35℃~+55℃ | Relative Humidity: | IDU 5%~95% ,ODU 5%~100% |
| DC Power: | -38.4V ~ -57.6V | AC Power: | 220V |
| IDU 905 1E Radio Directions: | 1 | IDU 905 2E Radio Directions: | 2 |
| IDU 905 2F Radio Directions: | 2 |
Installation Materials for OptiX RTN 905 :
IF Cable
RF Cable,Copper-clad Aluminium Wire,50ohm,13.5mm,8.7mm,3.55mm,Black,1/2-Inch
Coaxial Cable,1/2.74mm 50ohm,10.16mm,7.24mm,0mm,International type:RG-8U
Coaxial Cable ,Copper-clad Aluminium Wire,50ohm,7.6mm,4.8mm,1.8mm,Black,5D
Installation Cable
Power Cable,10m,2.5mm^2,TB4PIN+4*T2.5^2BL,14UL3386BL-I+14UL3386B-I,LSZH
Power Cable,10m,2.5mm^2,TB4PIN+4*T2.5^2BL,14UL3386BL-I+14UL3386R-I,for Australia only,LSZH
Power Cable,10m,2.5mm^2,TB4PIN+4*T2.5^2BL,14UL3386BL-I+14UL3386GY-I,For UK Use Only,LSZH
External Cable Set,RTN900,External Cable Suite-2.5mm^2(LSZH)
Power Cable,600V,UL3386,14AWG,Blue,28.5A,UL (Unit:meter)
Power Cable,600V,UL3386,14AWG,Black,28.5A,UL (Unit:meter)
Power Cable,600V,UL3386,14AWG,Red,28.5A,UL (Unit:meter)
Power Cable,600V,UL3386,14AWG,Gray,28.5A,UL (Unit:meter)
External Cable Set,Onsite Cable,Kit of 16mm^2 Power Cable and Terminal(LSZH)
Power Cable,450V/750V,H07Z-K UL3386,16mm^2,Blue,107A,LSZH Cable,VDE,UL (Unit:meter)
Power Cable,450V/750V,H07Z-K UL3386,16mm^2,Black,107A,LSZH Cable,VDE,UL (Unit:meter)
Power Cable,450V/750V,H07Z-K UL3386,16mm^2,Yellow/Green,107A,LSZH Cable,VDE,UL (Unit:meter)
Power Cable,450V/750V,H07Z-K UL3386,16mm^2,Red,107A,LSZH Cable,VDE,UL (Unit:meter)
External Cable Set 227IEC02(RV),25mm^2(Blue,Black,Red,Yellow/Green)
Power Cable,450V/750V,60227 IEC 02(RV),25mm^2,Blue,112A,CCC,CE (Unit:meter)
Power Cable,450V/750V,60227 IEC 02(RV),25mm^2,Black,112A,CCC,CE (Unit:meter)
Power Cable,450V/750V,60227 IEC 02(RV),25mm^2,Yellow/Green,112A,CCC,CE (Unit:meter)
Power Cable,450V/750V,60227 IEC 02(RV),25mm^2,Red,112A,CCC,CE (Unit:meter)
OptiX RTN 905
Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and hybrid networking. OptiX RTN 900 Series systems support voice transmission on 2G networks, voice and data services on 3G networks, and broadband data services on LTE networks.
The OptiX RTN 905 provides a generic platform for TDM/Hybrid/Packet/Routing microwave transmission, meeting the backhaul requirements of various mobile networks. The OptiX RTN 905 is access-layer microwave equipment. It can independently constitute a network or jointly constitute a network with the OptiX RTN 910/910A/950/950A/980.
The OptiX RTN 905 can provide a route microwave solution for LTE bearer networks. In this solution, the OptiX RTN 905 functions as a CSG and works with routers that function as ASGs and RSGs to provide end-to-end L3VPN services. The routers can be Huawei CX600s or other routers.
The OptiX RTN 905 adopts a split structure. The system consists of the IDU 905 and the ODU. Each ODU is connected to the IDU 905 through an IF cable.

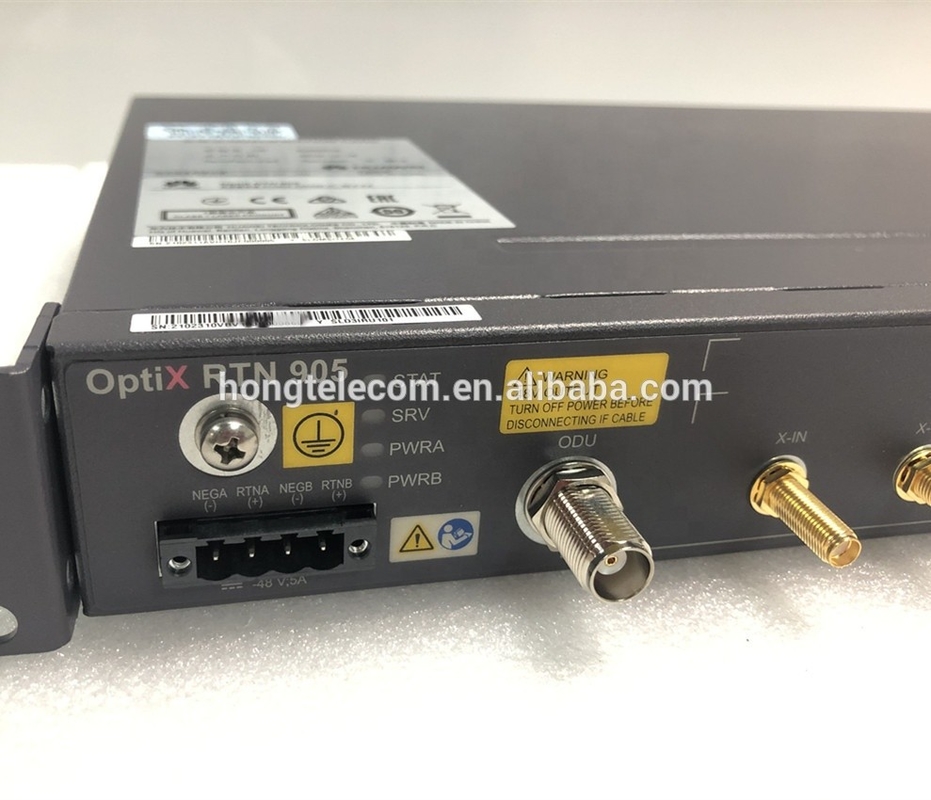

IDU 905
The IDU 905 is the indoor unit for an OptiX RTN 905 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.
Features of the IDU 905

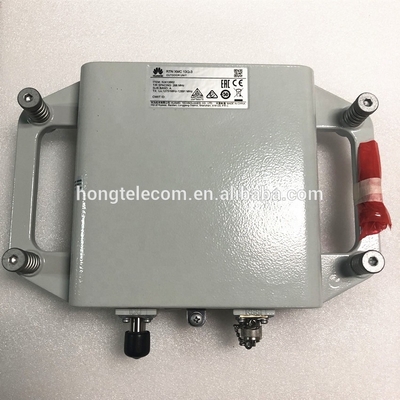

ODU
The ODU is the outdoor unit for the OptiX RTN 900. It converts frequencies and amplifies signals.
The OptiX RTN 900 product series can use the RTN 600 ODU and RTN XMC ODU, covering the entire frequency band from 6 GHz to 42 GHz.
RTN XMC ODUs that the OptiX RTN 905 supports
RTN 600 ODUs that the OptiX RTN 905 supports
OptiX RTN 900 Product Family
The OptiX RTN 900 series provide various service interfaces and can be installed easily and configured flexibly. The OptiX RTN 900 series provide a solution that can integrate TDM microwave, Hybrid microwave, and Packet microwave technologies according to the networking scheme for the sites, achieving smooth upgrade from TDM microwave to Hybrid microwave, and from Hybrid microwave to Packet microwave. This solution meets the transmission requirements of 2G, 3G, and LTE services while also allowing for future network evolution and convergence.
There are some types of OptiX RTN 900 Packet microwave products: OptiX RTN 910A, OptiX RTN 905, OptiX RTN 905 s, OptiX RTN 910, OptiX RTN 950, OptiX RTN 950A, and OptiX RTN 980. Users can choose the product best suited for their site.
HUAWEI RTN905
HUAWEI RTN910
HUAWEI RTN950A
HUAWEI RTN980
HUAWEI RTN310
HUAWEI RTN360
HUAWEI RTN380
