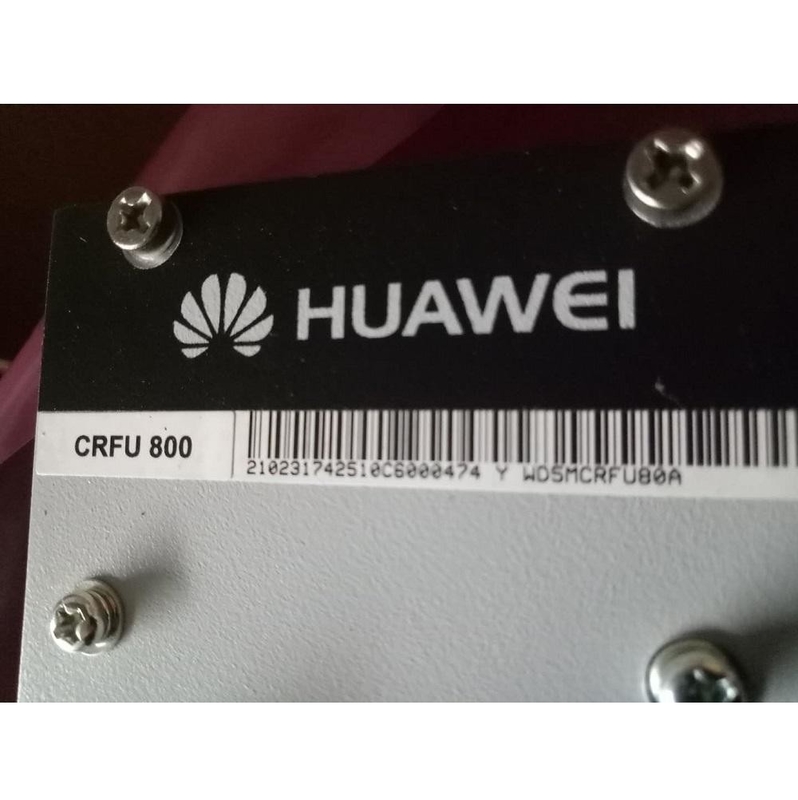

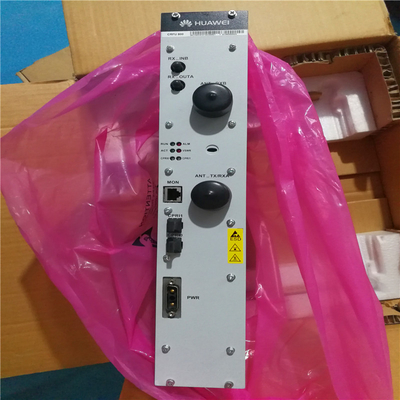

Huawei BTS3900 CRFU WD5MCRFU80A DRFU GRFU MRFU M900 M1800

Name: Huawei BTS3900 CRFU WD5MCRFU80A DRFU GRFU MRFU M900 M1800
Brand: Huawei
SKU: BTS
Availability: InStock
ISBN: 14068711

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	BTS

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Port:	Shenzhen

Huawei BTS3900 CRFU WD5MCRFU80A DRFU GRFU MRFU M900 M1800

Huawei GSM-R Products

Base Station Sub-System

BTS3900/BTS3900A

BTS3900 is a indoor macro BTS and BTS3900A is for outdoor. This base station features greater transmit power, higher reliability and LTE Evolution.

Frequency Band:
E-GSM: 880-915(35MHz)
ER-GSM 873-880(7 MHz)
Transmitting Diversity, 4-way Receiving Diversity
Top Power:
ER frequency band: 60W
E frequency band: 80W
Static receiving sensitivity: -112.5 dBm
Outdoor BTS3900A us of stronger acclimatization: -40℃~+50℃, IP55 protection lever

DBS3900

The DBS3900 GSM features a distributed architecture and consists of two basic fuction modules: BBU and RRU.
These basic modules can be flexibly configured to meet requurements for different capacities and in different application scenarios for GSM network.
RRU
Frequency 900M EGSM/ 900M RGSM
Sensitivity:-113dBm/1-Way Receiver -116 dBm/2-Way Receiver
TOC: 30W per TRX
Protection level: IP65
Temperature: -40℃~+50℃(without solar radiation)
BBU
Weight: 7 to 12KG
Capacity: 36 TRXs
Power Consumption: 50W
Protection level: IP20
Temperature: -20℃~+50℃

BSC6000

BSC6000 is responsible for radio resource management, base station management and power control.
Max equivalent BHCA: 5,900 k
Traffic volume: 24,000
Number of TRXs: 2,048
Number of configuren PDCHs: 30,720
Gb interface through put: 1,536 Mbit/s
Power consumption:≤3200W
Network Sub-System

eCNS300

The eCN300 depliys all CN NEs of GSM-R in single cabinet, including MSC Server, UMG and HLR based on the unified ATCA platform. Futhermore eCNS300 is evolution for LTE.
The typical configuaration is MSC Server, eHLR, and eUMG sharing one subrack.
Specification is:
Maximum subscribers: 50000
System Reliability:≥99.999%
Weight: ≤200KG
Power Consumption: ≤2200W(housing MSC server + eHLR + eUMG)

USN9810

Huawei USN9810 is a unified service node that can be deployed in Evolved Packet Core(EPC) systems.
ATCA platform
Maximum subscribers: 12,000,000
Maximum bearers: 24,000,000
Number of eNodesBs: 50000
Number of S-GWs and P-GWs: 4096
Weight:

UGW9811

The Huawei proprietary UGW9811(UGW9811) is a unified packet gateway that can be deployed in Evolved Packet Core(EPC) systems, it provides the functionalities of serving gateway(S-GW), PND gateway(P-GW).
Maximum bearers: 5,000,000(SPUs in active/standby mode)
Maximum data throughput: 120 Gbit/s(SPUs in active/standby mode)
Maximum APNs: 3,000
Maximum eNodeBs: 100,000
Weight: Dimensions:(H)2200mm x (W)600mm x (D)800 mm

Operation Support System

iManager U2000

The iManager U2000 centrally manages Huawei mobile network elements(NEs), including BSS and NSS. The U2000 provides basic functions, such as configuration management, performance management, fauly management, security management, log management, topology management, software managementm and system management. It also provides various optionak functions.

Product Feature

Technical specifications of the BTS3900

Item	Specification
Working band	Frequency band	Receiving band	Transmitting band
	Band class 0 (800 MHz)	824 MHz to 849 MHz	869 MHz to 894 MHz
	Band class 15 (AWS)	1710 MHz to 1755 MHz	2110 MHz to 2155 MHz
	Band class 1 (1900 MHz)	1850 MHz to 1910 MHz	1930 MHz to 1990 MHz
	Band class 14 (US PCS 1.9 GHz)	1850 MHz to 1915 MHz	1930 MHz to 1995 MHz
	Band class 6 (2 GHz)	1920 MHz to 1980 MHz	2110 MHz to 2170 MHz
Max. number of carriers supported by one CRFU	8
Transmitter and receiver specifications	Frequency band	Receiver sensitivity	Max. transmit power
	Band class 0 (800 MHz)	–130 dBm	100 W
	Band class 15 (AWS)	–127 dBm	80 W
	Band class 1 (1900 MHz)	–127 dBm	80 W
	Band class 14 (US PCS 1.9 GHz)	–127 dBm	80 W
	Band class 6 (2 GHz)	–127 dBm	80 W
