Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: BSC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Port: Shenzhen

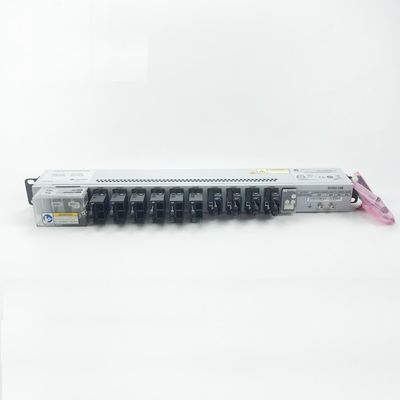

Huawei PDU  DCDU-12B DC power distribution unit  Huawei BBU RRU

Contact Us

Huawei PDU  DCDU-12B DC power distribution unit  Huawei BBU RRU 0

 Huawei DC Switched Power Distribution Unit

DCDU-12B



Huawei DCDU-12B DC Power Distribution Unit

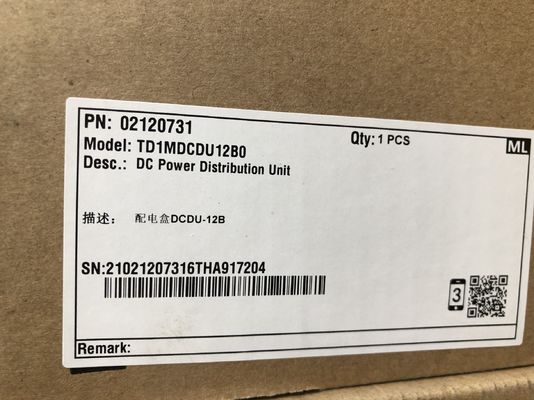

Part Number: 02120731
Model: TD1MDCDU12B0

Electrical Specifications
Specification
Input
Input Voltage
-38.4Vdc~-57Vdc; 2 blocks, DC-48V,Max 100A
Input Current(Max)
100A
Rated voltage
-48V
Output
Voltage drop
≤0.5Vdc
Output protection
Circuit breaker
Output voltage
-38.4Vdc~-57Vdc, rated value: -48Vdc
Output channels
9 channels, 6 x 20A and 3 x 12A
Others
Dimension
L*D*H(mm).442 mm *310 mm *42 mm
Weight
3.5Kg
Packing
580 mm *225 mm *120mm, 4.0kg
Environmental Specifications
Operating temperature
-40℃~+65℃
Storage temperature
-40℃~+70℃
Operating humidity
5%~95%(non-condensing)
Altitude
0~3000m (If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)
Warranty

Huawei PDU  DCDU-12B DC power distribution unit  Huawei BBU RRU 2

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Huawei PDU  DCDU-12B DC power distribution unit  Huawei BBU RRU 4

Huawei PDU  DCDU-12B DC power distribution unit  Huawei BBU RRU 6
