Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZTE ZXCTN 6500 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

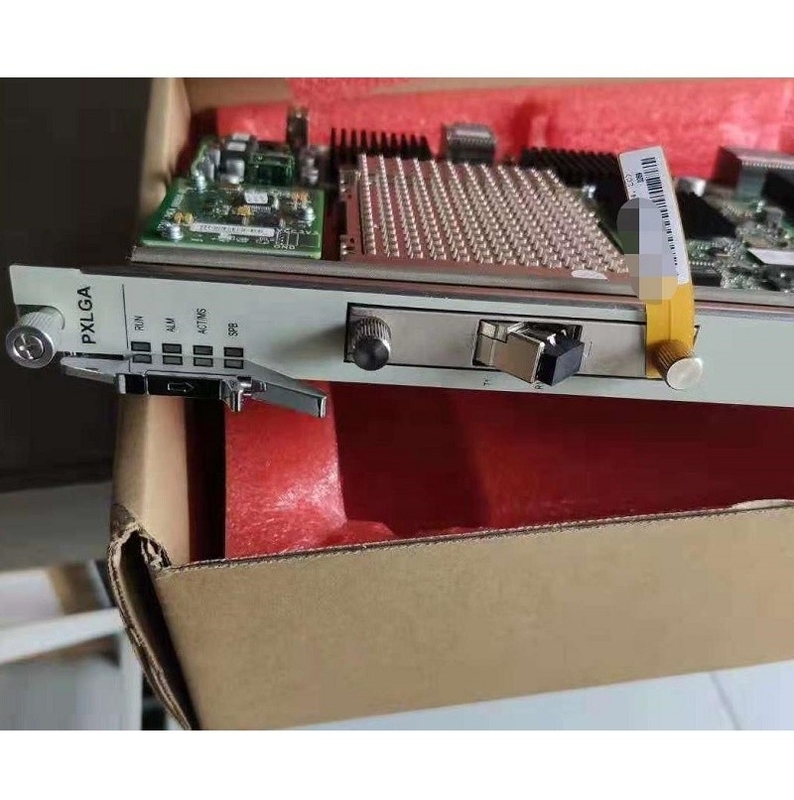

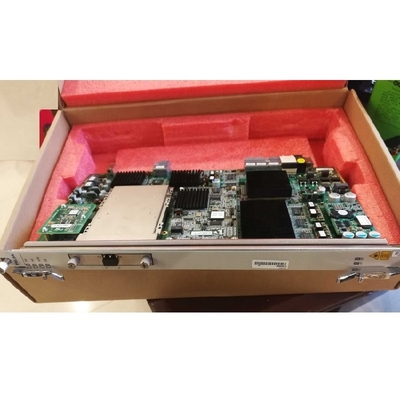

| Number Name: | ZXCTN 6500 PXGA*4 | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Color: | Metal Chasis | Port: | Shenzhen |
ZTE deeply studies development trends of bearer network technologies and launches a new generation of flagship packet transport product ZXCTN 6500 series in combination with the features of enterprise customers and telecommunications service transport. The ZTE ZXCTN 6500 is the industry's first 100GE/100G channelized product. With the unified switching, it can transmit MPLS-TP packet services and CBR (TDM) services at the same time and support such service interfaces as E1, ch/CEP STM 1/4, FE, GE, 10GE, 40GE and 100GE/OTU4. It also supports the unified and efficient transport of L1/L2/L3 services and SDN-oriented control architecture. The ZXCTN 6500 series has T-level large capacity, 300mm depth, high/low-rate slot partition and de-coupling design, and provides all-round protection, high-precision 1588V2 time synchronization and other functions. It effectively solves the problems of bearer network in IP, bandwidth and integrated service directions.
ZXCTN 6500 series | ZXCTN 6500-8 | ZXCTN 6500-16 | ZXCTN 6500-32 |
Standards | ITU-T and IEEE standards | ||
L2 services | Jumbo frame (9K), VLAN and QinQ, link aggregation (LAG/LACP), FE/GE/10GE/40GE/100GE interfaces, MAC/VLAN/IP-based load balancing, broadcasting storm suppression, L2 broadcasting IGNP snooping V1/V2 and static L2 VPN. | ||
L3 services | Basic services: ARP, IPv4 unicast route forwarding, static route, ECMP, ICMP, VRRP and IP FRR. Static L3 VPN: VRF, L3VPN tunnel and VPN FRR services, etc. | ||
Service slots | 18 (8 high speed slot+10 low speed slot) | 44 (16 high speed slot+28 low speed slot) | 32 (32 high speed slot) |
Access capabilities | 800G | 1.92T | 3.84T |
100GE/OTU4 interfaces | 8 | 16 | 32 |
10GE interfaces | 80 | 192 | 384 |
Subrack sizes (H×W×D) | 531*441*285mm³ | 1022*497* 285mm³ | 1553*441*285mm³ |
Typical power consumption (10GE/100GE) | 650W/1400W | 1050W/2600W | 2050W/5800W |
Device-level protection | Main control switching unit: 1+1 protection Power supply unit: 1+1 protection | Switching unit: 2+1 protection Main control unit: 1+1 protection Power supply unit: 2 groups of 1+1 protection | Switching unit: 4+2 protection Main control unit: 1+1 protection Power supply unit: 4 groups of 1+1 protection |
Main performance | Service interfaces: TDM E1/ch.STM-1/ch.STM-4, CEP STM-1/STM-4, FE (O/E), GE (O/E), 10GE, 40GE, 100GE and PO channelized interfaces Network-level protection: LSP/PW 1+1/1:1 protection, ring protection (including shared ring), dual-homing protection, SD-based inspection protection, FRR protection, VRRP protection and MSP protection. | ||
Cabinet sizes | 2000/2200*600*300mm³ | ||
Power supply | DC: -48V | ||
MTBF/MTTR | >300000 hours/ <0.5hour | ||
Temperature and humidity | Working temperature: 0°C -+45°C Working humidity: 5%~95% | ||
Altitude | <4000 m | ||
Earthquake resistance level | Level 9 | ||
Core and Aggregation Platform - ZTE Enterprise
The ZXCTN 6500 mainly transmits wireless backhaul, VIP and OLT services. It is applied to national backbone, provincial backbone and metro core/aggregation layers.
Wireless backhaul transport: Wireless backhaul services adopts MPLS-TP over ODUk, 2G/3G services L2VPN, LTE services L2VPN+L3VPN, and core/aggregation-layer services L3VPN.
VIP service transport: Enterprise customers/ordinary VIP IP private-line/private network services and TDM private-line services are transmitted in the L2VPN OVER MPLS-TP over ODUk mode. Enterprise customers transmit CBR services in the L1 OVER ODUk mode.
OLT service transport: OLT services adopt L1 OVER ODUk. After reaching core/aggregation POTN nodes, they are sent to the corresponding SR/BRAS.
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.
Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
