Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZTE ZXCTN 9000 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

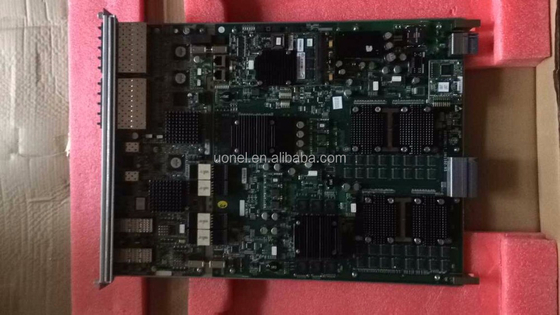

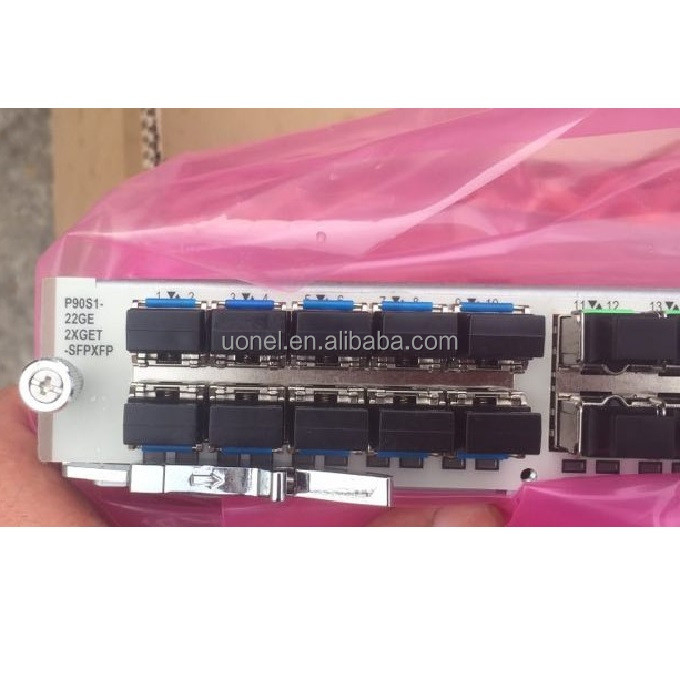

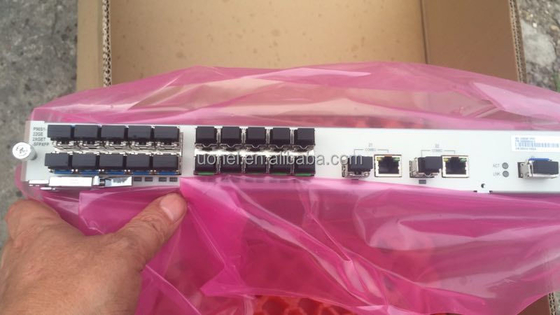

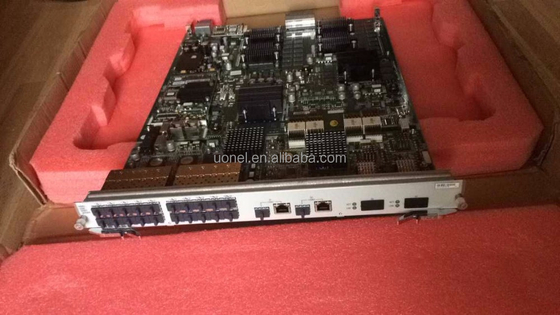

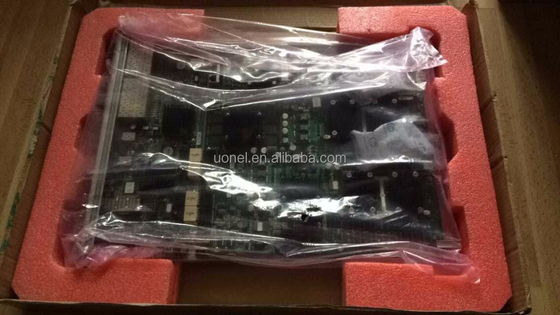

| Number Name: | ZXCTN P90S1-22GE2XGET-SFPXFP | Products Status: | Stock |
|---|---|---|---|
| Voice Protocol: | SIP,H.248 For Option | Port: | Shenzhen |
ZXCTN 9000-E series is new-generation Carrier class Multi-service Packet-based Platform (CMPP) promoted by ZTE to keep with the development trend of IP telecommunication services. Base on IP/MPLS and MPLS-TP, they implement multi-service bearing and provide customers with IP RAN, Metro-E, and FMC end-to-end solution. They help customers to reduce network building cost and maintenance cost, and assist carriers to realize smooth network evolution.
Unified Multi-service Bearing Has Rich Service Features
| Specifications | Models | ZXCTN 9000-18E | ZXCTN 9000-8E PLus | ZXCTN 9000-8E | ZXCTN 9000-5E | ZXCTN 9000-3E | ZXCTN 9000-2E10 | ZXCTN 9000-2E4 Plus | ZXCTN 9000-2E4 |
| Capability | |||||||||
| Service Slots | 18 | 8 | 8 | 5 | 3 | 2×LPC, | 2×LPC, | 2×LPC, | |
| 8×LIC | 4×LIC | 2×LIC | |||||||
| Main Control Redundancy | 1:01 | 1:01 | 1:01 | 1:01 | 1:01 | 1:01 | 1:01 | 1:01 | |
| Switch Fabric Redundancy | 6+2 | 3+1 | 3+1 | 1+1 | NA | NA | NA | NA | |
| Physical | |||||||||
| Rack Unit | 41RU | 22RU | DC: 14RU | DC: 7RU | DC: 4RU | DC: 5RU | DC/AC:4RU | DC: 3RU | |
| AC: 18RU | AC: 8RU | AC: 5RU | AC: 6RU | ||||||
| Dimensions | 1819.6×442×634 | 971.5×442×678.7 | DC:619.5×442×749.4 | DC:308.3×442×740 | DC:175×442×738 | DC: 219.4×442×220 | DC/AC: 175×442×220 | 130.5×442×220 | |
| (H×W×D)mm | AC external: 797.3×442×749.4 | AC:352.8×442×740 | AC:219.4×442×738 | AC: 263.9x442x220 | |||||
| Weights(kg) | <357kg | <140kg | <127kg | <81kg | <53kg | DC:<21kg | DC: <15.5kg | <14.9kg | |
| AC:<26.5kg | AC: <16.8kg | ||||||||
| Service Features | |||||||||
| Synchronize | Synchronous Ethernet (SynE), IEEE 1588v2 | ||||||||
| L2 | Ethernet | Static MAC, Dynamic MAC, SuperVLAN, Smart Group, VLAN, QinQ | |||||||
| POS/CPOS | HDLC, PPP, FR | ||||||||
| ATM | ATM | ||||||||
| E1/CE1 | PPP, FR, ML-PPP, CES | ||||||||
| IP Routing | IPv4 Unicast | ARP/ARP Proxy, Static Route, Policy Based Routing, RIPv1/v2, OSPFv2, IS-ISv4, BGP-4, ECMP | |||||||
| IPv4 Multicast | Static Multicast, IGMP Snooping/Proxy, IGMP v1/v2/v3, PIM-DM/SM/SSM, MSDP, MBGP, Multicast VPN, Controllable Multicast, Policy Based Route (PBR) for Multicast, Graceful Restart for PIM, Multicast Load Balance | ||||||||
| IPv6 Unicast | Static Routing for IPv6, DNS Client v4/v6, Policy Based Routing for IPv6 (PBRv6), RIPng, OSPFv3, IS-ISv6, BGP-4+, ECMPv6 | ||||||||
| IPv6 Multicast | Static Multicast, MLDv1/v2, PIM-DM/SM/SSM, SSM-Mapping, MBGP | ||||||||
| IPv4/IPv6 Interaction | 6in4, 6to4, GRE | ||||||||
| MPLS & Traffic Engineering | MPLS Basic | LDP, LDP FRR, Load-Sharing | |||||||
| MPLS VPN | VPLS, H-VPLS, VPWS, MS-PW, Inter-AS MPLS L2VPN, Inter-AS MPLS L3VPN option A/B/C, VRF Policy Routing, 6PE/6vPE | ||||||||
| MPLS-TE | OSPF TE, IS-IS TE, RSVP-TE, DS-TE, Inter-AS/Area TE, TE FRR | ||||||||
| High Availability(HA) | NSF for IGP/BGP/LDP/RSVP/PIM, NSR for IGP/BGP/LDP, IP FRR, LDP FRR, TE FRR for IP/VPN/VLL/VPLS, VPN FRR, PW Redundancy, VRRP | ||||||||
| Security | ACL, uRPF, MAC Filtering, TCP Control, Port Mirror/Flow Mirror, SSHv2, Netflow, Broadcast Storm Suppression, MD5, IPSec | ||||||||
| SDN Evolution | Openflow, Netconf | ||||||||
| OAM | Ethernet OAM | IEEE 802.1ag, IEEE 802.3ah, ITU-T Y.1731 | |||||||
| MPLS OAM | VPLS MAC Ping, MPLS Ping/Trace Route | ||||||||
| BFD | BFD for Static Routing/Policy Routing, BFD for OSPF/IS-IS/BGP, BFD for VRRP/FRR, BFD for LDP | ||||||||
| NMS | NetNumen U31, CLI, Telnet, SNMP based GUI, RMON, Syslog, NTP | ||||||||
| Power Supply | |||||||||
| DC | Working Voltage(DC) | DC: -72V~-38V | DC: -72V~-38V | DC: -72V~-38V | DC: -72V~-38V | DC: -72V~-38V | DC: -72V~-38V | DC: -72V~-38V | DC: -72V~-38V |
| Power Redundancy(DC) | DC: 11+1 | DC: 5+1 | DC: 2+2 | DC: 1+1 | DC: 1+1 | DC: 1+1 | DC: 1+1 | DC: 1+1 | |
| AC | Working Voltage(AC) | AC: 90V~286V | AC: 90V~286V | AC: 90V~264V | AC: 90V~264V | AC: 90V~264V | AC: 90~286V | AC: 90~286V | NA |
| HVDC: 192V~400V | HVDC: 192V~400V | HVDC: 216V~312V | HVDC: 216V~312V | HVDC: 216V~312V | |||||
| Power Redundancy(AC) | AC: 8+8 | AC: 4+4 | AC: 3+3 | 2+2 | AC: 1+1 | AC: 1+1 | AC: 1+1 | AC: 1+1 | NA | |
| Environments | |||||||||
| Working Temperature | -5~45°C | -5~45°C | -5~45°C | -5~45°C | -5~45°C | -15~55°C | -15~65°C | -15~65°C | |
| (Naked) | (Naked) | (Naked) | |||||||
| -40~50°C | -40~55°C | -40~55°C | |||||||
| (With Outdoor Cabinet) | (With Outdoor Cabinet) | (With Outdoor Cabinet) | |||||||
| Working Humidity | 5%~90% | 5%~90% | 5%~90% | 5%~90% | 5%~90% | 5%~95% | |||
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
