Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZTE ZXMP S330 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |

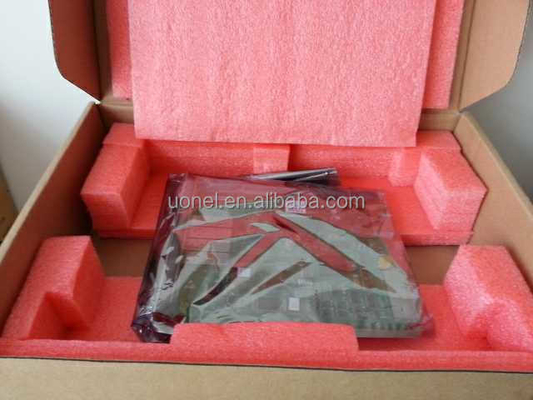

| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Type: | Fiber Fusion Splicer | Product Name: | ZTE ZXMP S330 |
|---|---|---|---|
| MSTP: | 2.5G/622M | Optical Interface: | STM-16/4/1 |
| Electrical Interface: | STM-1/E3/T3/E1/T1 | Protection Level: | MSP 1+1/1:1/SNC/DNI |
| Dimension: | 2200mm(H)*600mm(W)*300mm(D) | Access Capability:: | 640*E1.18*10G 72*2.5G |
| Port: | Shenzhen |

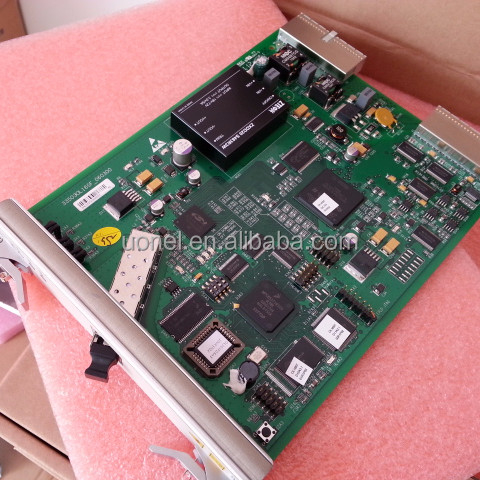

OL16(L-16.1,LC) : STM-16 Optical Line Board(L-16.1,LC)
ZXMP S330 adopts complicated technologies and design ideas, absorbs ZTE’s patented technologies and experience in the SDH field, combines network service diversification and network structure change and endows SDH equipment with new technical connotation. Therefore, it is the enhanced STM-16/64 equipment integrating ADM, DXC and IP/ATM functions.
As the 2.5G/10G multiservice transmission platform, ZXMP S330 is the ideal broadband transmission network equipment due to powerful service cross & dispatching function, plentiful data service applications, excellent scalability and good protection mechanism. ZXMP S330 can make service interconnection and interworking with ZTE’s other MSTP equipments to implement high-efficiency service integration, and can be managed by NetNumen™ U31 just like other equipments so as to provide highest performance-cost-rate solution for carriers. ZXMP S330 is applied to LH backbone network or metro network backbone/convergence layer.
| ZTE ZXMP S330 Board List: | |
| MB | OIS4*2(L-4.2,SC) |
| FAN | OIS4*2(S-4.1,SC) |
| PDB(back) | OL1/4*4(2*L-1.1+2*L-4.1,LC) |
| PDB(back,blue) | OL1/4*4(2*L-1.2+2*L-4.2,LC) |
| 2.0m-300mm-B(blue) | OL1/4*4(2*S-1.1+2*S-4.1,LC) |
| 2.0m-600mm-B | OL1/4*4(3*L-1.1,LC) |
| 2.2m-300mm-B(blue) | OL1/4*4(3*L-1.2,LC) |
| 2.2m-600mm-B | OL1/4*4(3*L-4.1,LC) |
| RACK-SET-S-2.0m-300mm-B(Blue) | OL1/4*4(3*L-4.2,LC) |
| RACK-SET-S-2.0m-600mm-B | OL1/4*4(3*S-1.1,LC) |
| RACK-SET-S-2.2m-300mm-B(Blue) | OL1/4*4(3*S-4.1,LC) |
| RACK-SET-S-2.2m-600mm-B | OL1/4*4(4*L-1.1,LC) |
| ZJA(back mounted) | OL1/4*4(4*L-1.2,LC) |
| PDB(front) | OL1/4*4(4*L-4.1,LC) |
| PDB(front,blue) | OL1/4*4(4*L-4.2,LC) |
| ZJA(front mounted) | OL1/4*4(4*S-1.1,LC) |
| BIE1x21 | OL1/4*4(4*S-1.1-1310nm Tx/1550nm Rx,LC) |
| BIE3*3 | OL1/4*4(4*S-1.1-1550nm Tx/1310nm Rx,LC) |
| BIFE | OL1/4*4(4*S-4.1,LC) |
| BIS1 | OL16(CWDM-1470nm,LC) |
| CSB | OL16(CWDM-1490nm,LC) |
| EIFE*4 | OL16(CWDM-1510nm,LC) |
| EIFE*6 | OL16(CWDM-1530nm,LC) |
| EP3*3 | OL16(L-16.1,LC) |
| EPE1*21(120) | OL16(L-16.2,LC) |
| EPE1*21(75) | OL16(L-16.2JE,LC) |
| EPE1B*21 | OL16(L-16.2p,LC) |
| EPT1*21(TU11) | OL16(L-16.2U,LC) |
| EPT1*21(TU12) | OL16(S-16.1,LC) |
| ESE1*21(120/100) | PWR |
| ESE1*21(75) | SC |
| ESE3*3 | SCI-120 |
| ESS1*2 | SCI-75 |
| LP1*1 | SED |
| LP1*2 | SED(2*L-1.1,LC) |
| LP4*1 | SED(2*L-1.2,LC) |
| LP4*2 | SED(2*S-1.1,LC) |
| NCP | SFE*6(GFP) |
| NCPI | SFE*6(PPP) |
| OIS1*1(L-1.1,SC) | SFP-1.25G(L-G.1,LC) |
| OIS1*1(L-1.2,SC) | SFP-1.25G(L-G.2,LC) |
| OIS1*1(S-1.1,SC) | SFP-1.25G(M-G.8,LC) |
| OIS1*2(L-1.1,SC) | SFP-1.25G(S-G.1,LC) |
| OIS1*2(L-1.2,SC) | TFE*8 |
| OIS1*2(S-1.1,SC) | TFE*8(2*FE-L1.1,LC) |
| OIS1*4(L-1.1,LC) | TFE*8(2*FE-L1.2,LC) |
| OIS1*4(L-1.2,LC) | TFE*8(2*FE-S1.1,LC) |
| OIS1*4(S-1.1,LC) | OBA12(mini,LC) |
| OIS1*6(L-1.1,LC) | OBA14(external,input-6,SC) |
| OIS1*6(L-1.2,LC) | OBA14(mini,LC) |
| OIS1*6(S-1.1,LC) | OBA17(external,SC) |
| OIS4*1(L-4.1,SC) | OBA17(mini,LC) |
| OIS4*1(L-4.2,SC) | OBA19(mini,LC) |
| OIS4*1(S-4.1,SC) | OPA38(mini,LC) |
| OIS4*2(L-4.1,SC) | ZXMP S330 manual(ch) |
| ZXMP S330 manual(en) |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.
Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
