| ODU Insertion Loss: | < 10 DB | ODU Max. Difference: | < 3 DB |
|---|---|---|---|
| ODU Channel Spacing: | 100 GHz | ODU Optical Return Loss: | > 40 DB |
| ODU Working Wavelength Range: | 1529~1561 Nm | ODU Adjacent Channels: | > 25 DB |
| ODU Non-adjacent Channels: | > 30 DB | ODU Polarization-related Loss: | < 0.5 DB |
| ODU Polarization-mode Dispersion: | < 0.5 Ps | ODU -1dB Bandwidth: | > 0.2 Nm |
Hong Telecom Equipment Service LTD (HongTelecom) is formal distributor of Huawei, ZTE and Emerson. Our team come from Huawei, ZTE, Emerson, CISCO, Alcatel, Ericsson, Fiberhome mostly. So we have established very good cooperative relationship with Huawei, Ericsson, Nokia, NSN, ZTE, Vertiv, Emerson, Fiberhome, Cisco, Juniper, HPE, DELL, Alcatel-Lucent, Nortel, H3C. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.
Hong Telecom Equipment Service LTD (HongTelecom) is a leading professional equipment distributor and service provider in telecommunication infrastructure and solution field, and now is extending our business to ICT (Information and Communication Technology) field.
HongTelecom offer full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

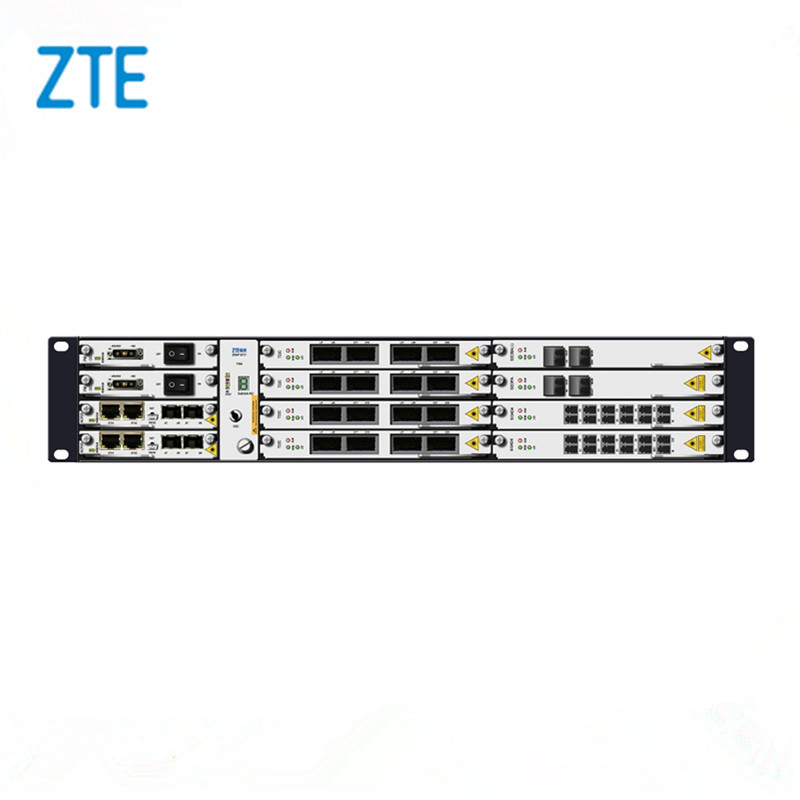

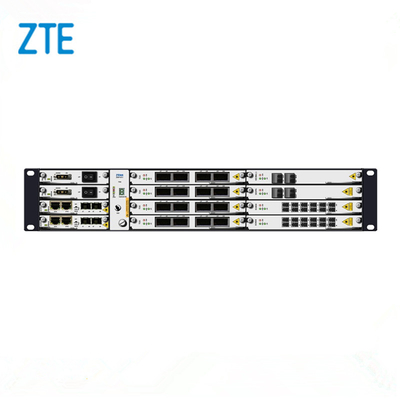

The ZTE ZXMP M721
1. High integration

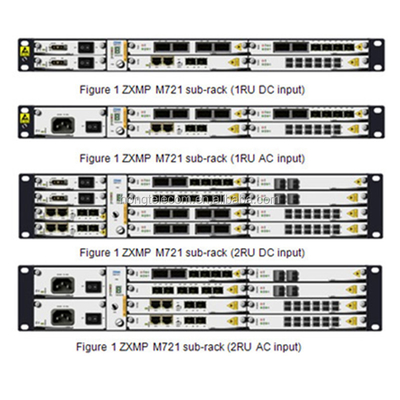

ZXMP M721 sub-rack is a highly integrated compact iOTN product.Most of the boards occupy only one sinlge slot.Sub-rack heights are 1RU,2RU,3RU and 6RU,which can effectively save room space and power consumpiton,thus significantly reducing operating and maintenace costs and adapting to the requirement for green network decreasing.
2. Powerful transmission performance
40×10G/100G DWDM application, 18×2.5G or 10×2.5G+8×10G CWDM application and systems smooth upgrade.
DWDM system supports multi-span transmission without electrical relay (18×22dB, 7×30dB, 1×45dB etc.). 2.5G CWDM can support 28dB transmission, and 10G CWDM can reach 80KM.
3. Diversity access service type
ZXMP M721 can access any-rate-service (2Mbit/s – 100Gbit/s), and supports intelligent cognition, the port supports automatic identification of type of services.
* SDH service, E1,STM-1/4/16/64/256, OC-3/12/48/192, POS.
* Ethernet service, FE, GE, 10GE,40GE,100GE.
* Storage and video streaming service, 1G/2G/4G/8G/10G FC, ESCON, FICON, DVB-ASI, SD-SDI/HD-SDI/SDI-3G,InfiniBand 2.5G,InfiniBand 5G,InfiniBand 10G.
* OTN, OTU1, OTU2, OTU2e, OTU1f,OTU3,OTU4.
Other service,CPRI option2,CPRI option3,CPRI option4,CPRI option5,CPRI option6,CPRI option7.
4. Universal switching platform
ZXMP M721 adapts the packet OTN architecture.The brand-new All in One design can support OTN/Packet/TDM universal switching.It can implement access,swtiching and transmission of various service in a unified way.It greatly relieves IP bandwidth pressure and performs intelligent grooming of IP traffic.Total switching capacity of switching sub-rack(CX66) is 840Gbit/s at most.
5. L2 Function
ZXMP M721 supports L2 function,8×FE/GE or 4×FE/GE+4×10GE→10GE.
6. APO Function
ZXMP M721 supports APO function based on the OCH layer an the OMS section.
7. Flexible service grooming
M721 supports DSS (Distributed Service Switch platform) based on ODU0/ODU1/ODUflex.
Services aggregation: 4-10×Any-rate-service→OTU1, 4-22×Any-rate-service→OTU2.
10G-any → OTU2, support single channel, double channels, integrated protection OTU cards.
8. Synchronization
ZXMP M721 supports out-band / in-band 1588V2 transmission and synchronous Ethernet transmission.
9. Reliable protection scheme
ZXMP M721 supports control card/power card 1+1 backup and OMS/OCH 1+1,VC-12 1+1 and ODUk 1+1 protection. All the protection switching time of OMS 1+1/OCH 1+1,VC-12 1+1 and ODUk 1+1 are less than 50ms in compliance with ITU-T standards.
10. Optional OSC/ESC
ZXMP M721 supports OSC (Optical Supervisory Channel) and ESC (Electrical Supervisory Channel) providing flexibility for deployment.
The ZTE ZXMP M721:
ZXMP M721 DX61 ( DC/AC Power )
ZXMP M721 DX62 ( DC/AC Power )
ZXMP M721 DX63 ( DC Power )
ZTE ZXMP M600
ZTE ZXMP M820
ZTE ZXWM M900
ZTE ZXONE 8300
ZTE ZXONE 8700
ZTE ZXONE 9700
