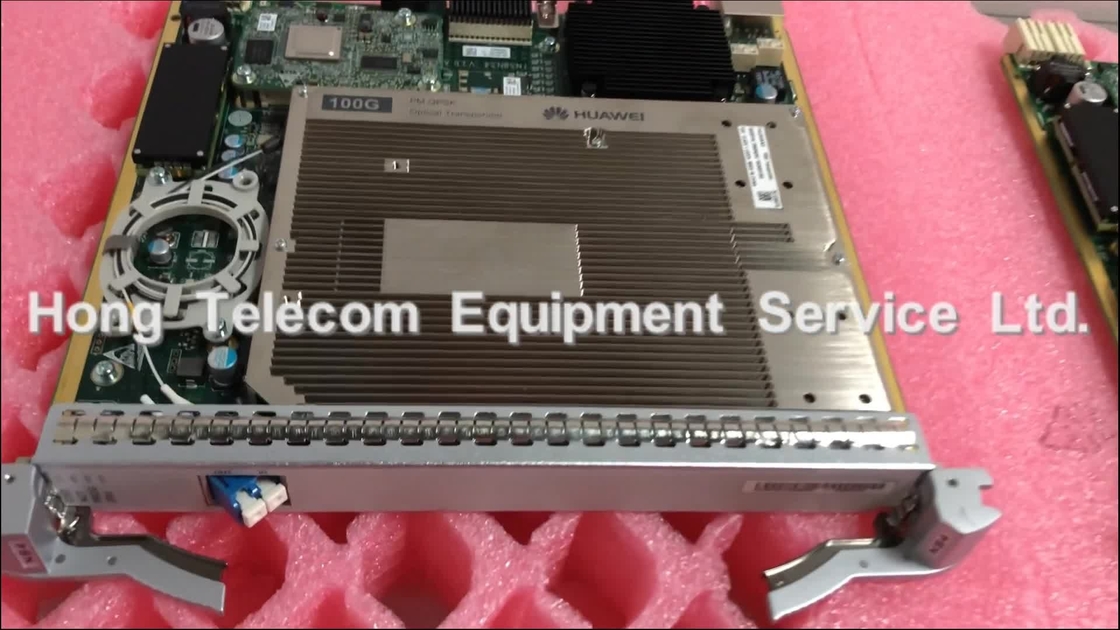

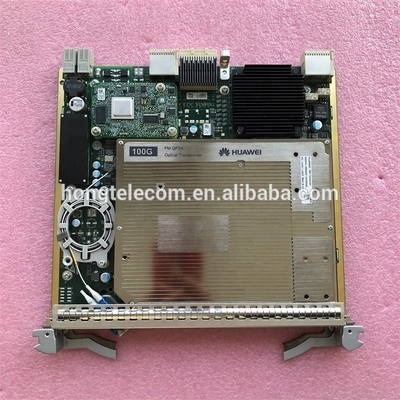

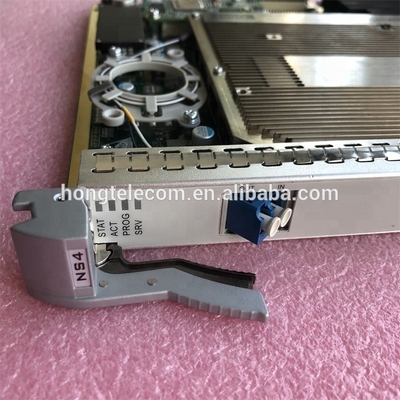

03031GGX TN58NS4T61 100Gbit/s Line Service Processing Board OSN 8800 TN58NS4

Name: 03031GGX TN58NS4T61 100Gbit/s Line Service Processing Board OSN 8800 TN58NS4
Brand: Huawei
SKU: OptiX OSN 8800
Availability: InStock
ISBN: 13955742

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OptiX OSN 8800

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Model Number:	TN58NS4T61	OSN 8800 T16 Dimensions (mm):	498 (W) X 295 (D) X 450 (H)
OSN 8800 T32 Dimensions (mm):	498 (W) X 295 (D) X 900 (H)	OSN 8800 T64 Dimensions (mm):	498 (W) X 580 (D) X 900 (H)
DWDM Wavelength:	80-ch (max)	CWDM Wavelength:	8-ch (max)
Max. Rate Per Channel:	100Gbit/s (OTU4)	Service Types Supported:	SDH, SONET, Ethernet, SAN, OTN, Video
Max. Capacity Per PID Group:	200 Gbit/s	Optical Power Management:	ALS, AGC, ALC, APE, IPA, OPA

03031GGX TN58NS4T61 100Gbit/s Line Service Processing Board(ULH,SDFEC2,wDCM, Coherent,Tunable,50GHz,LC)

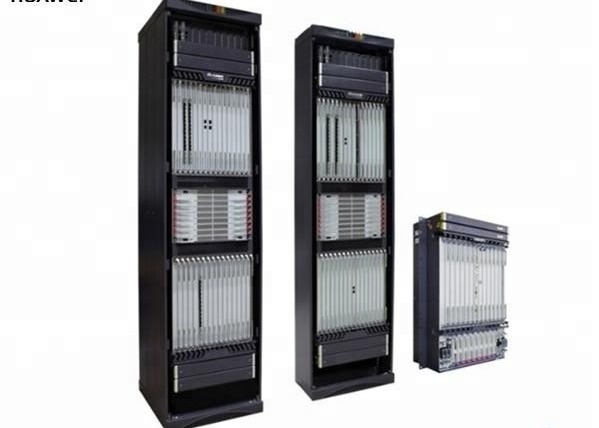

The OptiX OSN 8800 T64 / T32 / T16 can be configured as a complete OTN end-to-end network. It can also be used with the OptiX BWS 1600G, OptiX OSN 1800, OptiX OSN 9800, and with NG-SDH / PTN or Datacom Equipment, mixed network, to achieve a complete transmission solution.

Specifications		OSN 8800 T16	OSN 8800 T32	OSN 8800 T64
Dimensions (mm)		498 x 295x 450 (W) (D) (H)	498 x 295 x 900 (W) (D) (H)	498 x 580 x 900 (W) (D) (H)
Number of slots for service boards		16	32	64
Switch	Optical	1 to 9-degree ROADM
	Electrical	1.6T ODUk(k=0, 1, 2, 2e, 3, 4, flex) 640G VC-4 and 20G VC-3/VC-12 800G Packet	Enhanced subrack: 3.2T ODUk(k=0, 1, 2, 2e, 3, 4, flex)1.28T VC-4 and 80G VC-3/VC-12 1.6T Packet General subrack: 1.28T ODUk(k=0, 1, 2, 2e, 3, flex)1.28T VC-4 and 80G VC-3/VC-12	Enhanced subrack: 6.4T ODUk(k=0, 1, 2, 2e, 3, 4, flex)1.28T VC-4 and 80G VC-3/VC-12 General subrack: 2.56T ODUk(k=0, 1, 2, 2e, 3, flex)1.28T VC-4 and 80G VC-3/VC-12
Wavelength range		DWDM: 1529.16 nm to 1560.61 nm (Band-C, ITU-T G.694.1) CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2)
Max. rate per channel		100Gbit/s (OTU4)
Max. distance		Multi-span transmission (without electrical regeneration): 32 span x 22dB/span (10G), 25 span x 22 dB/span (40G), 20 span x 22 dB/span (100G) Ultra-long single-span transmission: 1 span x 81 dB/span (10G), 1 span x 71 dB/span (40G)
Service types supported		SDH, SONET, Ethernet, SAN, OTN, Video
Line rate		2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s
Max. capacity per PID group		200 Gbit/s
Topology		Point-to-point, chain, star, ring, ring-with-chain, tangent ring,intersecting ring and mesh
Redundancy and Protection	Network level protection (OTN)	Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, tributary SNCP, SW SNCP, ODUk SPRing protection, OWSP
	Network level protection (OCS)	Linear MSP, MSP ring, transoceanic MSP ring, SNCP, SNCTP
	Network level protection (Ethernet and packet)	DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, PW APS, STP and RSTP, Tunnel APS, VLAN SNCP	DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, PW APS, STP and RSTP, Tunnel APS, VLAN SNCP	DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, STP and RSTP, VLAN SNCP
	Equipment level protection	Power redundancy, fan redundancy, cross-connect board redundancy, system control and communication board redundancy, centralized clock board redundancy, AUX Board 1+1 Redundancy
Optical power management		ALS, AGC, ALC, APE, IPA, OPA
Synchronization		Synchronous Ethernet clock IEEE 1588v2 2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source External time source (1PPS+TOD)
ASON		An OTN network supports the Optical-Layer ASON and electrical-Layer ASON. An OCS network supports the SDH ASON feature.
Operation Environment		Subrack temperature: Long-term operation: 5°C (41 °F) to 45°C (113 °F) Short-term operation: -5°C (23 °F) to 55°C (131 °F) Relative humidity: Long-term operation: 5% to 85% Short-term operation: 5% to 90%

Features

1. Support the mass IP service access, centralized scheduling and management, eliminating the previous multi-sub-assembly of the network; save 80 / 100G or 32/64 * 100G; % Of the footprint, 55% reduction in power per unit bandwidth, eliminating the ODF fiber switch, high reliability.

2. 3.2T / 6.4T-bit non-blocking electrical cross-connect capacity to support complex networking, mass business centralized scheduling; support 2/4/9/20-dimensional ROADM optical cross-linking; support optical hybrid cross, flexible wavelength / sub-wavelength level Business cross-scheduling, rapid business deployment, lower CAPEX. The CDC ROADM (Colorless & Directionless & Gridless ROADM), the industry's first compact architecture, simplifies the configuration of optical ASON nodes.

3. Mature commercial 80 * 100G system, unlimited bandwidth transmission; the industry's only OCH & ODUk photoelectric double intelligent, photoelectric linkage of the new model, with higher reliability.

4. MS-OTN features, centralized cross-board unified support for OTN / SDH / PKT cross; OTN, SDH and PKT business flexible combination to enhance the board and bandwidth efficiency.

5. Support submarine cable transmission, the leading 100G submarine cable program, support 100G without electricity relay 7000 km transmission.

6. Provide 2M, 1588 V2 and synchronous Ethernet clock transmission, fully meet the WCDMA, TD-SCDMA, CDMA2000 and LTE / LTE-A clock accuracy requirements.

7. Support 10G / 40G / 100G arbitrary channel OSNR optical power / BER monitoring, real-time optical parameters on-line monitoring, enhance network operation and maintenance efficiency.

8. Integrated OTDR function, through the monitoring board for online OTDR detection of fiber parameters, quickly locate the fiber failure point, locate the fiber degradation point.

9. Support the evolution of T-SDN, enhance service delivery efficiency, simplify network operation and maintenance, and enhance network intelligence. At the same time can also be achieved through the T-SDN cross-layer cross-domain network resources, unified scheduling and network intelligent management, and can support a wealth of APP applications and business innovation.
