| Model Number: | OptiX RTN 980L |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| OptiX RTN 980L Chassis: | 5U | Radio Directions: | 16 |
|---|---|---|---|
| Service Interface Type 1: | E1 Interface | Service Interface Type 2: | STM-1 Optical/electrical Interface |
| Service Interface Type 3: | STM-4 Optical Interface | Service Interface Type 4: | FE Optical/electrical Interface |
| Service Interface Type 5: | GE Optical/electrical Interface | Service Interface Type 6: | 2.5 GE Optical Interface |
| Service Interface Type 7: | 10 GE Optical Interface | Pluggable: | Supported |
The OptiX RTN 980L is a long haul IP radio transmission system developed by Huawei. It provides a large capacity and supports long haul radio transmission. It mainly applies to long haul trunk and metropolitan backbone networks.
The OptiX RTN 980L long haul radio solution is available in the split and integrated (full indoor) models. RFUs and IDUs are not distinguished in the split and integrated solutions. This document focuses on the split solution.
The OptiX RTN 980L can transmit Ethernet and SDH/PDH services separately or in hybrid mode. The OptiX RTN 980L supports N+0 (N ≤ 16) and N+1 (N ≤ 11) configurations for microwave links. Two cascaded OptiX RTN 980Ls support 24+0 configurations for radio links through one antenna. The OptiX RTN 980L applies to the following scenarios:
Large-capacity and long haul trunk transmission
Large-capacity microwave ring network
Aggregation and backhaul on a mobile network
The OptiX RTN 980L can form a chain or ring network and aggregate services from other RTN short haul microwave equipment through its air interface.

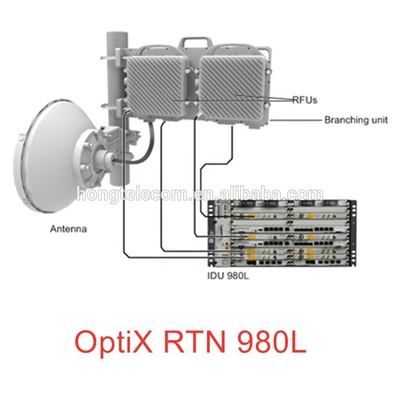

The OptiX RTN 980L long haul system is composed of a powerful TDM/Hybrid/Packet integrated IDU 980L, a high-performance high-power radio frequency unit (RFU), and a scalable branching unit (BU).
OptiX RTN 980L supports split structure.
An IDU connects to an RFU through an IF cable.
An RFU is directly mounted on a BU.
A BU connects to an antenna through a flexible waveguide. In space diversity (SD) mode, a BU connects to an SD antenna through an elliptical waveguide or an SD cable.

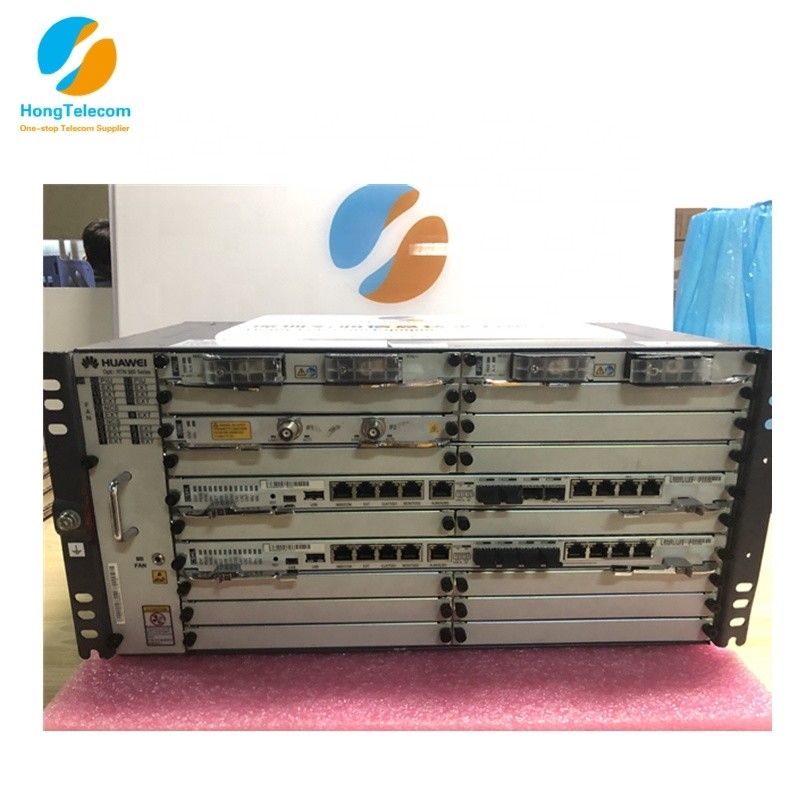

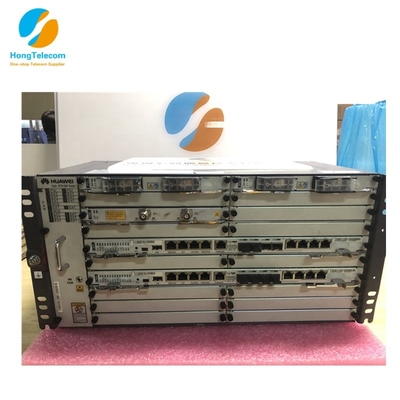

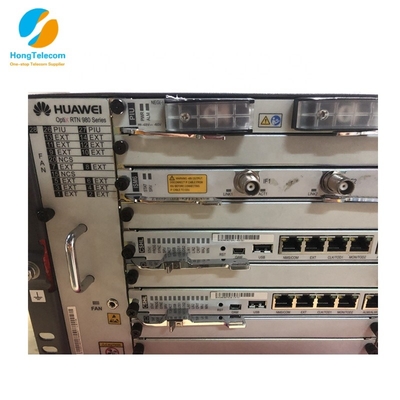

IDU 980L
The IDU 980L is the indoor unit of the OptiX RTN 980L Long Haul system. It receives and multiplexes services, performs switching and IF processing of services, and provides system control and communication functions.
IDU 980L Item | Description |
Chassis height | 5U |
Pluggable | Supported |
The maximum number of radio directions (Long Haul) | 16 |
RF configuration mode (Long Haul) | N+0 non-protection N+1 protection (N ≤ 11) 1+1 FD protection XPIC configuration |
Service interface type | E1 interface STM-1 optical/electrical interface STM-4 optical interface FE optical/electrical interface GE optical/electrical interface 2.5 GE optical interface 10 GE optical interface |
RFU
An RFU is the transceiver of the OptiX RTN 980L Long Haul system. It performs functions such as frequency conversion and amplification of signals.
RFUs are available in two types according to support space diversity receiver or not:
RFU-SD: space diversity (SD) receiver and IF combination supported. It provides three RF ports: Tx, Main Rx and SD Rx.
RFU-NonSD: SD not supported. It provides two RF ports: Tx and Rx. It provides a cost-effective solution for scenarios with relatively good propagation conditions.
Mechanical specifications of an RFU-SD and an RFU-NonSD are the same.
The appearance of RFUs at the 5 GHz frequency band is different from that of RFUs at other frequency bands.
OptiX RTN 980L Item | Description |
Series type name | XMC-LH |
Frequency band | 5/L6/U6/7/8/11 GHz |
Modulation scheme | QPSK/16QAM/32QAM/64QAM/128QAM/256QAM/512QAM/1024QAM/2048QAM |
Channel spacing | Channel spacing |
Huawei's RTN 900 series is the industry's first TDM/Hybrid/Packet/Routing integrated IP microwave product. It can meet voice transmission requirements in the 2G era, voice and data transmission requirements in the 3G era, as well as broadband data transmission requirements in the LTE era, effectively protecting operator investments in infrastructure.
OptiX RTN 900 Product Family
The OptiX RTN 900 series provide various service interfaces and can be installed easily and configured flexibly. The OptiX RTN 900 series provide a solution that can integrate TDM microwave, Hybrid microwave, and Packet microwave technologies according to the networking scheme for the sites, achieving smooth upgrade from TDM microwave to Hybrid microwave, and from Hybrid microwave to Packet microwave. This solution meets the transmission requirements of 2G, 3G, and LTE services while also allowing for future network evolution and convergence.
There are some types of OptiX RTN 900 Packet microwave products: OptiX RTN 910A, OptiX RTN 905, OptiX RTN 905 s, OptiX RTN 910, OptiX RTN 950, OptiX RTN 950A, and OptiX RTN 980. Users can choose the product best suited for their site.
HUAWEI RTN905
HUAWEI RTN910
HUAWEI RTN950A
HUAWEI RTN980
RTN905 | RTN910 | RTN950A | RTN980 | ||||
Support frequency | 6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz | ||||||
Channel spacing | 3.5/7/14/28/40/50/56MHz | ||||||
Maximum RF direction | 1U/2 | 2U/6 | 2U/6 | 5U/14 | |||
Maximum throughput | > 600Mbps | ||||||
Packet switching capability | 8Gbps | 10Gbps | 10Gbps | 22Gbps | |||
Interface Type | E1/STM-1/FE/GE | E1/STM-1/FE/GE | E1/STM-1/FE/GE | E1/STM-1/STM-4 /FE/GE | |||
IEEE1588v2 | SUPPORT | ||||||
Working environment | Working temperature: IDU -5℃~+60℃ ; ODU -35℃~+55℃ Relative humidity: IDU 5%~95% ,ODU 5%~100% | ||||||
Power supply range | DC Power -38.4V ~ -57.6V AC Power 220V | ||||||
IDU Weight | 2.7kg | 5.4kg | 5.4kg | 15.4kg | |||
