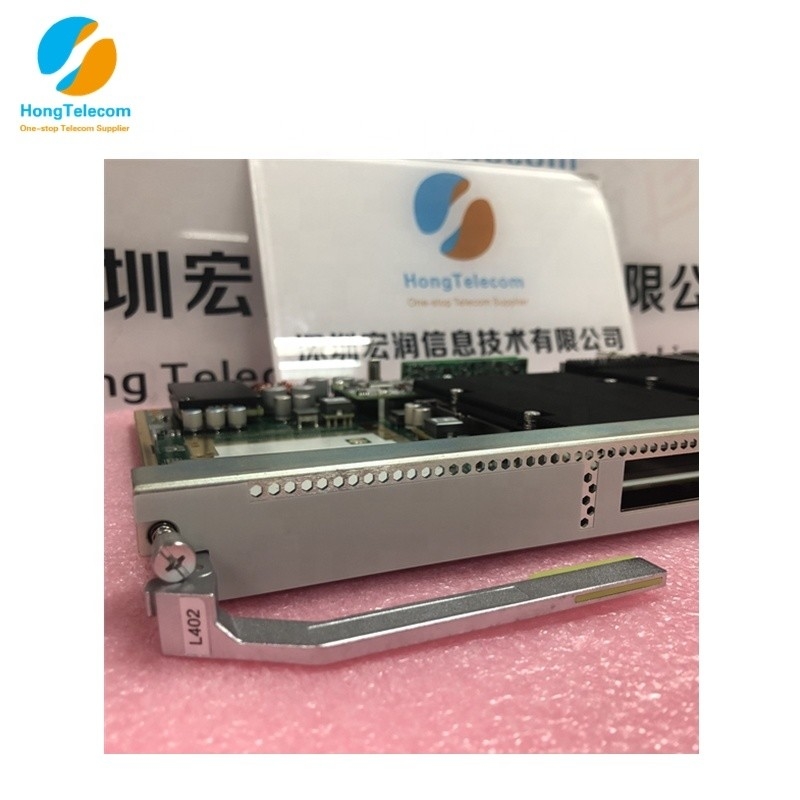

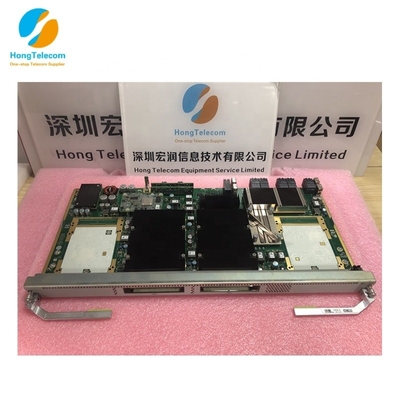

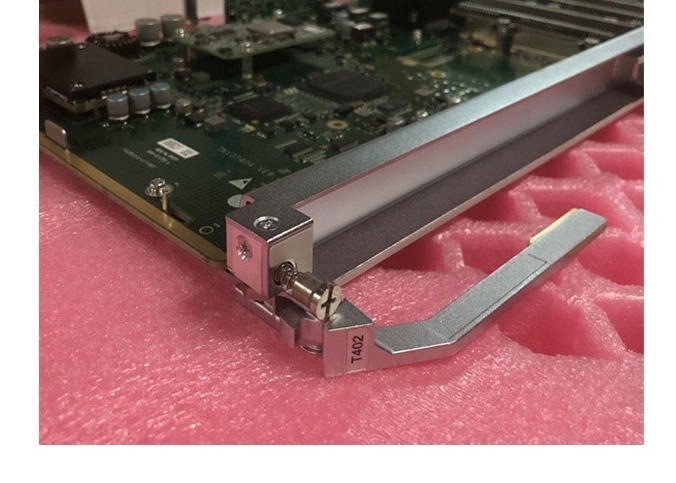

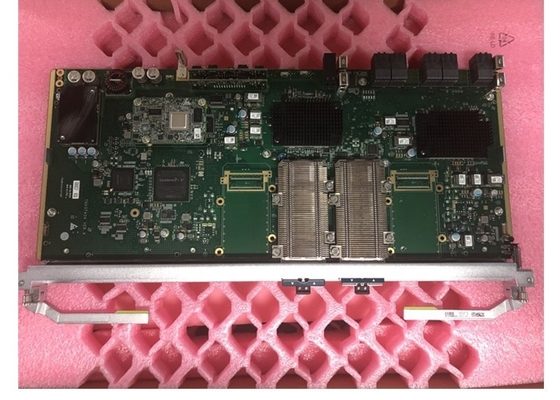

DWDM OSN 9800 2*100G L402 board 02312LPL TNX5L402C02

Part number :02312LPL-001

Model: TNX5L402C02-001

Description: 2*100G Line business processing board (CFP)(2*100G CFPT51,SLH,SDFEC2,Coherent,Tunable,Extended C Band,-5dBm-0dBm,-16dBm,Fixed)

Huawei Optix OSN 9800 M24 boards

New platform best matching metro scenarios

 * Provides 24 slots for service boards and supports up to a 2.4T/4T cross-connect capacity.

* 16 U high and compact. Supports 1+1 63A, decreasing power consumption.

Flexible platform

* Supports the unified grooming of ODUk/VC/Packet services.

* Implements optical-electrical integration, so that optical-layer and electrical-layer boards can share the same subrack.

* Supports compatibility with 5.5 U and 11 U boards and 10G multi-function boards.

* Provides 19-inch and 21-inch cabinets and open racks.

Future-oriented evolution

* Software supports smooth evolution to TSDN.

* Hardware supports smooth evolution to single-slot 1T.
