Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OptiX OSN 8800 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| OSN 8800 T16 Dimensions (mm): | 498 (W) X 295 (D) X 450 (H) | OSN 8800 T32 Dimensions (mm): | 498 (W) X 295 (D) X 900 (H) |
|---|---|---|---|
| OSN 8800 T64 Dimensions (mm): | 498 (W) X 580 (D) X 900 (H) | DWDM Wavelength: | 80-ch (max) |
| CWDM Wavelength: | 8-ch (max) | Max. Rate Per Channel: | 100Gbit/s (OTU4) |
| Service Types Supported: | SDH, SONET, Ethernet, SAN, OTN, Video | Line Rate: | 2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s |
| Max. Capacity Per PID Group: | 200 Gbit/s | Optical Power Management: | ALS, AGC, ALC, APE, IPA, OPA |
OptiX OSN 8800 is mainly used in national trunk lines, regional / provincial trunk lines and metropolitan area networks. It integrates the functions of ROADM, T-bit electrical cross, 100M-100G full-grain scheduling, , 40G / 100G transmission, rich management and protection functions, for operators to build end-to-end OTN / WDM backbone transmission solutions to achieve large-capacity scheduling and ultra-wideband intelligent transmission.
The OptiX OSN 8800 T64 / T32 / T16 can be configured as a complete OTN end-to-end network. It can also be used with the OptiX BWS 1600G, OptiX OSN 1800, OptiX OSN 9800, and with NG-SDH / PTN or Datacom Equipment, mixed network, to achieve a complete transmission solution.

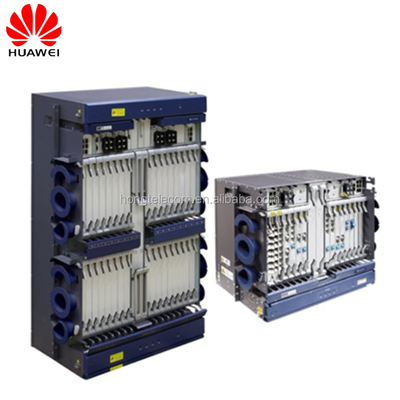

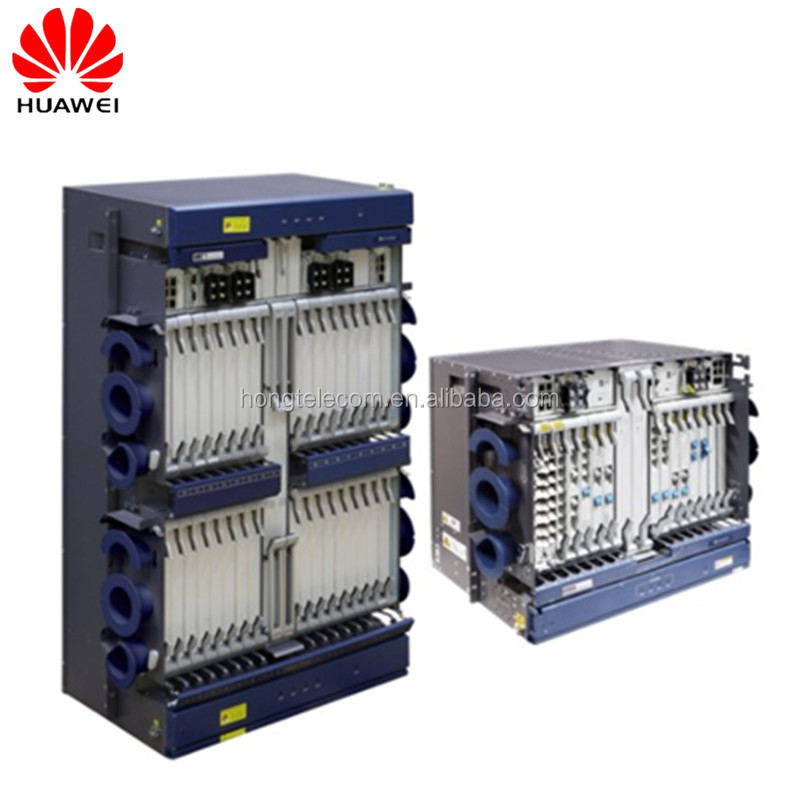

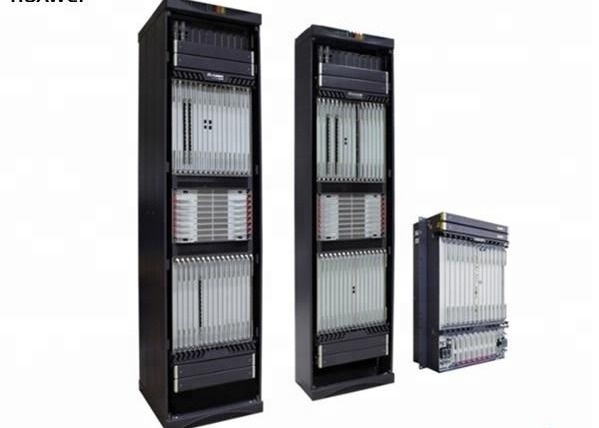

HUAWEI OSN 8800 series
The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network.
The OptiX OSN 8800 T16 mainly applies to the metropolitan convergence layers. The OptiX OSN 8800 T32 and OptiX OSN 8800 T64 mainly apply to the backbone or metropolitan core layer.
The OptiX OSN 8800 can interconnect with the NG SDH equipment to form a hybrid network, which results in a complete transport solution. The OptiX OSN 8800 intelligent optical switching platform (the OptiX OSN 8800 for short) functions as optical core switching (OCS) equipment. It is mainly used as key service grooming nodes at national backbones, provincial backbones, and metropolitan area network (MAN) backbones.
The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN).
1. Support the mass IP service access, centralized scheduling and management, eliminating the previous multi-sub-assembly of the network; save 80 / 100G or 32/64 * 100G; % Of the footprint, 55% reduction in power per unit bandwidth, eliminating the ODF fiber switch, high reliability.
2. 3.2T / 6.4T-bit non-blocking electrical cross-connect capacity to support complex networking, mass business centralized scheduling; support 2/4/9/20-dimensional ROADM optical cross-linking; support optical hybrid cross, flexible wavelength / sub-wavelength level Business cross-scheduling, rapid business deployment, lower CAPEX. The CDC ROADM (Colorless & Directionless & Gridless ROADM), the industry's first compact architecture, simplifies the configuration of optical ASON nodes.
3. Mature commercial 80 * 100G system, unlimited bandwidth transmission; the industry's only OCH & ODUk photoelectric double intelligent, photoelectric linkage of the new model, with higher reliability.
4. MS-OTN features, centralized cross-board unified support for OTN / SDH / PKT cross; OTN, SDH and PKT business flexible combination to enhance the board and bandwidth efficiency.
5. Support submarine cable transmission, the leading 100G submarine cable program, support 100G without electricity relay 7000 km transmission.
6. Provide 2M, 1588 V2 and synchronous Ethernet clock transmission, fully meet the WCDMA, TD-SCDMA, CDMA2000 and LTE / LTE-A clock accuracy requirements.
7. Support 10G / 40G / 100G arbitrary channel OSNR optical power / BER monitoring, real-time optical parameters on-line monitoring, enhance network operation and maintenance efficiency.
8. Integrated OTDR function, through the monitoring board for online OTDR detection of fiber parameters, quickly locate the fiber failure point, locate the fiber degradation point.
9. Support the evolution of T-SDN, enhance service delivery efficiency, simplify network operation and maintenance, and enhance network intelligence. At the same time can also be achieved through the T-SDN cross-layer cross-domain network resources, unified scheduling and network intelligent management, and can support a wealth of APP applications and business innovation.
HUAWEI PTN 3900
HUAWEI PTN 1900
HUAWEI Metro 100
Hong Telecom Equipment Service LTD(HongTelecom) is a leading professional equipment distributor and service provider in telecommunication infrastructure and solution field, and now is extending our business to ICT (Information and Communication Technology) field.
Hong Telecom Equipment Service LTD (HongTelecom) team come from Huawei, ZTE, Emerson, CISCO, Alcatel, Ericsson, Fiberhome mostly. So we have established very good cooperative relationship with Huawei, Ericsson, Nokia, NSN, ZTE, Vertiv, Emerson, Fiberhome, Cisco, Juniper, HPE, DELL, Alcatel-Lucent, Nortel, H3C. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.
Hong Telecom Equipment Service LTD (HongTelecom) offer full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.
1. 3-7 Working days after received the payment.
2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )
1. Original HUAWEI Carton Package.
2. As customers' requirement.
