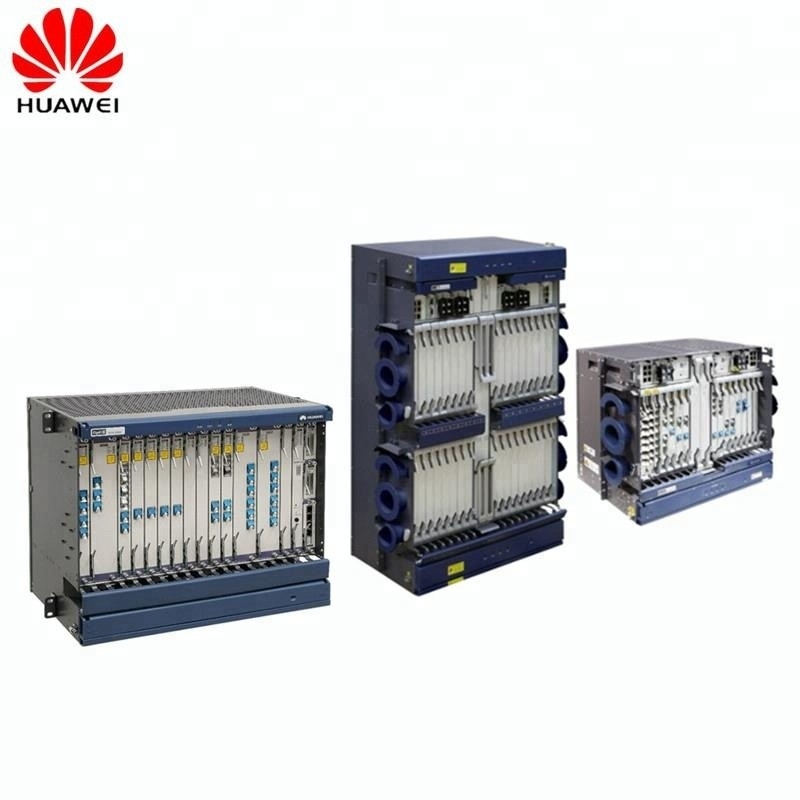

03030YHP TN12MR8V01 TN12MR8V OSN8800 UPS huawei MR8V

03030YHP TN12MR8V01 TN12MR8V OSN8800 UPS huawei MR8V

  • 03030YHP TN12MR8V01 TN12MR8V OSN8800 UPS huawei MR8V
03030YHP TN12MR8V01 TN12MR8V OSN8800 UPS huawei MR8V
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: OSN 8800 UPS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
OSN8800 UPS Dimensions: 498 Mm (W)x295 Mm (D)x450 Mm (H) Weight (empty Subrack): 18 Kg (39.6 Lb.)
Slots For Service Boards: 16 Optical Switch: 1 To 20-degree ROADM
Wavelength (max): DWDM: 96-ch Max. Rate Per Channel: 200 Gbit/s (OTUC2)
Line Rate: 2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 200 Gbit/s Nominal Working Voltage: -48 V DC/-60 V DC
Maximum Subrack Power Consumption: 2400W Model: TN12MR8V01

Certifications
03030YHP TN12MR8V01 TN12MR8V OSN8800 UPS huawei MR8V 0

Hong Telecom Equipment Service LTD (HongTelecom) is formal distributor of Huawei, ZTE and Emerson. Our team come from Huawei, ZTE, Emerson, CISCO, Alcatel, Ericsson, Fiberhome mostly. So we have established very good cooperative relationship with Huawei, Ericsson, Nokia, NSN, ZTE, Vertiv, Emerson, Fiberhome, Cisco, Juniper, HPE, DELL, Alcatel-Lucent, Nortel, H3C. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.

03030YHP TN12MR8V01 TN12MR8V OSN8800 UPS huawei MR8V 2
Our Company
03030YHP TN12MR8V01 TN12MR8V OSN8800 UPS huawei MR8V 4

Hong Telecom Equipment Service LTD (HongTelecom)  is a leading professional equipment distributor and service provider in telecommunication infrastructure and solution field, and now is extending our business to ICT (Information and Communication Technology) field.

HongTelecom offer full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

Product Introduction

Product Appearance

The huawei Optix OSN 8800

03030YHP TN12MR8V01 TN12MR8V OSN8800 UPS huawei MR8V 6
03030YHP TN12MR8V01 TN12MR8V OSN8800 UPS huawei MR8V 8


DWDM OSN 8800 Universal Platform Subrack OSN8800 UPS


The OptiX OSN 8800 universal platform subrack can be installed in an N63B, N66B, or 19-inch cabinet. The subrack has 16 service slots.

Subracks are the basic working units of the OptiX OSN 8800 universal platform subrack. The OptiX OSN 8800 universal platform subrack can operate with an independent DC or AC power supply. A universal platform subrack supports two mounting options: ETSI cabinet mounting and 19-inch rack mounting.

03030YHP TN12MR8V01 TN12MR8V OSN8800 UPS huawei MR8V 10

1. LAMP TEST Button

2. Indicator/Interface area

3. RESET Button
4. SubRACK_ID LED indicator

5. Board area

6. Fiber cabling area
7. Fan tray assembly

8. Air filter

9. Mounting ear
10. Fiber spool

Product Specification

The Huawei OSN 8800 Universal Platform Subrack Specifications:

OptiX OSN 8800 UPS
Specifications
Dimensions (mm)
442 (W) x 295 (D) x 397 (H)
Number of slots for service boards
16
Optical  Switch
1 to 20-degree ROADM
Wavelength (max)
DWDM: 96-ch
Center wavelength range
DWDM: 1529.16 nm to 1567.13 nm (extended C-band, ITU-T G.694.1)
Max. rate per channel
200 Gbit/s (OTUC2)
Service types supported
SDH, SONET, Ethernet, SAN, OTN, Video
Line rate
2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 200 Gbit/s
Supported pluggable optical modules
eSFP, SFP+, XFP, CFP
Topology
Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring, mesh
Network level protection (OTN)
Optical line protection, intra-board 1+1 protection, client 1+1 protection, SW SNCP, OWSP
Equipment level protection
Power redundancy, fan redundancy, system control and communication board redundancy
Optical power management
ALS, AGC, ALC, APE, IPA, OPA
Synchronization
Synchronous Ethernet clock
IEEE 1588v2
2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source
External time source (1PPS+TOD)
ASON
An OTN network supports the Optical-Layer ASON
Submarine Features
Supports application of extended C band in submarine scenarios.
Nominal working voltage
-48 V DC/-60 V DC
Operation environment
Subrack temperature:
Long-term operation: 5°C (41 °F) to 45°C (113 °F)
Short-term operation: -5°C (23 °F) to 55°C (131 °F)

Relative humidity:
Long-term operation: 5% to 85%
Short-term operation: 5% to 95%
