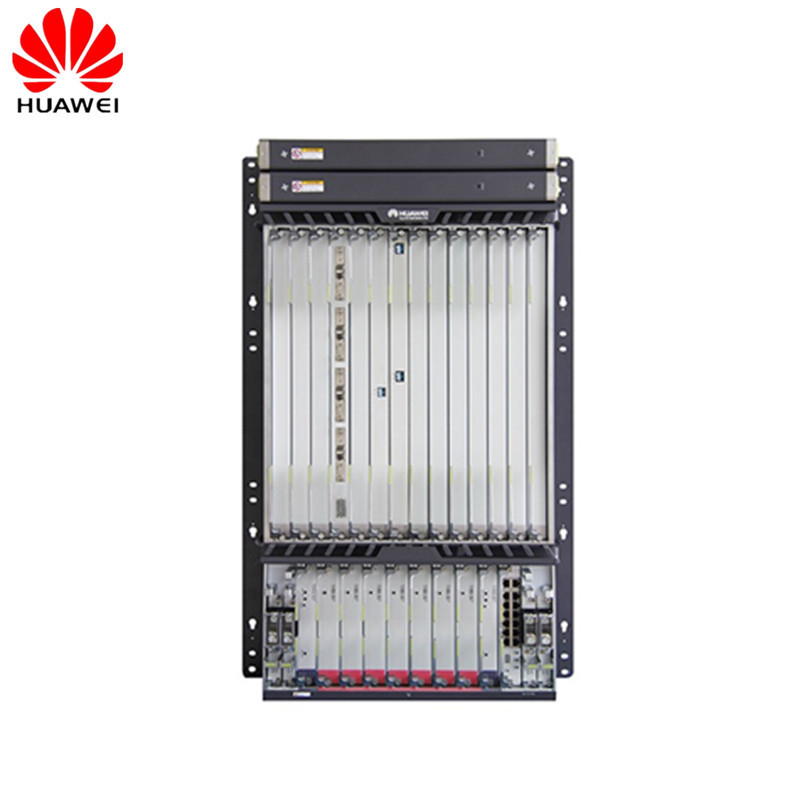

WDM OTN OSN 9800 U16 Transmission equipment Huawei OSN9800 series

Name: WDM OTN OSN 9800 U16 Transmission equipment Huawei OSN9800 series
Brand: Huawei
SKU: OSN 9800 U16
Availability: InStock
ISBN: 13955733

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OSN 9800 U16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

OSN 9800 U16 Dimensions:	847x442x295mm	OSN 9800 U32 Dimensions:	1900x498x295mm
OSN 9800 U64 Dimensions:	2200x600x600mm(with Cabinet)	OSN9800 U16 Installation Rack:	ETSI/19 Inch Rack
OSN9800 U32 Installation Rack:	ETSI 300/600mm Rack	OSN9800 U64 Installation Rack:	ETSI 600mm Rack
Heat Dissipation:	Fan	Power Supply:	-48VDC/-60VDC
Rate Per Channel (Max.):	100G, 200G, 400G, 1T, 2T	Service Types Supported:	SDH, SONET, Ethernet, SAN, OTN, Video

Certifications

Hong Telecom Equipment Service LTD (HongTelecom) is formal distributor of Huawei, ZTE and Emerson. Our team come from Huawei, ZTE, Emerson, CISCO, Alcatel, Ericsson, Fiberhome mostly. So we have established very good cooperative relationship with Huawei, Ericsson, Nokia, NSN, ZTE, Vertiv, Emerson, Fiberhome, Cisco, Juniper, HPE, DELL, Alcatel-Lucent, Nortel, H3C. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.

Our Company

Hong Telecom Equipment Service LTD (HongTelecom) is a leading professional equipment distributor and service provider in telecommunication infrastructure and solution field, and now is extending our business to ICT (Information and Communication Technology) field.

HongTelecom offer full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

Product Introduction

Product Appearance

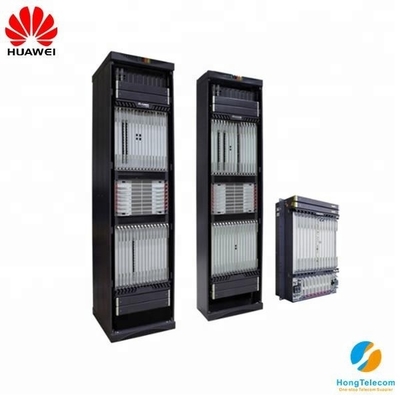

The huawei Optix OSN 9800 U64 U32 U16

Product features

The industry's largest capacity MS-OTN platform, with flexible services grooming

* Provides the industry's largest OTN cross-connect capacity. The OptiX OSN 9800 can currently offer 25.6 Tbit/s congestion free cross-connections. In the future, this can be expanded to over 100 Tbit/s by using a cluster solution. The large cross-connect capacity of the OptiX OSN 9800 enables the flexible grooming of massive services.

* Provides large-capacity OTN electrical cross-connections and 20-degree ROADM optical cross-connections, improving network flexibility by enabling wavelength-level and sub wavelength-level grooming and quick service deployment.

* Implements unified access, switching, and transmission of OTN, VC, and packet services using a universal switching matrix based on the industry-leading Tbit/s universal switching chip.

* Improves network flexibility by supporting service switching, grooming, and transmission within a node in any format, including PW, LSP, Ethernet, ODUk, and VC.

* Provides an industry's only 100G universal line board and 100GE tributary board that supports L2 functions, enabling the efficient transmission of IP services.

Optimal 100G/400G transmission technology, meeting future bandwidth requirements

* Uses industry-leading super 100G technology to implement up to 7000 km transmission without electrical regeneration.

* Features the highest integration in the industry. A single slot of the OptiX OSN 9800 U series supports a maximum of four 100G coherent line optical ports, and each subrack can provide up to 256 100GE ports on the client side. This ultra-high integration saves equipment room space and reduces energy consumption.

* Achieves the industry's first commercial use of 200G/400G and supports evolution to 1T/2T in the future.

Open and flexible network based on TSDN

* Supports smooth evolution to flexible optical networks based on TSDN architecture. Implements programmable control on the coding format, FEC type, number of carriers, and spectral width to meet the transmission rate and distance requirements in various application scenarios and to provide optimal network performance.

* Supports various apps and innovative services, and implements intelligent network management and the unified grooming of cross-layer and cross-domain network resources.

Energy-Saving and Easy Maintenance, Improving O&M Efficiency

* Features refined and dynamic energy saving mechanisms, highly integrated ASIC chips. Advanced energy saving technologies, such as intelligent warm backup, are highly efficient and greatly reduce power consumption.

* Provides a unique Optical Doctor (OD) system that monitors online OSNR for any wavelength (10G/40G/100G/200G/400G) at any site. The OD system supports quick deployment and fault isolation, avoids investment in expensive instrument, and reduces maintenance costs.

* Supports the online OTDR function by an OSC board, which measures fiber parameters and rapidly locates fault points and deterioration points on a fiber.

* Provides an advanced bandwidth resource platform, enabling visible, simple, and intelligent O&M. This platform is easy to use, displays the current bandwidth distribution on a visible interface, automatically evaluates bandwidth trends, reports alarms if the bandwidth is insufficient, and supports user-friendly human-computer interaction.

* Uses a unique intelligent power supply pool and the "pay as you grow" mode, supporting visible power supply management on the NMS to achieve on-demand power allocation and expansion.

* Supports the transmission of 2M, IEEE 1588v2, and synchronous Ethernet clocks to fully satisfy the clock precision requirements on 3G, 4G, and future 5G networks.

Product Specification

The Huawei OptiX OSN 9800 Specifications:

Specifications		OSN 9800 U16	OSN 9800 U32	OSN 9800 U64
Dimensions (HxWxD)		847x442x295mm	1900×498x295mm	2200x600x600mm(with cabinet)
Number of Service Slots		14	32	64
Switching Capability	Optical	Up to 20-degree C-D-C-G ROADM
	Electrical	5.6Tbit/s universal switching	6.4 /12.8Tbit/s universal switching	12.8/25.6Tbit/s universal switching
Number of Ports	Max OTU4 Ports	28/56	64/128	128/256
	Max 100GE Ports	28/56	64/128	128/256
	Max OTU3 Ports	28	64	128
	Max 40GE Ports	28	64	128
	Max OTU2 Ports	280	640	1280
	Max 10G Ports	280	640	1280
	Max GE/2.5G Ports	420	960	1920
	Max OTUC2 Ports	14	32	64
	Max OTUC4 Ports	7/14	16/32	32/64
Channel Spacing		50/100GHz fixed grid for 40/80-ch
		Flex-grid
Wavelength Range		DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1)
Rate per Channel (Max.)		100G, 200G, 400G, 1T, 2T
Service Types Supported		SDH, SONET, Ethernet, SAN, OTN, video
Topology		Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh
Redundancy and Protection	Equipment	1+1 power input protection, 1+1 fan protection, M:N switch board protection, 1+1 controller protection
	Network	OTN: Optical line protection, client 1+1 protection, ODUk SNCP, tributary SNCP, intra-board 1+1 protection,LPT, ASON/GMPLS PKT: PW APS, Tunnel APS, LAG
Optical Power Management		ALS, AGC, ALC, APE, IPA
Synchronization		IEEE 1588v2, Sync-E
		2Mbit/s or 2MHz (with the SSM function), ITU-T G.703-compliant external clock source
		External clock source (1PPS+TOD)
ASON/GMPLS		Automatic network discovery
		ODUk/λ level protection and restoration
		5-Level SLA (Service Level Agreement) provisioning
		End-to-end service configuration
		Shared Risk Link Group (SRLG)
		Traffic engineering
T-SDN		Automation, IP+Optical , BOD
Installation Rack		ETSI/19 inch rack	ETSI 300/600mm rack	ETSI 600mm rack
Heat Dissipation		Fan
Power Supply		-48VDC/-60VDC
Operation Environment		Temperature: Long-term operation: 5°C to 40°C Short-term operation: -5°C to 45°C
		Relative humidity: Long-term operation: 5% to 85% Short-term operation: 5% to 90%
