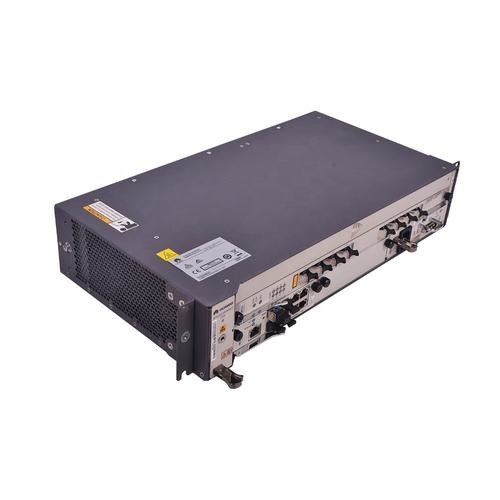

SmartAX MA5608T MA5600T Huawei Access Network GPON OLT 4 Port

SmartAX MA5608T MA5600T Huawei Access Network GPON OLT 4 Port

  • SmartAX MA5608T MA5600T Huawei Access Network GPON OLT 4 Port
SmartAX MA5608T MA5600T Huawei Access Network GPON OLT 4 Port
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: GPON OLT 4 PON Port
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Application: Optical Network Access FTTH FTTB FTTC FTTX Optional Model: Huawei GPON OLT 4 PON Port
Warranty: 1 Year MA5608T Access Capacity: 48*10G GPON ; 96*GPON; 288*GE
MA5608T Maximum Uplink Port: 4*GE ; 4*10GE; 4 PON Ports Optional Uplink Board: MCUD 1G Uplink; MCUD1 10G Uplink.
Power Supply: MPWD AC; MPWC DC; Condition: 100% New And Original
GPON Ports: 8-ports Or 16-ports NMS U2000: Supported
High Light:

MA5600T Huawei Access Network


MA5608T GPON OLT 4 Port


MA5600T GPON OLT 4 Port

Huawei SmartAX MA5608T MA5600T GPON OLT 4 PON Port


Compact and modular design
 *  2 RU, 19” rack mounting,12” depth.

I/O Slots:
 *  2 slots for service cards, 2 slots for switch and control cards, 1 slot for redundant power input.

Switch and control card with uplink ports:

  * 60 Gbps switch card with integrated 2 port 10GbE and 2 port 1GbE WAN uplinks.

Large capacity in Small Size –

  * 200 Gbps backplane

  * 20 Gbps/slot capacity

  * 120 Gbps load sharing switching capacity

  * 2x10 Gbps uplink capacity

Advanced Layer 2 Functions:

  * QoS with traffic classification and L2 forwarding policy

  * Standard VLAN, QinQ VLAN, VLAN stacking

  * Flexible QinQ VLAN tagging

  * DHCP Option 82 in L2 mode

  * MEF-9 & MEF-14 certification

L3 Functions for maximum deployment flexibility

  * ARP, ARP proxy

  * DHCP relay, DHCP proxy

  * Static routing

  * Dynamic routing: RIP, OSPF, ECMP

  * Multicast: IGMP v2/v3, IGMP proxy, IGMP snooping

High Reliability

  * WAN uplink redundancy: BFD, MSTP, LACP, RSTP, RRPP Fiber redundancy with 50ms switchover

  * Carrier Class Availability: Dual switch and control card, dual power input, PON port redundancy

Product Specification

The Huawei OLT GPON MA5600T Series Specifications:




 MA5600T Chassis (10U): 530mm×275.8mm×447.2 mm

 MA5603U Chassis (8U): 352.8mm×305mm×536mm

 MA5608T Chassis (2U): 442mm×233.5mm×88.1mm

Power Supply

 MA5600T/MA5603U: -48V or -60V DC powering via redundant power feeds, working voltage range: -38.4V to -72V

 MA5608T supports both DC/AC power supply mode and supports dual power protection and battery backup while using the AC power; DC: -38.4VDC to -72VDC; AC: 100V to 240V

Running Environment

 MA5600T ambient working temperature : -25C to +55C

 MA5603U/MA5608T ambient working temperature : -40C to +65C; -40º F to +149º F

GPON Features of MA5608T

• 16 ports per card or 8 ports per card

• Robust Compliance to G.984 Series standards with 2.5/1.2 Gbps downstream and 1.2Gbps line

speed performance

•  Support for B+ or C+ optical modules (SFPs) with max 40km differential distance

•  Up to 1:128 split ratio per GPON port

•  Optical Power Monitoring, Real Time Rogue ONT detection/isolation

XG-PON1 Features of MA5608T

•  4 ports per card

•  Fully compatible with GPON - compliance G.987 Series standards with 10/2.5 Gbps line speed


•  Supports XFP optical modules

VDSL2+POTS Combo of MA5608T

•  48 VDSL2 and POTS integrated ports with up to 17a profile

•  Two-pair bonding for maximum speed

•  G.INP (G.998.4) support for re-transmission at the physical layer

•  Built-in support for SELT, DELT, and MELT

•  POTS line Loop-Start Operation

•  Ringing Mode – Balanced ringing with -15VDC offset on “Ring”

•  Multiple CODECs – G.711 (µ-Law and A-Law), G.729, G.723, G.726
