RTN 950A APM30H(Ver.E,-48VDC,TMC11H,DBS3900) APMB303E0491 APMB303E0492

Name: RTN 950A APM30H(Ver.E,-48VDC,TMC11H,DBS3900) APMB303E0491 APMB303E0492
Brand: Huawei
SKU: RTN 950A
Availability: InStock
ISBN: 13956572

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	RTN 950A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Model:	APMB303E0491 APMB303E0492	RTN 950A Chassis:	2U
Channel Spacing:	3.5/7/14/28/40/50/56MHz	Maximum Throughput:	> 600Mbps
Working Temperature:	IDU -5℃~+60℃ ; ODU -35℃~+55℃	Relative Humidity:	IDU 5%~95% ,ODU 5%~100%
DC Power:	-38.4V ~ -57.6V	AC Power:	220V

Product Overview

RTN 950A APM30H(Ver.E,-48VDC,TMC11H,DBS3900) APMB303E0491 APMB303E0492

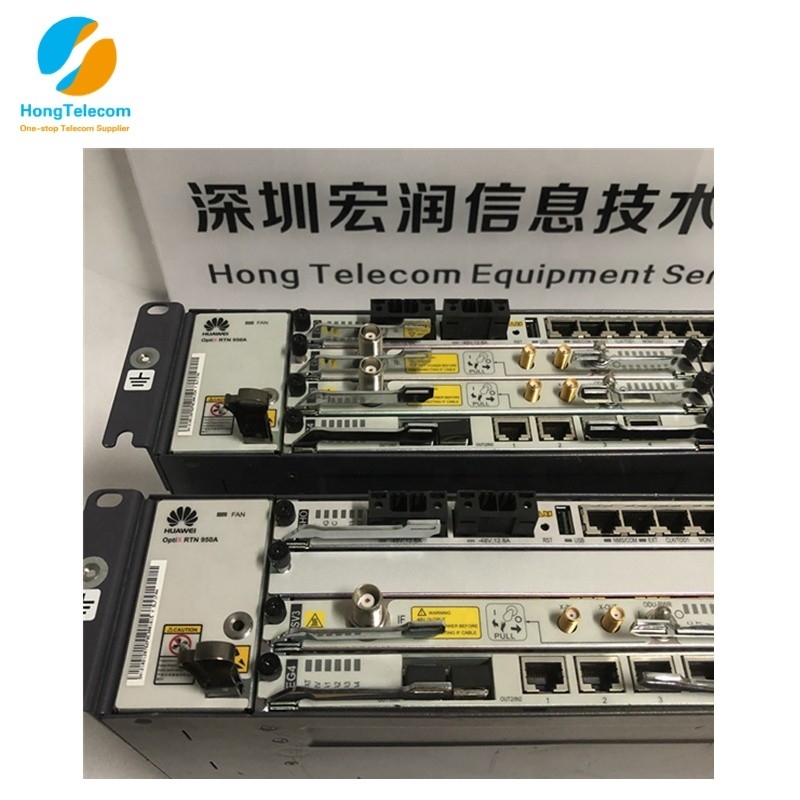

The OpitX RTN 950A is a new generation integrated microwave transmission system developed by Huawei, which can be installed easily and configured flexibly.

It supports the convergence of up to 10 radio links, and supports multiple protection schemes. The OptiX RTN 950A provides a generic platform for TDM/Hybrid/Packet/Routing microwave transmission. The platform provide various service interfaces, large bandwidth, and easy scalability. It provides a seamless microwave transmission solution for mobile communication network or private networks.

The OpitX RTN 950A adopts a modular chassis with 2 U height. It belongs to Huawei RTN 900 split IP microwave series that consist of an indoor unit (IDU) and an outdoor unit (ODU). The OpitX RTN 950A provides six slots to flexibly support multiple service boards and convergence of up to 10 radio directions.

BOM	Model	Description
IDU
Subrack
02113821	SLFB1CASE	RTN 950A Assembly Chassis(-48V)
Common Unit
03021PFK	SL91ISV3	Versatile IF Board
88031FHQ	SL9S00XPIC01	ISV3 XPIC Kit (Per IF)
03022VHK	SL91ISM6	Versatile Dual IF Board
03020RES	SL9D000AUX01	Assistant Channel Interface Board
Software
Quotation & Charge Item Collection
88034FCN	SLFS00V1R1000	RTN 950A Basic Software Package,V100R010(Per Subrack)
88031RGT	SLFSUPDATE01	RTN 950A,Software Release Entitlement(Per Subrack,R(N)->R(N+1))
88031EET	SLASUPDATE02	ODU Software Upgrade Fee
Outdoor Cabinet System
02113690	QWMB0OMBAC00	OMB Cabinet (Ver.C, 220V/110V AC)
02113691	QWMB0OMBDC00	OMB Cabinet (Ver.C, -48V DC)
02114555	APMB303E0491	APM30H(Ver.E,-48VDC,TMC11H,DBS3900)
02114668	APMB303E0492	APM30H (Ver.E,-48VDC,TMC11H,DBS3900)
01072956	APM303E2211	APM30H Cabinet(Ver.E,220VAC,DBS3900)
01073052	APMB303E2212	APM30H Cabinet(Ver.E,220VAC,DBS3900)
21030116	QCUBBBULIG01	Lightning Arrester Box
03020FED	WD2D00UELP00	Universal E1/T1 Lightning Protection unit
03022KNY	WD2D0UFLPC00	Universial FE or GE Lightning Protection Unit

Components

The OptiX RTN 950A adopts a split structure. The system consists of the IDU 950A and the ODU. Each ODU is connected to the IDU 950A through an IF cable.

IDU 950A

The IDU 950A is the indoor unit for an OptiX RTN 950A system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.

Item	Description
Chassis height	2U
Pluggable	Supported
Number of radio directions	1 to 10
RF configuration mode	N+0 non-protection configuration Nx(1+0) non-protection configuration 1+1 protection configuration N+1 protection configuration XPIC configuration
Service interface type	Native E1 interface Smart E1 interface T1 interface STM-1 optical/electrical interface FE optical/electrical interface GE optical/electrical interface 2.5GE optical interface 10GE optical interface

ODU
The ODU is the outdoor unit for the OptiX RTN 900. It converts frequencies and amplifies signals.

RTN XMC ODUs that the OptiX RTN 950A supports

ODU type	Frequency band	Highest-order Modulation	Channel spacing
XMC-2	6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz	2048QAM (13/15/18/23/38 GHz, 7/8 GHz XMC-2E) 1024QAM (6/10/10.5/11/26/28/32/42 GHz) 256QAM (7/8 GHz Normal)	3.5/7/14/28/40/50/56 MHz
XMC-2H	6/7/8/11 GHz	2048QAM	7/14/28/40/56 MHz
XMC-3	7/8/11/13/15/18/23/26/28/32/38 GHz	4096QAM(7/8/11/13/15/18/23/26 GHz) 2048QAM (28/32/38 GHz)	3.5/7/14/28/40/56 MHz (7/8/11/13/15/18/23/26/28/38 GHz) 3.5/7/14/28/40/56/112 MHz (32 GHz)
XMC-3W	7/8/13/18/15/23 GHz	4096QAM	3.5/7/14/28/40/56 MHz

RTN 600 ODUs that the OptiX RTN 950A supports

Item	High-Power ODU	Standard Power ODU
ODU type	HP, HPA	SP, SPA
Frequency band	6/7/8/10/10.5/11/13/15/18/23/26/28/32/38 GHz (HP) 6/7/8/11/13/15/18/23 GHz (HPA)	7/8/11/13/15/18/23/26/38 GHz (SP ODU) 6/7/8/11/13/15/18/23 GHz (SPA ODU)
Highest-order Modulation	256QAM	256QAM
Channel spacing	7/14/28/40/56 MHz (6/7/8/10/11/13/15/18/23/26/28/32/38 GHz) 7/14/28 MHz (10.5 GHz)	3.5/7/14/28 MHz
