RTN 905 microwave transmission IDU 905 1E

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OptiX RTN 905

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

OptiX RTN 905 Chassis:	1U	RF Configuration Mode 1:	1+0
RF Configuration Mode 2:	1+1 HSB/FD/SD (NE Cascading)	RF Configuration Mode 3:	XPIC (NE Cascading)
ODU Type 1:	XMC-2	ODU Type 2:	XMC-2H
ODU Type 3:	XMC-3	ODU Type 4:	XMC-3W

Product Overview

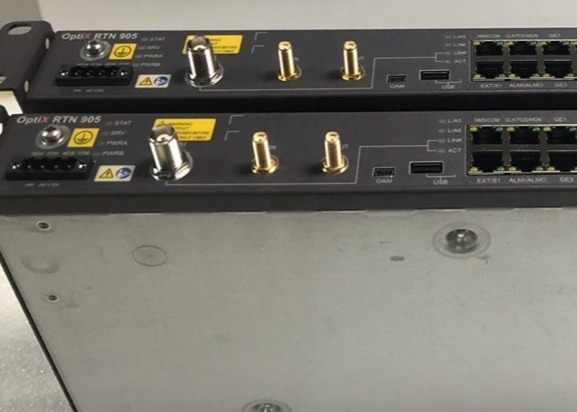

OptiX RTN 905 microwave transmission IDU 905 1E

BOM	Model	Enhanced Combining and Distribution Unit
52440746	EHD0AA301	Microwave Accessory,Coupler,6G,UDR70,3dB XMC,With English doc
52440559	EHD0CB301	Microwave Accessory,Coupler,7&8G,UBR84,3dB XMC,With English doc
52440645	C11B03RRC	Microwave Accessory,Coupler,10/11G,UBR100,3dB XMC,With English doc
52440570	EHD0FD301	Microwave Accessory,Coupler,13G,UBR120,3dB XMC,With English doc
52440561	EHD0GE301	Microwave Accessory,Coupler,15G,UBR140,3dB XMC,With English doc
52440572	EHD0HF301	Microwave Accessory,Coupler,18G,UBR220,3dB XMC,With English doc
52440563	EHD0IF301	Microwave Accessory,Coupler,23G,UBR220,3dB XMC,With English doc
52440597	EHD0JF301	Microwave Accessory,Coupler,26G,UBR220,3dB XMC,With English doc
52440714	EHD0KG301	Microwave Accessory,Coupler,28G,UBR320,3dB XMC,With English doc
52440716	EHD0LG301	Microwave Accessory,Coupler,32G,UBR320,3dB XMC,With English doc
52440599	EHD0MG301	Microwave Accessory,Coupler,38G,UBR320,3dB XMC,With English doc
52440637	EHD0NH301	Microwave Accessory,Coupler,42G,UG383/U-R400,3dB XMC,With English doc

Technical Specifications

The OptiX RTN 905 adopts a split structure. The system consists of the IDU 905 and the ODU. Each ODU is connected to the IDU 905 through an IF cable.

IDU 905
The IDU 905 is the indoor unit for an OptiX RTN 905 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.

IDU 905 Item	Description
Chassis height	1U
Extended subcard	Supported
The maximum number of radio directions	20
Service interface	4 x GE electronic interface 4 x GE/FE optical interface or GE electrical interface (SFP)b 2 x 2.5GE optical interface(SFP+/SFP)c 16 x E1 interface 1 x multifunction cascading interfacea, b 1 x E1 services cascading interfaceb 2 x STM-1 interface
Radio type	Integrated IP radio (E1 + Ethernet) Integrated IP radio (STM-1 + Ethernet) SDH radio
Highest modulation	2048QAM
Number of radio directions	1
RF configuration mode	1+0 1+1 HSB/FD/SD (NE cascading) XPIC (NE cascading)

ODU
The ODU is the outdoor unit for the OptiX RTN 900. It converts frequencies and amplifies signals.
The OptiX RTN 900 product series can use the RTN 600 ODU and RTN XMC ODU, covering the entire frequency band from 6 GHz to 42 GHz.

RTN XMC ODUs that the OptiX RTN 905 supports

ODU type	Frequency band	Highest-order Modulation	Channel spacing
XMC-2	6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz	2048QAM (13/15/18/23/38 GHz, 7/8 GHz XMC-2E) 1024QAM (6/10/10.5/11/26/28/32/42 GHz) 256QAM (7/8 GHz Normal)	3.5/7/14/28/40/50/56 MHz
XMC-2H	6/7/8/11 GHz	2048QAM	7/14/28/40/56 MHz
XMC-3	7/8/11/13/15/18/23/26/28/32/38 GHz	2048QAM	7/14/28/40/56 MHz (7/8/11/13/15/18/23/26/28/32/38 GHz)
XMC-3W	7/8/13/18/15/23 GHz	2048QAM	7/14/28/40/56 MHz

RTN 600 ODUs that the OptiX RTN 905 supports

Item	High-Power ODU	Standard Power ODU
ODU type	HP, HPA	SP, SPA
Frequency band	6/7/8/10/10.5/11/13/15/18/23/26/28/32/38 GHz (HP ODU) 6/7/8/11/13/15/18/23 GHz (HPA ODU)	7/8/11/13/15/18/23/26/38 GHz (SP ODU) 6/7/8/11/13/15/18/23 GHz (SPA ODU)
Highest-order Modulation	256QAM	256QAM
Channel spacing	7/14/28/40/56 MHz (6/7/8/10/11/13/15/18/23/26/28/32/38 GHz) 7/14/28 MHz (10.5 GHz)	3.5/7/14/28 MHz
