Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | RTN 380 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Model: | SLESSFPK01 | RTN 380 Dimensions (H X W X D): | 265 X 265 X 65 Mm |
|---|---|---|---|
| Microwave Type 1: | IP Microwave Over Native Ethernet | Microwave Type 2: | Microwave Carrying CPRI Services |
| Frequency Bands: | 71-76 GHz And 81-86 GHz | Channel Spacing: | 62.5 MHz, 125 MHz, 250 MHz, 500 MHz, And 750 MHz |
| RF Configuration Mode 1: | 1+0 Mode | RF Configuration Mode 2: | 2+0 Mode |
| RF Configuration Mode 3: | 1+1 HSB Mode | RF Configuration Mode 4: | Multi-directional Mode |
OptiX RTN 380 Main Equipment :
SLEMSITE01 RTN 380 Low site(250Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE02 RTN 380 High site (250Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE03 RTN 380 Low site (500Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE04 RTN 380 High site (500Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE05 RTN 380 Low site (1000Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE06 RTN 380 High site (1000Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE08 RTN 380 High site (2000Mbps capacity, 1GE interface, 500MHz channel space)
SLEMSITE09, RTN 380 Low site(250Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE10, RTN 380 High site(250Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE11, RTN 380 Low site(500Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE12, RTN 380 High site(500Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE13, RTN 380 Low site(1000Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE14 ,RTN 380 High site(1000Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE15, RTN 380 Low site(2000Mbps capacity, 1GE interface, 500MHz channel space)
SLEMSITE16 ,RTN 380 High site(2000Mbps capacity, 1GE interface, 500MHz channel space)
SLEMSITE17 ,RTN 380 Low site(3000Mbps capacity, 1GE interface, 750MHz channel space)
SLEMSITE18 ,RTN 380 High site(3000Mbps capacity, 1GE interface, 750MHz channel space)
SLEMSITE105, RTN 380 Low site(1000Mbps capacity, 1GE interface, 250MHz channel space),wifi Module
SLEMSITE106, RTN 380 High site(1000Mbps capacity, 1GE interface, 250MHz channel space),wifi Module
SLEMSITE107, RTN 380 Low site(2000Mbps capacity, 1GE interface, 500MHz channel space),wifi Module
SLEMSITE108, RTN 380 High site(2000Mbps capacity, 1GE interface, 500MHz channel space),wifi Module

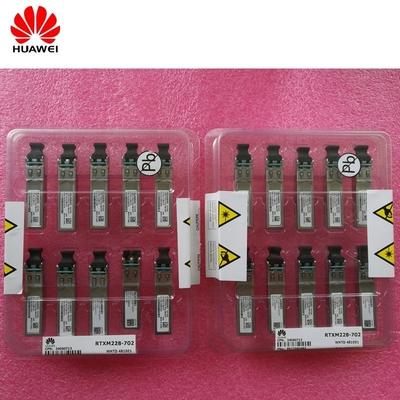

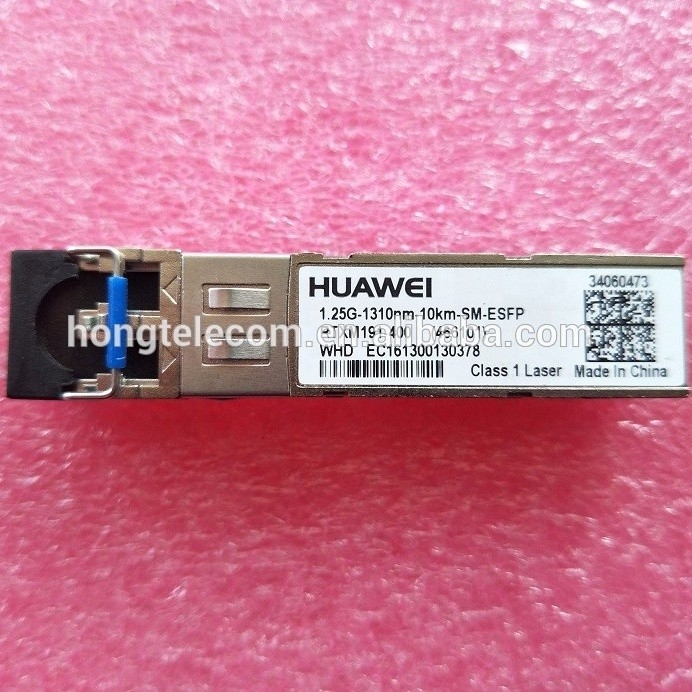

SLESSFPK01, single-mode eSFP kit (for GE or 1.25G CPRI),10km
SLEMSFPK01, multi-mode eSFP kit (for GE or 1.25G CPRI),0.55km
SLESSFPK02, single-mode eSFP kit for 2.5G CPRI,2km
SLESSFPK03, single-mode eSFP kit for 2.5G CPRI,15km
SLEMSFPK02, multi-mode eSFP kit for 2.5GE or 3G CPRI,0.3km
SLESSFPK05, Single-Mode eSFP kit for 2.5GE or 6G CPRI,10km
SLESSFPK04, Single-Mode eSFP kit for 2.5GE or 6G CPRI,2km
Network Positioning
The RTN 380 can provide large-capacity backhaul microwave links or aggregation links on a mobile communications network or a private network, or substitute for optical fibers to transmit CPRI signals between baseband units (BBUs) and remote radio units (RRUs) in a distributed base station system to achieve longer transmission of RRUs.

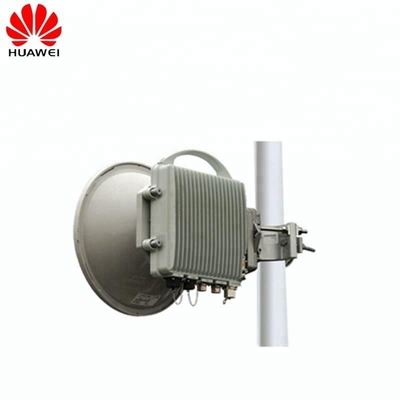

As E-band full outdoor radio equipment, the RTN 380 has the following characteristics:
* The RTN 380 operates at 71-76 GHz or 81-86 GHz frequency bands. It features large capacity, low inter-site interference, and rich frequency spectrum resources, as compared with radio equipment that operates at 6-42 GHz frequency bands. Therefore, RTN 380s can form a backhaul network for base stations densely deployed in a city and provide large-capacity backhaul links for aggregation sites. In addition, the RTN 380 can provide high-bandwidth microwave links for transmitting Ethernet services on a metro optical Ethernet in areas where optical fibers are difficult to lay out.
* As compact full outdoor radio equipment, the RTN 380 integrates all functions in a chassis and does not need an extra installation site. Therefore, it allows carriers to construct and operate networks at lower costs than traditional split radio equipment.
* On a mobile communications network, RTN 380s are mainly used to:
Provide large-capacity backhaul microwave links for 3G/LTE base stations especially those that are densely deployed in urban areas.
* Provide large-capacity aggregation links for 3G/LTE base stations and implement multi-direction aggregation when working with OptiX RTN 900s.
* Provide microwave links between BBUs and RRUs in a distributed base station system to transmit CPRI signals to achieve longer transmission of RRUs.
* Work with the CSG to provide a microwave channel solution for transparent transmission on the IP RAN.
* Work with OptiX RTN 900 to implement the Super Dual Band solution through EPLA. This solution provides high-bandwidth, long-distance, and high-availability backhaul links.
HUAWEI RTN310
HUAWEI RTN360
HUAWEI RTN380
RTN 380 specifications meet the high bandwidth requirements in E-Band microwave transmission. RTN 380 also has unique advantages in maintenance capabilities.
