Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | RTN 980L |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Model: | SL9D0SP3SA01 SL9D0SP3SB01 | RTN 980L Chassis: | 5U |
|---|---|---|---|
| Radio Directions (Long Haul): | 16 | RF Configuration Mode 2: | N+1 Protection (N ≤ 11) |
| RF Configuration Mode 1: | N+0 Non-protection | RF Configuration Mode 3: | 1+1 FD Protection |
| RF Configuration Mode 4: | XPIC Configuration | RFU TYPE: | XMC-LH |
| Frequency Band: | 5/L6/U6/7/8/11 GHz |

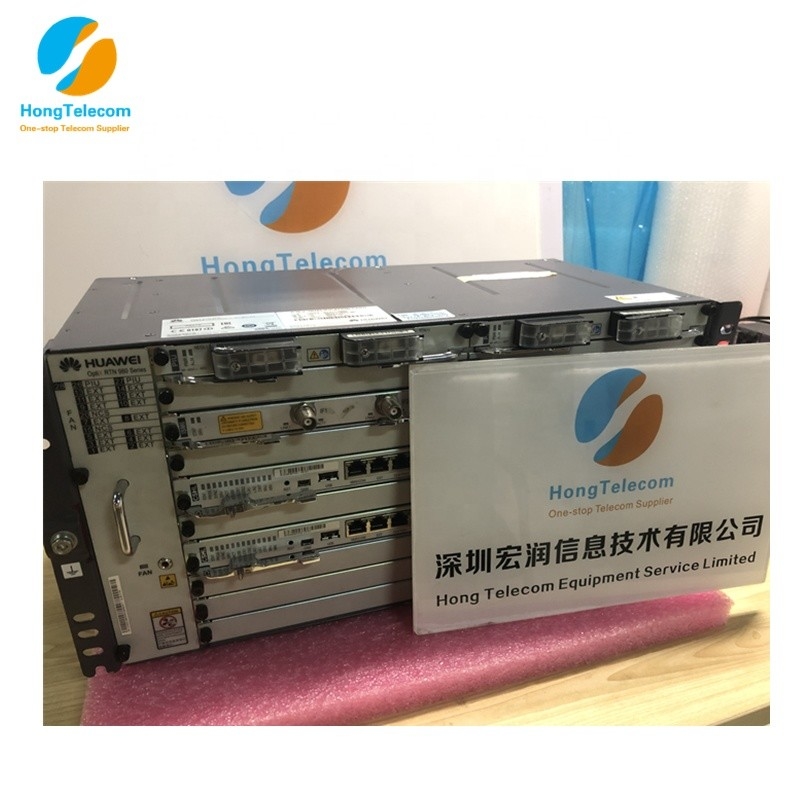

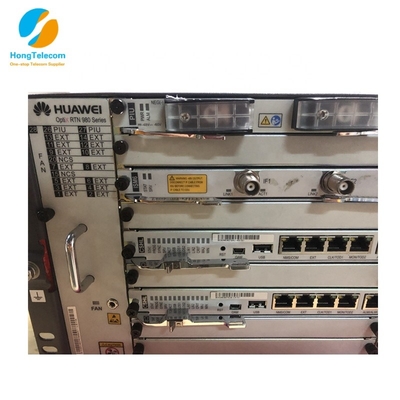

Device Appearance
BOM | Model | SFP Module Collection (STM-1&STM-4) |
34100104 | STM1E-SFP02 | Electrical Active Module-Copper Transceiver,SFP,STM-1e |
34060287 | SFP-FE-SX-MM1310 | SFP,1310nm,STM1,-19~-14dBm,-30dBm,LC,MM,2km |
34060276 | eSFP-FE-LX-SM1310 | eSFP,1310nm,STM1,-15~-8dBm,-28dBm,LC,SM,15km |
34060281 | eSFP-FE-LH40-SM1310 | Optical Transceiver,eSFP,1310nm,STM1,-5~0dBm,-37dBm,LC,SM,40km |
34060282 | eSFP-FE-LH80-SM1550 | Optical Transceiver,eSFP,1550nm,STM1,-5~0dBm,-37dBm,LC,SM,80km |
34060277 | eSFP-1310nm-S-4.1/ESCON SM/DVB ASI SM | eSFP,1310nm,STM4,-15~-8dBm,-30dBm,LC,SM,15km |
34060280 | eSFP-1310nm-L-4.1 | Optical Transceiver,eSFP,1310nm,STM4,-3~2dBm,-30dBm,LC,SM,40km |
34060284 | eSFP-1550nm-L-4.2 | Optical Transceiver,eSFP,1550nm,STM4,-3~2dBm,-30dBm,LC,SM,80km |
Technical Specifications
IDU 980L
The IDU 980L is the indoor unit of the OptiX RTN 980L Long Haul system. It receives and multiplexes services, performs switching and IF processing of services, and provides system control and communication functions.
IDU 980L Item | Description |
Chassis height | 5U |
Pluggable | Supported |
The maximum number of radio directions (Long Haul) | 16 |
RF configuration mode (Long Haul) | N+0 non-protection N+1 protection (N ≤ 11) 1+1 FD protection XPIC configuration |
Service interface type | E1 interface STM-1 optical/electrical interface STM-4 optical interface FE optical/electrical interface GE optical/electrical interface 2.5 GE optical interface 10 GE optical interface |
RFU
An RFU is the transceiver of the OptiX RTN 980L Long Haul system. It performs functions such as frequency conversion and amplification of signals.
RFUs are available in two types according to support space diversity receiver or not:
1) RFU-SD: space diversity (SD) receiver and IF combination supported. It provides three RF ports: Tx, Main Rx and SD Rx.
2)RFU-NonSD: SD not supported. It provides two RF ports: Tx and Rx. It provides a cost-effective solution for scenarios with relatively good propagation conditions.
RFU supported by the OptiX RTN 980L
Item | Description |
Series type name | XMC-LH |
Frequency band | 5/L6/U6/7/8/11 GHz |
Modulation scheme | QPSK/16QAM/32QAM/64QAM/128QAM/256QAM/512QAM/1024QAM/2048QAM |
Channel spacing | 28/40/56 MHz (5/U6/8/11 GHz) 28/56 MHz (L6/7 GHz) |
RTN 905
RTN 950A
RTN 980
Antenna A13S06HAC,13G
Antenna A18S03HAC,18G
Antenna A15S06HAC,15G
