Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | RTN510 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Model: | RTN 510 | Frequency Band: | 4.910 To 5.970 GHz |
|---|---|---|---|
| Channel Spacing: | 10/20/40/80 MHz | Modulation: | MCS0 (BPSK) To MCS9 (256QAM) |
| AP Switching Capacity: | 200 Mbit/s To 3.8 Gbit/s | RT Switching Capacity: | 100 Mbit/s |
The RTN 510 supports PtP network, 90° PtMP networking and RT relay networking.
BOM | Model | Description | ||
RTN510 MainEquipmet | ||||
02312AAE | SLM1DM31 | RTN510 Microwave,4.91~5.97GHz,AP,with installation material | ||
02312AAG | SLM1DS11 | RTN510 Microwave, 4.91~5.97GHz, RT, antenna integrated, with installation material | ||
SFP Suit | ||||
02230WVY | SLESSFPK01 | single-mode eSFP kit (for GE or 1.25G CPRI),10km | ||
02230WWA | SLEMSFPK01 | multi-mode eSFP kit (for GE or 1.25G CPRI),0.55km | ||
Additional Function | ||||
88034NNA | SLML40MS01 | RTN510 Microwave Basic Capacity License (Up to 40M) (per RT) | ||
88034NNB | SLMULIMS01 | RTN510 Microwave Extended Capacity License (Above 40M) (per RT) | ||
88034NNC | SLMEETMS01 | RTN510 Enhanced Ethernet Traffic Management License (per RT) | ||
88034WMM | SLMEETMS02 | RTN510 Enhanced Ethernet Traffic Management License (Per AP) | ||
88034NPH | SLMAESES01 | RTN510 AES Encryption Function (Per RT) | ||
88034WMG | SLMPTPFS01 | RTN510 PTP Function Enable RTU (Per Antenna) | ||
88034WLY | SLMAESES02 | RTN510 PTP AES Encryption Function (Per AP) | ||

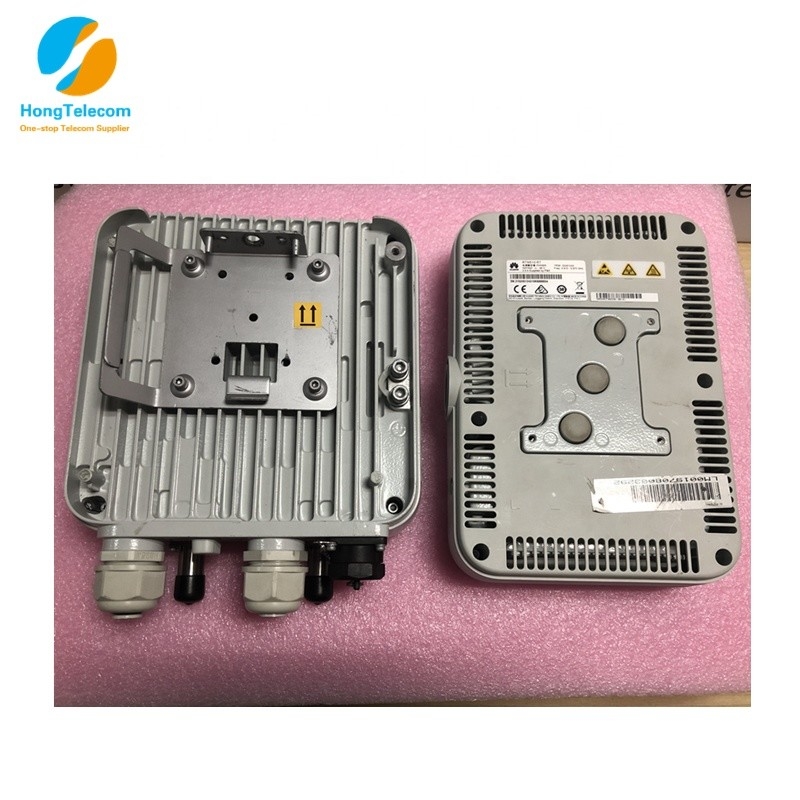

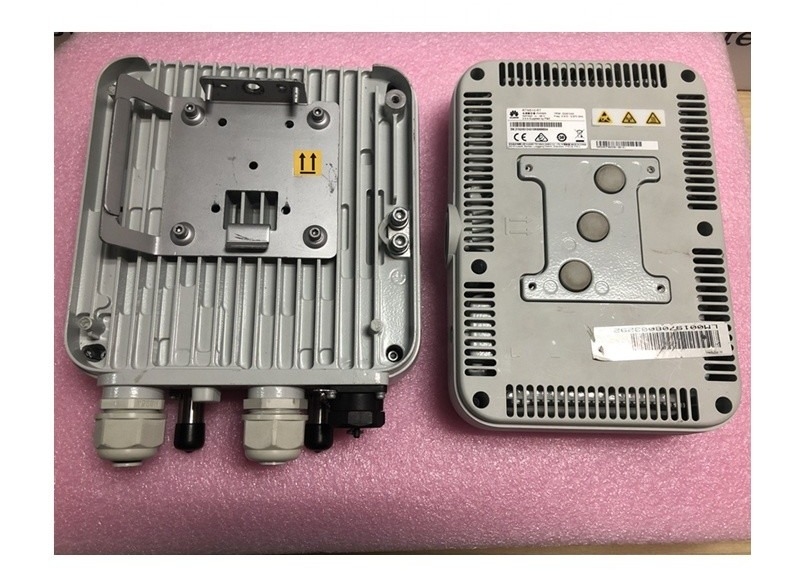

The RTN510 system consists of the access point (AP) and the remote terminal (RT). RTs are highly-integrated outdoor case-shaped devices using a built-in antenna. The RT receives services from terminals and transmits them to the AP. The AP uses an external antenna. It aggregates services from multiple RTs and transmits them to the upper-layer network.
Item | RTN510 Description | ||
AP | RT | ||
Frequency band | 4.910 to 5.970 GHz | 4.910 to 5.970 GHz | |
Channel spacing | 10/20/40/80 MHz | 10/20/40/80 MHz | |
Modulation | MCS0 (BPSK) to MCS9 (256QAM) | MCS0 (BPSK) to MCS9 (256QAM) | |
Switching capacity | 200 Mbit/s to 3.8 Gbit/s | 100 Mbit/s | |
Service port | One GE optical port Two GE electrical ports (one for power over Ethernet (PoE)) | One GE electrical port (for PoE) | |
HUAWEI RTN310
HUAWEI RTN360
HUAWEI RTN380
RTN310 | RTN360 | RTN380 | |||
Support frequency | 13/15/18/23/38GHz | 59-64GHz | 71-86GHz | ||
Channel spacing | 7/14/28/56MHz | 200MHz | 62.5/125/250/500/750MHz | ||
Modulation mode | QPSK Strong~2048QAM Light | 160QAM | QPSK Strong~64 QAM | ||
Throughput | 2Gbps Max | 400Mbps | 4Gbps Max | ||
Business interface | GE | GE | GE, CPRI interface | ||
USB interface | Support | Support | Support | ||
Working environment | Working temperature : -35℃~+55℃ Relative humidity: 5%~100% | ||||
Power supply range | Support Ethernet power supply; Support DC power : -38.4V ~ -57.6V | ||||
Weight | 6kg | 2.5kg | 3.8kg | ||
