Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | RTN510 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Model: | SLM1DM31 | Frequency Band: | 4.910 To 5.970 GHz |
|---|---|---|---|
| Channel Spacing: | 10/20/40/80 MHz | Modulation: | MCS0 (BPSK) To MCS9 (256QAM) |
| AP Switching Capacity: | 200 Mbit/s To 3.8 Gbit/s | RT Switching Capacity: | 100 Mbit/s |
SLM1DS11 RTN510 Microwave, 4.91~5.97GHz, RT, antenna integrated, with installation material
SLESSFPK01 single-mode eSFP kit (for GE or 1.25G CPRI),10km
SLEMSFPK01 multi-mode eSFP kit (for GE or 1.25G CPRI),0.55km
AS6D06HSNS RTN510 Microwave Antenna-N-with bracket-4.9~5.97GHz,16.5dBi
AS6D03SSNF Microwave Antenna-dual polarization-with bracket-4.9~5.97GHz,22dBi
PI-DCB10 OptiX RTN,PI-DC B10,power injector
PI-ACB20 OptiX RTN,PI-AC B20,power injector
PI-DCA11 OptiX RTN,PI-DC A11,power injector
W0ACPSE14 Adapter,-40degC~50degC,90V~264V,54V/0.65A,C8/RJ45,GE
The RTN 510 supports PtP network, 90° PtMP networking and RT relay networking.
Different RF working modes must be configured for the AP and RT that serve as different roles in a network.
PtP Networking
* In PtP networking, microwave links are provided for point-to-point service transmission between two APs, RTs, or an AP and an RT. The PtP networking between two APs, they can be used as wireless bridges.
* In PtP networking, the AP uses panel antennas, and it can also use fan antennas.
* The PtP networking between two APs, one AP works in AP mode and the other works in RT mode.
* In the PtP networking between two RTs, one RT works in RT mode and the other works in Relay mode. This networking primarily applies in RT relay scenarios.
90° PtMP Networking
In PtMP networking, microwave links are provided for point-to-multipoint service transmission between one AP and multiple RTs. A single AP antenna provides a maximum coverage angle of 90°.
RT Relay Networking
When an RT needs to be deployed beyond the maximum distance or there are obstacles between the AP and RT, RT relay networking can be used.
There are buildings between the AP and RT3 that completely block the data transmission between them. To resolve this issue, RT1 and RT2 establish relay nodes for RT3. Data between AP and RT3 is transmitted through RT1 and RT2. RT1 and RT2 are cascaded using the P1's Ethernet port, RT1 works in RT mode, and RT2 works in Relay mode.

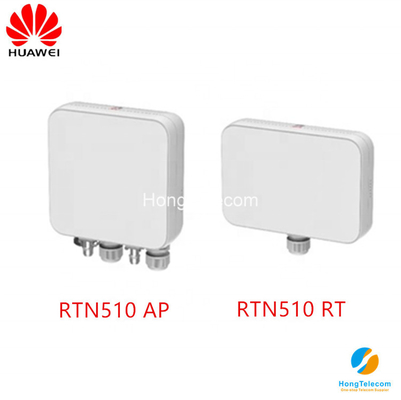

The RTN510 system consists of the access point (AP) and the remote terminal (RT). RTs are highly-integrated outdoor case-shaped devices using a built-in antenna. The RT receives services from terminals and transmits them to the AP. The AP uses an external antenna. It aggregates services from multiple RTs and transmits them to the upper-layer network.
Item | RTN510 Description | ||
AP | RT | ||
Frequency band | 4.910 to 5.970 GHz | 4.910 to 5.970 GHz | |
Channel spacing | 10/20/40/80 MHz | 10/20/40/80 MHz | |
Modulation | MCS0 (BPSK) to MCS9 (256QAM) | MCS0 (BPSK) to MCS9 (256QAM) | |
Switching capacity | 200 Mbit/s to 3.8 Gbit/s | 100 Mbit/s | |
Service port | One GE optical port Two GE electrical ports (one for power over Ethernet (PoE)) | One GE electrical port (for PoE) | |
HUAWEI RTN310
HUAWEI RTN360
HUAWEI RTN380
RTN310 | RTN360 | RTN380 | |||
Support frequency | 13/15/18/23/38GHz | 59-64GHz | 71-86GHz | ||
Channel spacing | 7/14/28/56MHz | 200MHz | 62.5/125/250/500/750MHz | ||
Modulation mode | QPSK Strong~2048QAM Light | 160QAM | QPSK Strong~64 QAM | ||
Throughput | 2Gbps Max | 400Mbps | 4Gbps Max | ||
Business interface | GE | GE | GE, CPRI interface | ||
USB interface | Support | Support | Support | ||
Working environment | Working temperature : -35℃~+55℃ Relative humidity: 5%~100% | ||||
Power supply range | Support Ethernet power supply; Support DC power : -38.4V ~ -57.6V | ||||
Weight | 6kg | 2.5kg | 3.8kg | ||
HUAWEI RTN905
HUAWEI RTN910
HUAWEI RTN950A
HUAWEI RTN980
